SEAT/SEAT COVERS ('80-'81 A1/A2)

KZ550A3 1982 USA CANADA

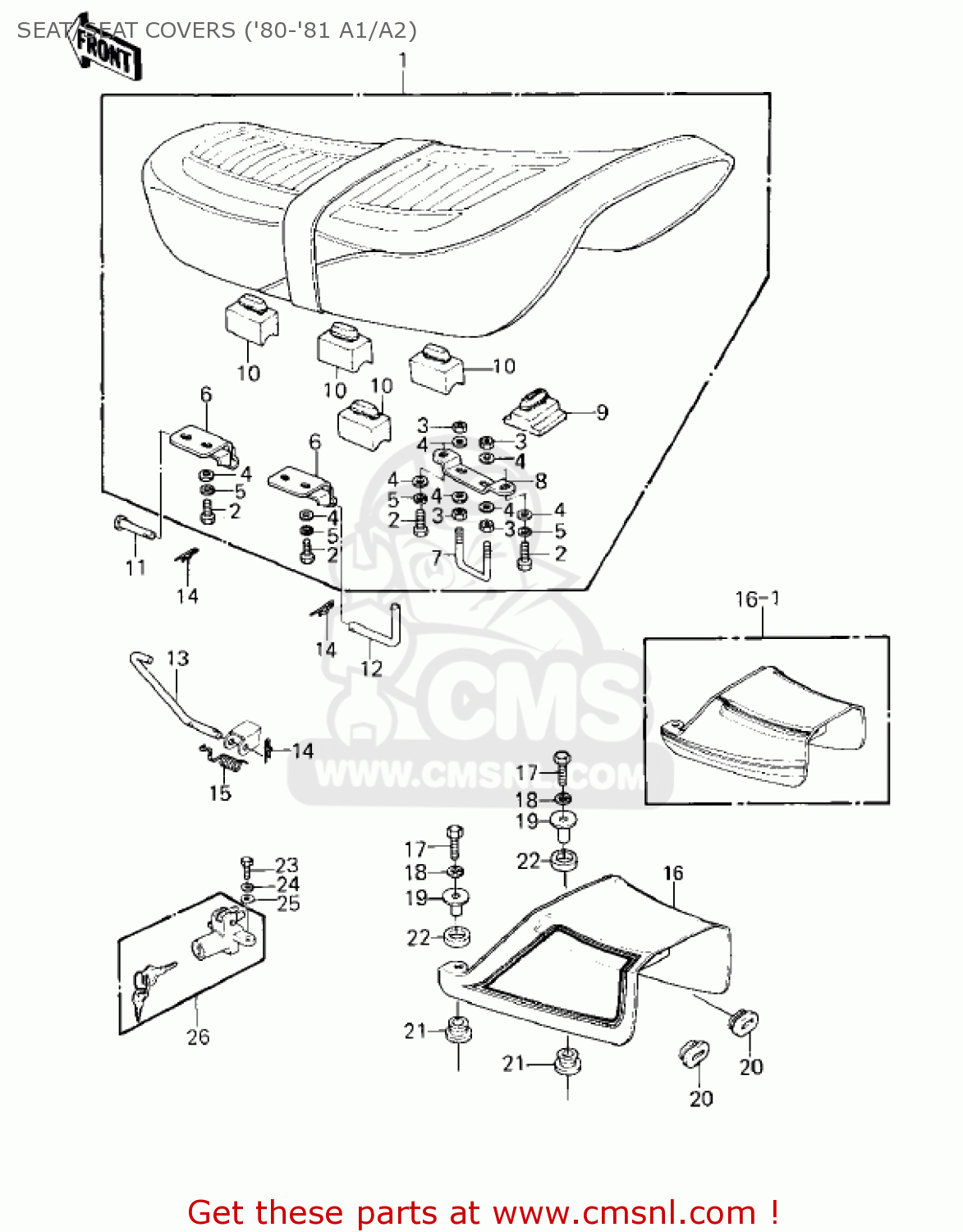

Seat/seat covers ('80-'81 a1/a2) diagram KZ550A3 1982 USA CANADA

SEAT/SEAT COVERS ('80-'81 A1/A2) KZ550A3 1982 USA CANADA

SEAT/SEAT COVERS ('80-'81 A1/A2) KZ550A3 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

530011133
ref: 1
KZ550-A1

SEAT ASSY,DUAL

€ 635.50

1

530011133
ref: 1
KZ550-A2

SEAT ASSY,DUAL

€ 635.50

2

112B0614
ref: 2

BOLT-UPSET 6X14

€ 2.50

3

311B0600
ref: 3

NUT,6MM

€ 0.50

4

411B0600
ref: 4

WASHER-PLAIN,6MM

€ 0.50

5

461F0600
ref: 5

WASHER-SPRING,6MM

€ 0.50

6

530091010
ref: 6

HINGE,SEAT

€ 9.50

7

53056002
ref: 7

HOOK,SEAT

€ 11.50

8

53058001
ref: 8

BRACKET,SEAT CATCH

€ 6.00

9

920751061
ref: 9

DAMPER,SEAT

€ 6.00

10

92075156
ref: 10

DAMPER,SEAT

€ 6.50

11

53011002
ref: 11

PIN,6X48

€ 3.50

12

53011008
ref: 12

PIN,SEAT PIVOT

€ 4.00

13

53054001
ref: 13

STAY,SEAT

€ 7.50

14

554A0600
ref: 14

PIN-SNAP,SIDE STAND

€ 0.50

15

920811053
ref: 15

SPRING,SEAT HOOK

€ 8.50

16

1402550238G
ref: 16
KZ550-A1

COVER,SEAT,EBONY

€ 144.50

16-1

140251046D9
ref: 16-1
KZ550-A2

COVER-SEAT,L.P.RED

€ 164.00

17

112B0622
ref: 17

BOLT, 6X22

€ 2.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

92027251
ref: 19

COLLAR,L=13.1

€ 1.00

20

92071072
ref: 20

GROMMET

€ 7.00

21

92075174
ref: 21

DAMPER,MALE

€ 3.00

22

92075175
ref: 22

DAMPER,FEMALE

€ 2.50

23

112B0614
ref: 23

BOLT-UPSET 6X14

€ 2.50

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

411B0600
ref: 25

WASHER-PLAIN,6MM

€ 0.50

26

270165010
ref: 26

LOCK-ASSY,SEAT

€ 72.50
