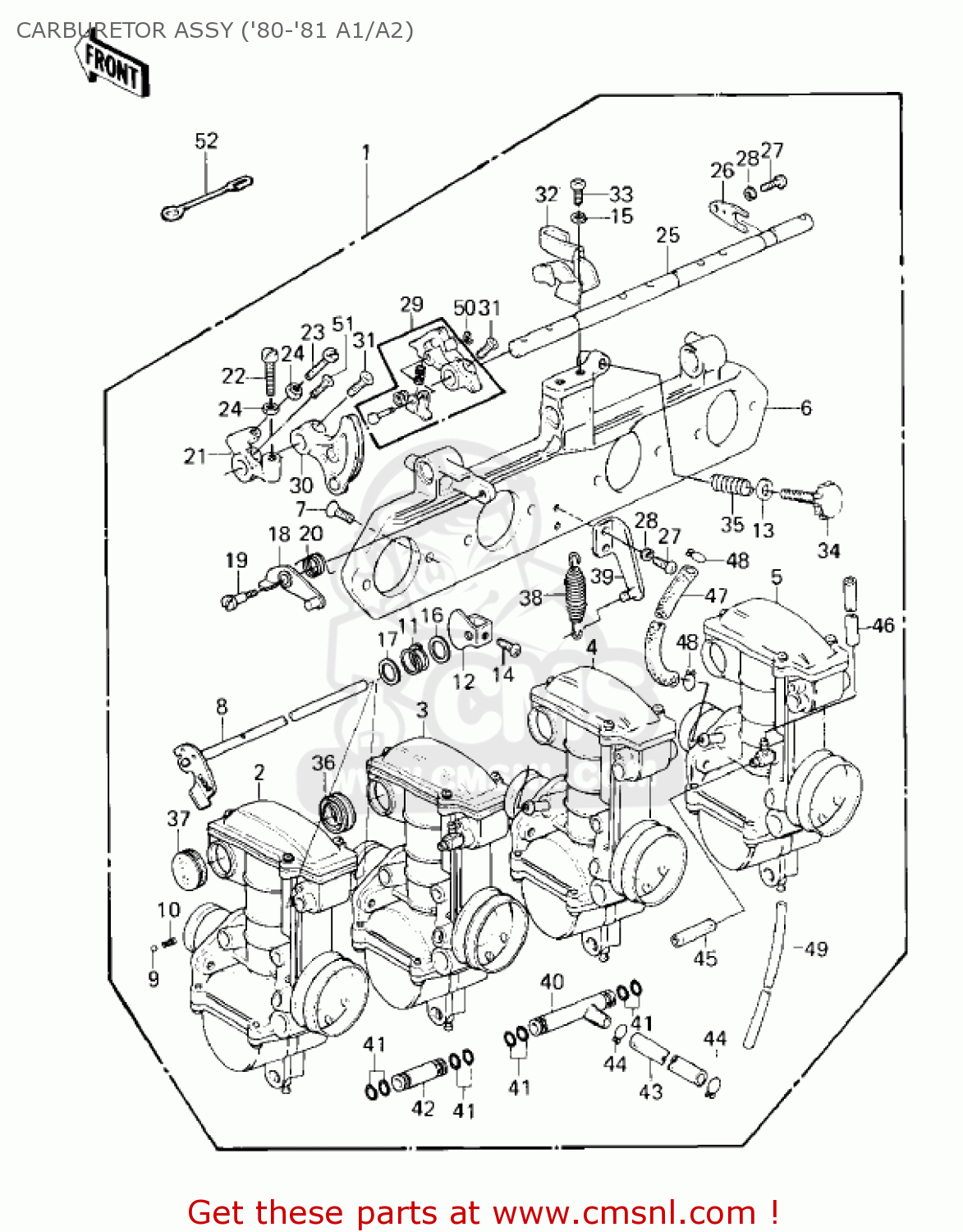

CARBURETOR ASSY ('80-'81 A1/A2)

ref

part #

description

quantity

1

160011210
ref: 1

CARBURETOR ASSEMBLY

€ 826.00

1

160011285
ref: 1
USE FOR CANADA MARKE

CARBURETOR ASSY

€ 1,742.00

2

160011255
ref: 2
USE FOR 16001-1210

CARBURETOR,OUTSIDE,LH

€ 190.50

2

160011305
ref: 2
USE FOR 16001-1285

CARBURETOR,L.H,OUTSID

€ 245.50

3

160011254
ref: 3
USE FOR 16001-1210

CARBURETOR,INSIDE,LH

€ 190.50

3

160011306
ref: 3
USE FOR 16001-1285

CARBURETOR,L.H,INSIDE

€ 245.50

4

160011253
ref: 4
USE FOR 16001-1210

CARBURETOR,INSIDE,RH

€ 190.50

4

160011307
ref: 4
USE FOR 16001-1285

CARBURETOR,R.H,INSIDE

€ 245.50

5

160011252
ref: 5
USE FOR 16001-1210

CARBURETOR,OUTSIDE,RH

€ 182.00

5

160011308
ref: 5
USE FOR 16001-1285

CARBURETOR,R.H,OUTSID

€ 234.00

6

110341588
ref: 6

BRACKET,CARBURETOR

€ 80.50

7

221B0616
ref: 7

SCREW-CNTSNK HD,6X16

€ 0.50

8

160411021
ref: 8

SHAFT,CHOKE LEVER

€ 21.00

9

600A0500
ref: 9

BALL-STEEL,5/32

€ 0.50

10

920811195
ref: 10

SPRING,CHOKE LEVER

€ 1.50

11

920811191
ref: 11

SPRING,CHOKE LEVER

€ 4.50

12

490601002
ref: 12

CAM,CHOKE

€ 8.00

13

411B0600
ref: 13

WASHER-PLAIN,6MM

€ 0.50

14

220B0408
ref: 14

SCREW-PAN-CROS

€ 0.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

920221168
ref: 16

WASHER,CHOKE LEVER SP

€ 3.00

17

920221169
ref: 17

WASHER,CHOKE LEVER

€ 3.00

18

131681053
ref: 18

LEVER

€ 12.50

19

920091081
ref: 19

SCREW,TIMING LEVER

€ 6.50

20

920811192
ref: 20

SPRING,TIMING LEVER

€ 3.00

21

110341590
ref: 21

BRACKET,THROTTLE STOP

€ 10.50

22

920091082
ref: 22

SCREW,TIMING LEVER

€ 3.00

23

920091083
ref: 23

SCREW,THROTTLE OPEN

€ 2.50

24

312B0500
ref: 24

NUT-HEX,5MM

€ 0.50

25

160411012
ref: 25

SHAFT,THROTTLE

€ 65.00

26

110341591
ref: 26

PLATE,THROTTLE SHAFT

€ 5.50

27

220B0514
ref: 27

ACREW-PAN HEAD,5X14

€ 2.50

28

461F0500
ref: 28

WASHER-SPRING,5MM

€ 0.50

29

131681054
ref: 29

LEVER ASSY,THROTTLE

€ 27.00

30

131681055
ref: 30

LEVER ASSY,THROTTLE

€ 27.50

31

221B0514A
ref: 31

SCREW-CNTSNK HD,5X14

€ 2.50

32

110341592
ref: 32

BRACKET,THROTTLE CABL

€ 13.00

33

220B0614
ref: 33

SCREW-PAN HEAD,6X14

€ 2.00

34

160211017
ref: 34

SCREW,THROTTLE ADJUST

€ 12.00

35

920811193
ref: 35

SPRING,ADJUST SCREW

€ 4.50

36

920931033
ref: 36

SEAL,THROTTLE SHAFT

€ 10.00

37

920931034
ref: 37

CAP,THROTTLE SHAFT

€ 8.50

38

920811381
ref: 38

SPRING,THROTTLE RETRN

€ 9.50

39

110341593
ref: 39

BRACKET,THROTTLE SPR

€ 7.50

40

920051020
ref: 40

FITTING,FUEL,T-TYPE

€ 20.50

41

670B1507
ref: 41

O RING,7MM

€ 1.00

42

920051021
ref: 42

FITTING,FUEL,I-TYPE

€ 20.00

44

920371158
ref: 44

CLAMP,FUEL HOSE

€ 4.50

45

920591099
ref: 45

HOSE,AIR VENT,4.5X30

€ 3.50

46

920591100
ref: 46

HOSE,AIR VENT,4.5X300

€ 11.50

47

920591101
ref: 47

HOSE,NEGATIVE,5.4X280

€ 20.00

48

920371159
ref: 48

CLAMP,NEGATIVE HOSE

€ 2.00

49

920591102
ref: 49

HOSE,OVERFLOW,3.5X550

€ 16.50

50

482J3000
ref: 50

CIRCLIP,3M/M

€ 2.00

51

920091080
ref: 51

SCREW,COUNTERSUNK HD

€ 2.50

52

92037134
ref: 52

CLAMP,OVER FLOW PIPE

€ 7.50
