FENDERS ('82-'83 A3/A4)

KZ550A3 1982 USA CANADA

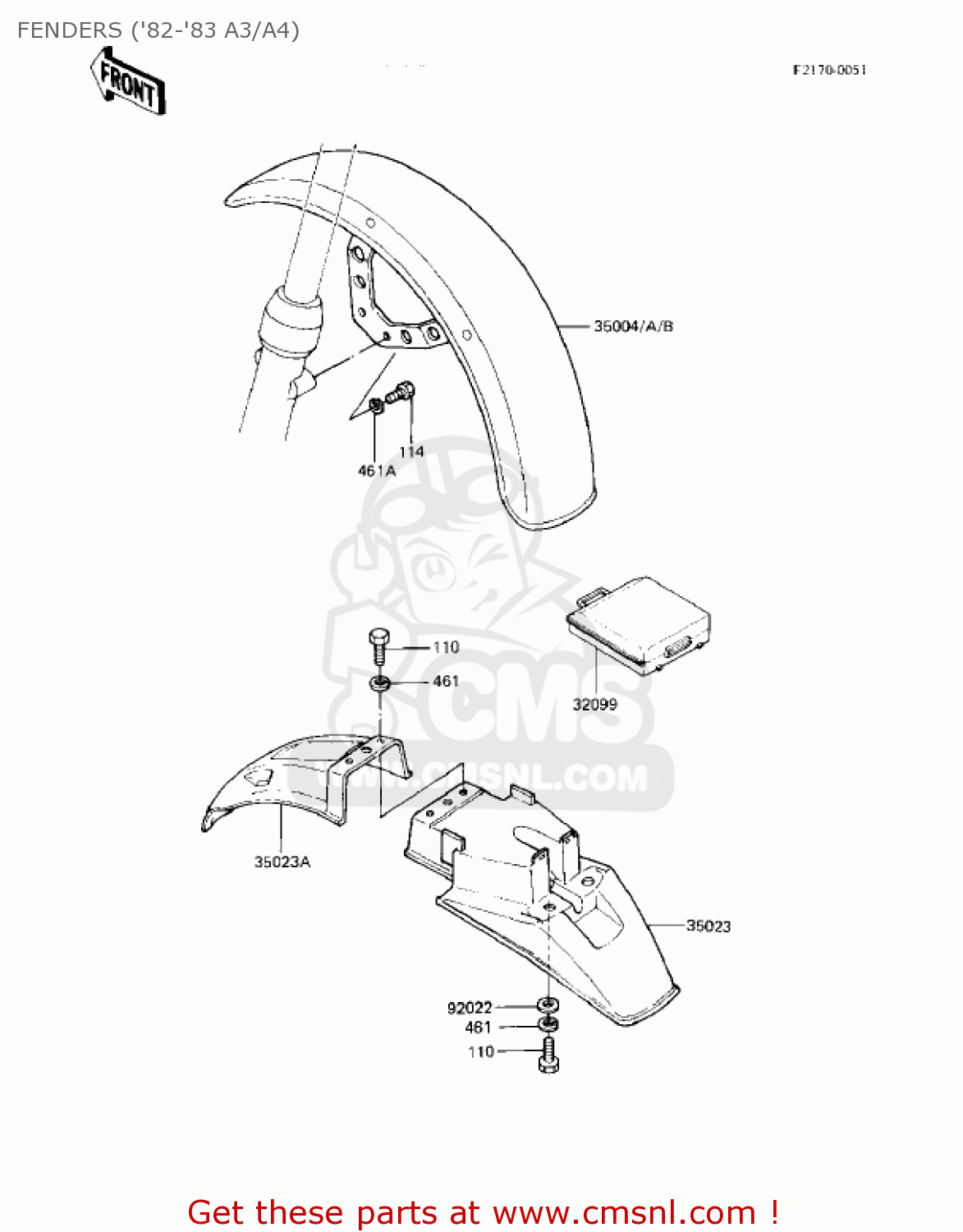

Fenders ('82-'83 a3/a4) diagram KZ550A3 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

32099

320991004
ref: 32099

CASE,MANUAL

€ 26.00

35004

350041023F2
ref: 35004
US

FENDER-FRONT,G.SILVER

€ 108.50

35004A

350041023H8
ref: 35004A

FENDER-FRONT,EBONY

€ 264.50

35004B

3500410238G
ref: 35004B

FENDER,FRONT,EBONY

€ 264.50

35023

3502310076Z
ref: 35023

REAR FENDER,FLAT BLACK

€ 64.00

35023A

350231027
ref: 35023A

FENDER-REAR,FR,BLACK

€ 58.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

110

112G0618
ref: 110

BOLT-UPSET

€ 0.50

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50
