CARBURETOR PARTS (KZ550-A4)
KZ550A3 1982 USA CANADA

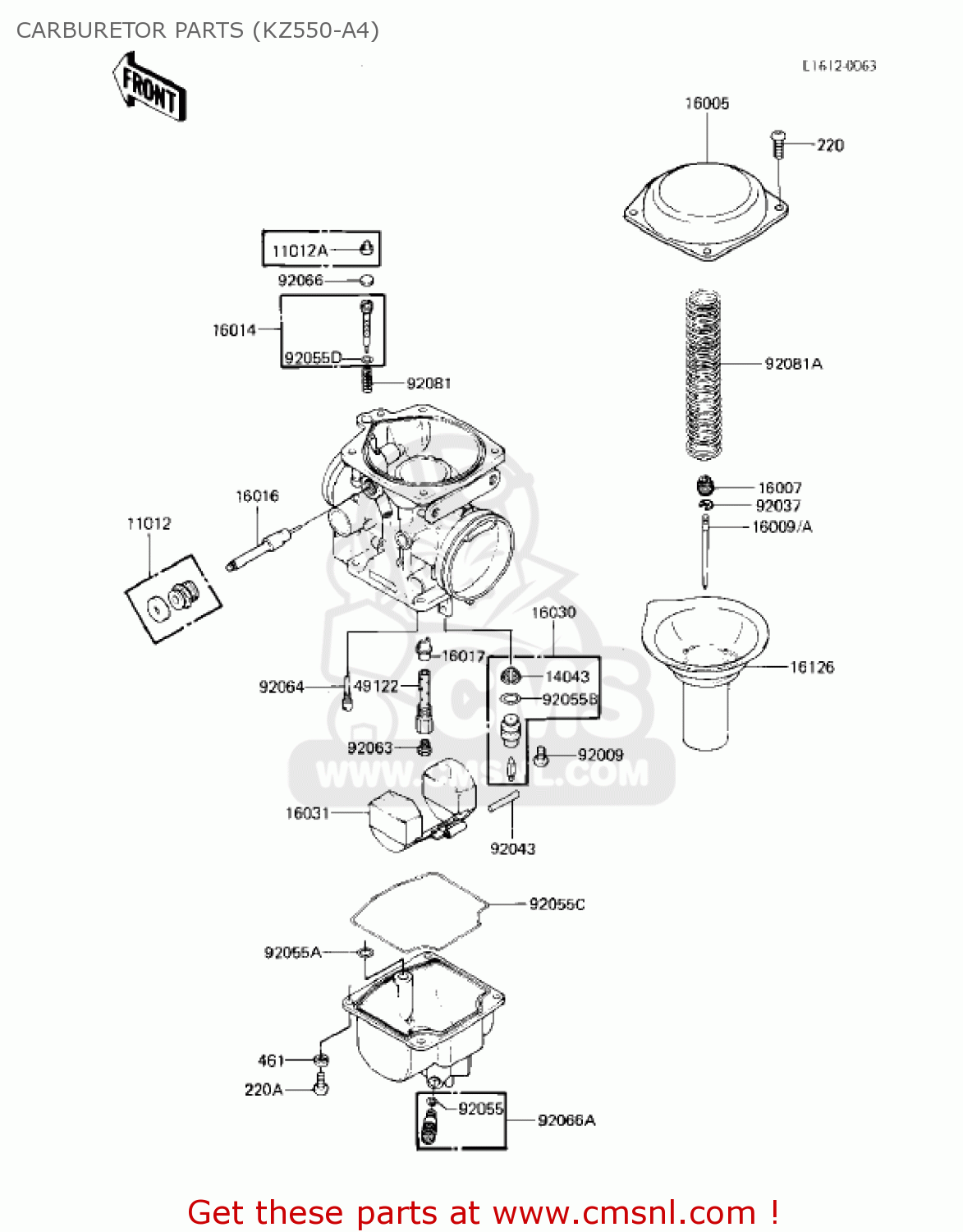

Carburetor parts (kz550-a4) diagram KZ550A3 1982 USA CANADA
CARBURETOR PARTS (KZ550-A4) KZ550A3 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121243
ref: 11012
CAP
€ 8.50
11012A
110121265
ref: 11012A
CN
CAP,PILOT AIR SCREW
€ 2.00
14043
140431011
ref: 14043
FILTER,FLOAT VALVE
€ 9.00
16005
160051021
ref: 16005
TOP-CHAMBER,CR PLATED
€ 17.00
16007
160071051
ref: 16007
SEAT-SPRING
€ 6.50
16009
160091129
ref: 16009
US
JET,NEEDLE,#4A02
€ 17.00
16009A
160091130
ref: 16009A
CN
NEEDLE-JET,#4A00
€ 22.50
16014
160141032
ref: 16014
SCREW-PILOT AIR
€ 13.00
16016
160161023
ref: 16016
PLUNGER
€ 19.50
16017
160171116
ref: 16017
JET-NEEDLE
€ 13.50
16030
160301024
ref: 16030
VALVE-FLOAT
€ 49.50
16031
160311018
ref: 16031
FLOAT
€ 46.50
16126
161261047
ref: 16126
VALVE,VACUUM
€ 136.50
49122
491221012
ref: 49122
PIPE-BLEEDER
€ 19.50
92009
920091168
ref: 92009
SCREW,FLOAT VALVE
€ 2.50
92037
920371303
ref: 92037
CLAMP
€ 2.00
92043
920431112
ref: 92043
PIN,FLOAT
€ 2.50
92055
920551071
ref: 92055
RING-O,OVERFLOW
€ 4.50
92055A
920551126
ref: 92055A
RING-O
€ 6.00
92055B
920551127
ref: 92055B
RING-O
€ 4.00
92055C
920551128
ref: 92055C
RING-O,FLOAT CHAMBER
€ 19.00
92055D
920551134
ref: 92055D
RING-O
€ 4.50
92063
920631133
ref: 92063
JET,MAIN,#110
€ 8.50
92064
920641055
ref: 92064
JET-PILOT,#32
€ 10.00
92066
920661051
ref: 92066
US
PLUG,PILOT AIR SCREW,
€ 3.00
92066A
920661065
ref: 92066A
SCREW,DRAIN
€ 9.50
92081
920811441
ref: 92081
SPRING
€ 3.50
92081A
920811461
ref: 92081A
SPRING
€ 12.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0412
ref: 220A
SCREW-PAN CROS 4X12
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
