CLUTCH ('80-'81 A1/A2)
KZ550A3 1982 USA CANADA

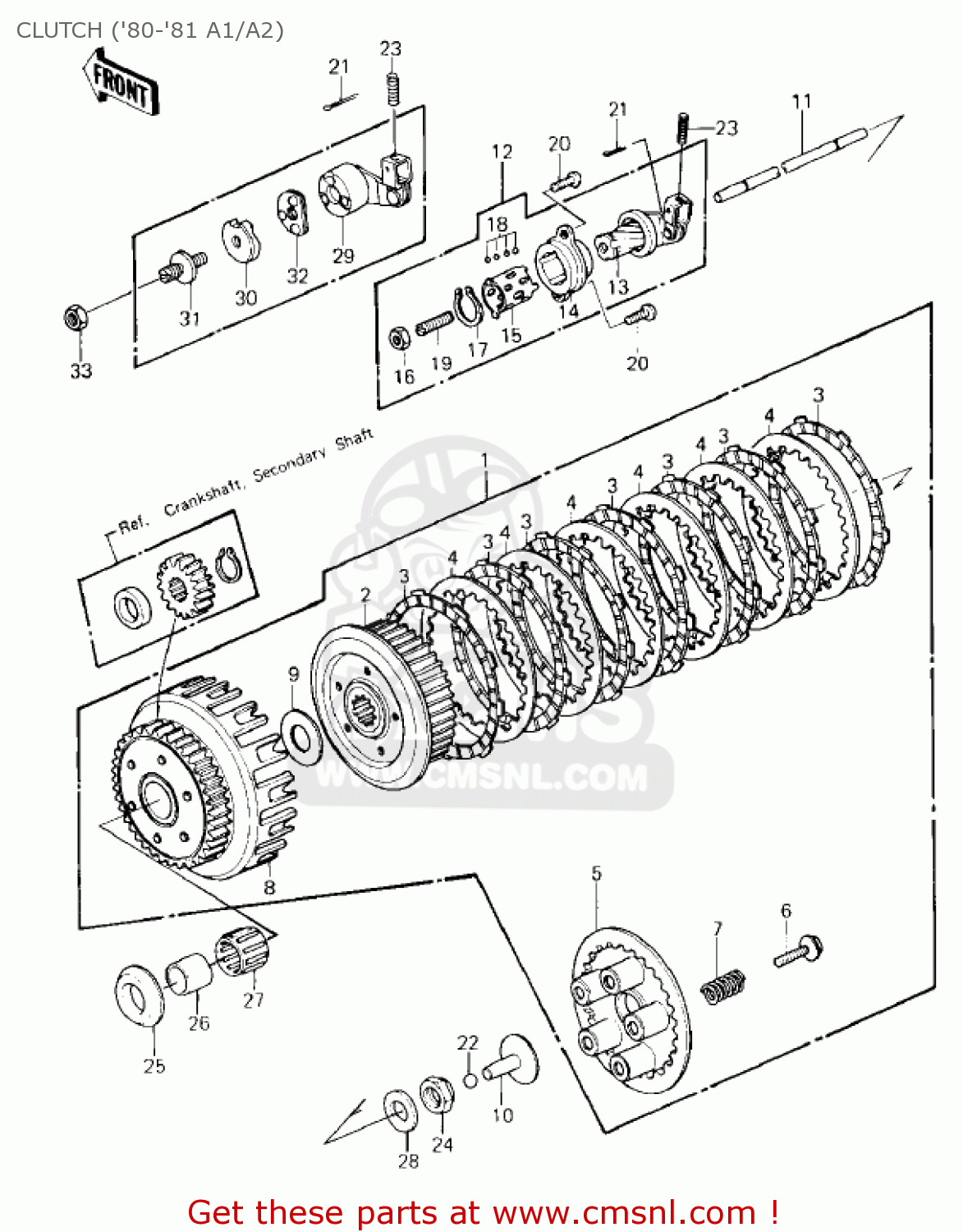

Clutch ('80-'81 a1/a2) diagram KZ550A3 1982 USA CANADA
CLUTCH ('80-'81 A1/A2) KZ550A3 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
130811044
ref: 1
CLUTCH ASSY
€ 568.50
2
130871052
ref: 2
HUB-CLUTCH
€ 96.00
3
13088040
ref: 3
PLATE,CLUTCH FRICTION (NAS)
€ 12.50
4
13089026
ref: 4
PLATE,CLUTCH STEEL (NAS)
€ 6.50
5
13187008
ref: 5
PLATE,CLUTCH SPRING (NAS)
€ 50.00
6
920011066
ref: 6
BOLT, CLUTCH SPR FITT
€ 4.00
7
92081139
ref: 7
SPRING,CLUTCH
€ 5.50
8
130951030
ref: 8
HOUSING-COMP-CLUTCH
€ 307.00
9
92026022
ref: 9
SPACER,25.5X47X2.5
€ 6.50
10
13116029
ref: 10
ROD-PUSH,CLUTCH SPRIN
€ 18.00
11
131161007
ref: 11
ROD-PUSH,CLUTCH,8X270
€ 27.00
12
13231020
ref: 12
USE WITH 14026-1015
RELEASE ASSY,CLUTCH
€ 57.50
13
13102027
ref: 13
USE WITH 14026-1015
INNER, CLUTCH RELEASE
€ 37.50
14
13118011
ref: 14
USE WITH 14026-1015
OUTER,CLUTCH REREASEL
€ 14.00
15
13197004
ref: 15
USE WITH 14026-1015
RETAINER
€ 1.00
16
318B0800
ref: 16
USE WITH 14026-1015
NUT,8MM
€ 0.50
17
480J1500
ref: 17
USE WITH 14026-1015
CIRCLIP-TYPE-C,15MM
€ 1.00
18
600A0400
ref: 18
USE WITH 14026-1015
BALL-STEEL,1/8
€ 2.00
19
92014014
ref: 19
USE WITH 14026-1015
SCREW-SLOTTED,8X25
€ 4.00
20
220B0616
ref: 20
USE WITH 14026-1015
SCREW-PAN HEAD,6X16
€ 2.50
21
550D1615
ref: 21
PIN-COTTER,1.6X15
€ 1.50
22
600A1200
ref: 22
BALL-STEEL,3/8
€ 0.50
23
92081069
ref: 23
SPRING-CLUTCH RELEASE
€ 4.50
24
920151555
ref: 24
NUT,20MM
€ 9.00
25
92026116
ref: 25
SPACER,THRUST,T=5.5MM
€ 12.00
26
92028178
ref: 26
BUSHING,CLUTCH
€ 17.00
27
92046028
ref: 27
BEARING-NEEDLE,KTV323
€ 20.50
28
92125002
ref: 28
WASHER,SPRING,20MM
€ 8.50
29
131021008
ref: 29
USE WITH 14026-1041
RELEASE-COMP-CLUTCH
€ 34.50
30
131191003
ref: 30
USE WITH 14026-1041
CAM-RELEASE,CLUTCH
€ 11.50
31
920091009
ref: 31
USE WITH 14026-1041
SCREW,SLOTTED,8M/M
€ 2.50
32
920451001
ref: 32
USE WITH 14026-1041
BEARING,B.CLUTCH
€ 8.00
33
318B0800
ref: 33
USE WITH 14026-1041
NUT,8MM
€ 0.50
