FRONT MASTER CYLINDER (KZ550-A1)
KZ550A3 1982 USA CANADA

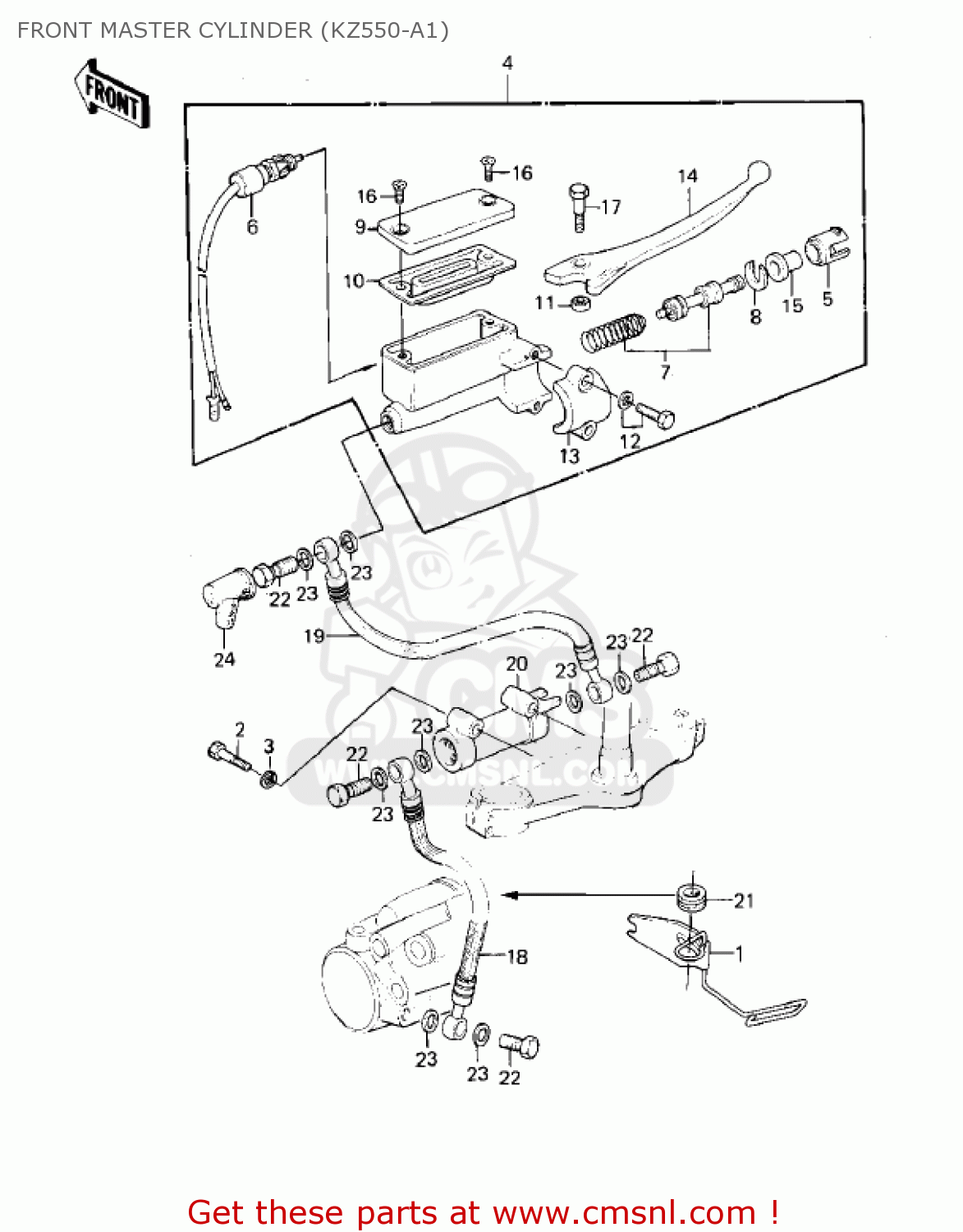

Front master cylinder (kz550-a1) diagram KZ550A3 1982 USA CANADA
FRONT MASTER CYLINDER (KZ550-A1) KZ550A3 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110341041
ref: 1
BRACKET,BRAKE HOSE,LH
€ 34.00
2
110R0635
ref: 2
BOLT 6X35
€ 3.50
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
430151038
ref: 4
MASTER CYLINDER ASSEMBLY,FRONT
€ 237.00
5
140081007
ref: 5
LINER,PISTON
€ 8.00
6
270101028
ref: 6
SWITCH,BRAKE
€ 59.50
7
430201026
ref: 7
PISTON-COMP-BRAKE
€ 63.50
8
430221001
ref: 8
STOPPER-BRAKE,PISTON
€ 2.50
9
430261006
ref: 9
CAP-BRAKE
€ 46.50
10
430281008
ref: 10
DIAPHRAGM,MASTER CYLI
€ 20.50
11
312B0600
ref: 11
NUT,6MM
€ 0.50
12
43033003
ref: 12
BOLT,6X25,W/WASHER
€ 2.50
13
430341001
ref: 13
HOLDER-BRAKE,MASTER C
€ 20.50
14
460921034
ref: 14
LEVER-GRIP,FRONT BRAK
€ 10.00
15
490161010
ref: 15
COVER-SEAL,BRAKE PIST
€ 9.50
16
920011055
ref: 16
SCREW,COUNTERSUNK HED
€ 3.50
17
920011056
ref: 17
BOLT, CLUTCH LEV FITT
€ 8.50
18
430591045
ref: 18
HOSE-BRAKE,FR,L=490
€ 85.50
19
430591059
ref: 19
FRONT MASTER CYLINDER HOSE
€ 64.00
20
430611002
ref: 20
JOINT-BRAKE
€ 48.00
21
43064006
ref: 21
GROMMET,BRAKE HOSE
€ 2.50
22
920021888
ref: 22
BOLT,OIL,L=23
€ 3.50
23
43067001
ref: 23
WASHER,10.5X15X1.5
€ 1.50
24
490061041
ref: 24
BOOT,DUST
€ 7.50
