MUFFLERS ('82-'83 A3/A4)
KZ550A3 1982 USA CANADA

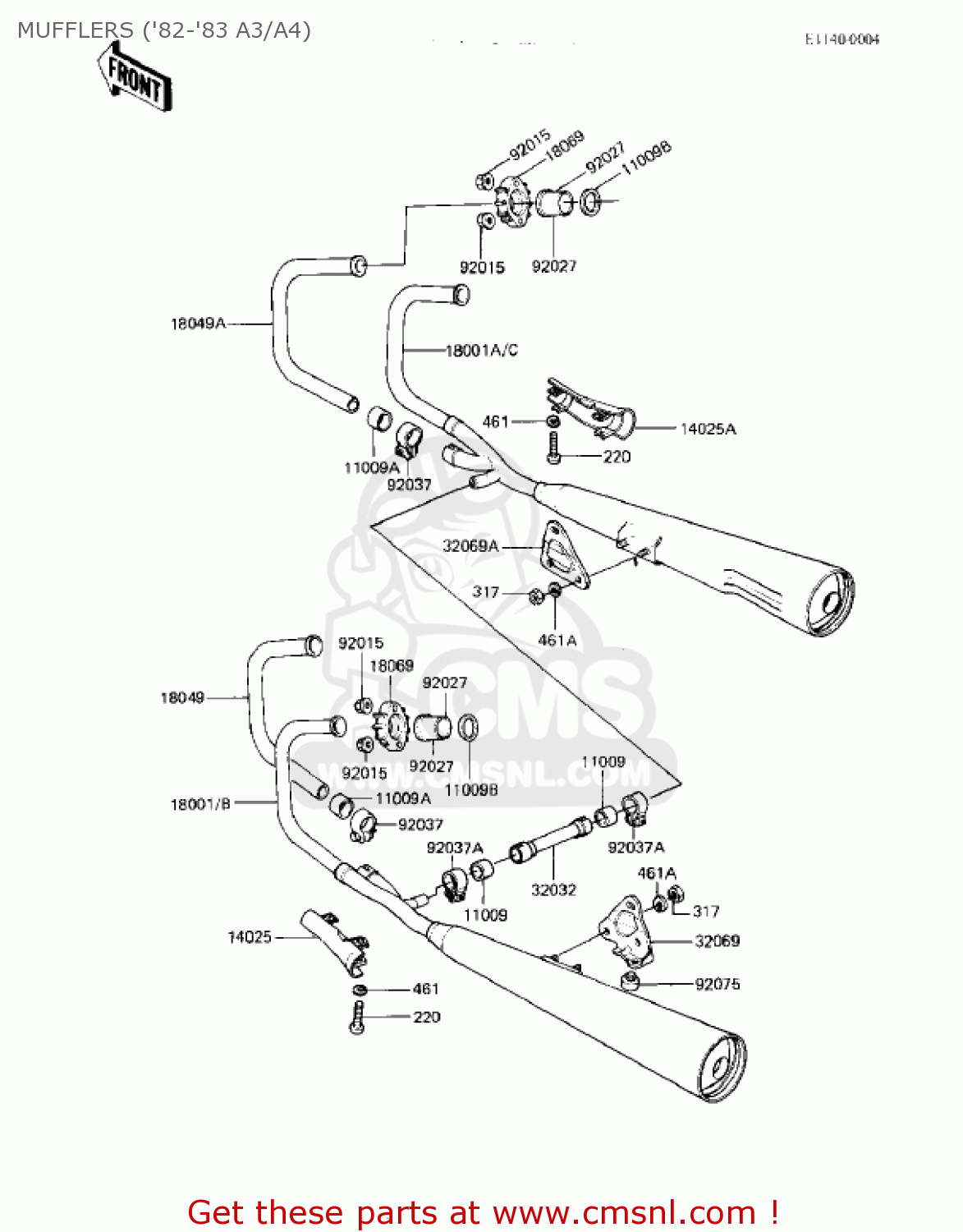

Mufflers ('82-'83 a3/a4) diagram KZ550A3 1982 USA CANADA
MUFFLERS ('82-'83 A3/A4) KZ550A3 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110601051
ref: 11009
GASKET,MUFFLER CONNEC (NAS)
€ 15.00
11009A
110091667
ref: 11009A
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
11009B
110091866
ref: 11009B
GASKET,EXHAUST PIPE H (NAS)
€ 7.50
14025
140251531
ref: 14025
COVER,MUFFLER,LH
€ 34.00
14025A
140251532
ref: 14025A
COVER,MUFFLER,RH
€ 34.00
18001
180011303
ref: 18001
MUFFLER,LH
€ 429.00
18001A
180011304
ref: 18001A
MUFFLER,RH
€ 429.00
18001B
180011303
ref: 18001B
MUFFLER,LH
€ 429.00
18001C
180011304
ref: 18001C
MUFFLER,RH
€ 429.00
18049
180491154
ref: 18049
PIPE-EXHAUST,#2
€ 120.50
18049A
180491155
ref: 18049A
PIPE-EXHAUST,#3
€ 120.50
18069
180691006
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.00
32032
320321671
ref: 32032
PIPE,MUFFLER CONNECTI
€ 17.50
32069
320691031
ref: 32069
BRACKET-MUFFLER,LH
€ 22.50
32069A
320691032
ref: 32069A
BRACKET-MUFFLER,RH
€ 22.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92027
92027264
ref: 92027
COLLAR, EXHAUST PIPE
€ 3.00
92037
920371349
ref: 92037
CLAMP,42MM
€ 8.50
92037A
920371243
ref: 92037A
CLAMP,37MM
€ 18.00
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
220
220B0640
ref: 220
SCREW-PAN HEAD,6X40
€ 2.00
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
