FOOTRESTS ('80-'81 A1/A2)
KZ550A3 1982 USA CANADA

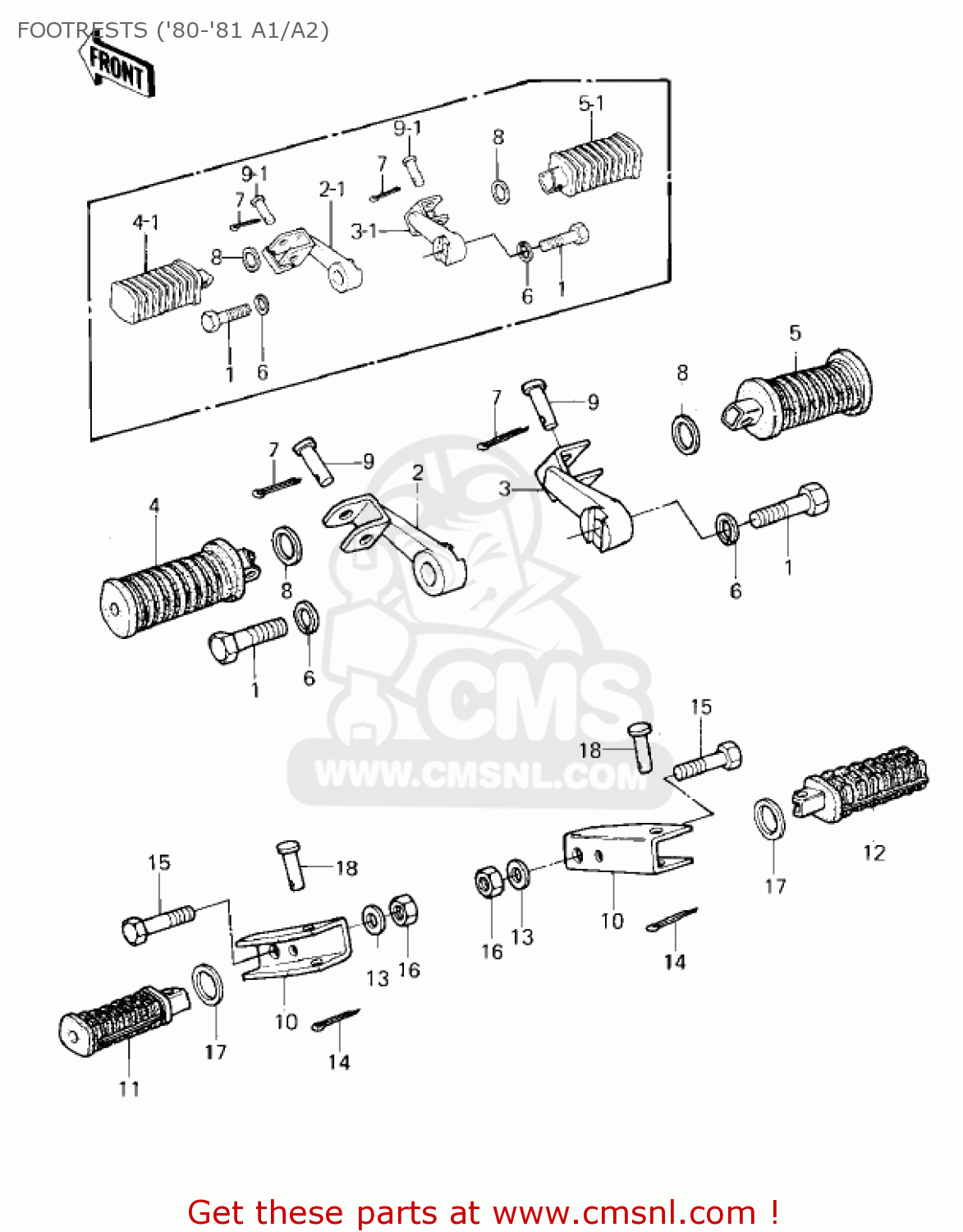

Footrests ('80-'81 a1/a2) diagram KZ550A3 1982 USA CANADA
FOOTRESTS ('80-'81 A1/A2) KZ550A3 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
113G1230A
ref: 1
BOLT,12X30
€ 3.00
2
340031021
ref: 2
KZ550-A1
HOLDER,STEP,L.H.
€ 12.50
2-1
340031074
ref: 2-1
KZ550-A2
HOLDER-STEP,FR,LH
€ 94.50
3
340031022
ref: 3
KZ550-A1
HOLDER,STEP,R.H.
€ 23.00
3-1
340031075
ref: 3-1
KZ550-A2
HOLDER-STEP,FR,RH
€ 56.00
4
340271103
ref: 4
KZ550-A1
STEP-ASSY,FR,RH
€ 45.00
4-1
340281018
ref: 4-1
KZ550-A2
STEP,FR FOOTREST
€ 41.50
5
340271103
ref: 5
KZ550-A1
STEP-ASSY,FR,RH
€ 45.00
5-1
340281018
ref: 5-1
KZ550-A2
STEP,FR FOOTREST
€ 41.50
6
461F1200
ref: 6
WASHER-SPRING,12MM
€ 0.50
7
550D2516
ref: 7
PIN-COTTER,2.5X16
€ 1.50
8
92022250
ref: 8
WASHER,PLAIN
€ 3.00
9
92043080
ref: 9
KZ550-A1
PIN-FOOTREST BAR FIT
€ 3.50
9-1
92043115
ref: 9-1
KZ550-A2
PIN,FOOTREST BAR FIT
€ 6.50
10
340031025
ref: 10
HOLDER-STEP,RR
€ 18.00
11
340281009
ref: 11
STEP,RR,LH
€ 26.50
12
340281010
ref: 12
STEP,RR,RH
€ 49.50
13
411B1000
ref: 13
WASHER-PLAIN,10MM
€ 0.50
14
550D2012
ref: 14
PIN,COTTER,2.0X12
€ 0.50
15
92003213
ref: 15
BOLT, HEX HEAD, 10X40
€ 3.00
16
92019021
ref: 16
NUT,LOCK,10M/M
€ 2.00
17
92022181
ref: 17
WASHER,22.5X30X2.6
€ 3.50
18
920431464
ref: 18
PIN
€ 5.50
