IGNITION SWITCH/LOCKS/REFLECTORS

KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

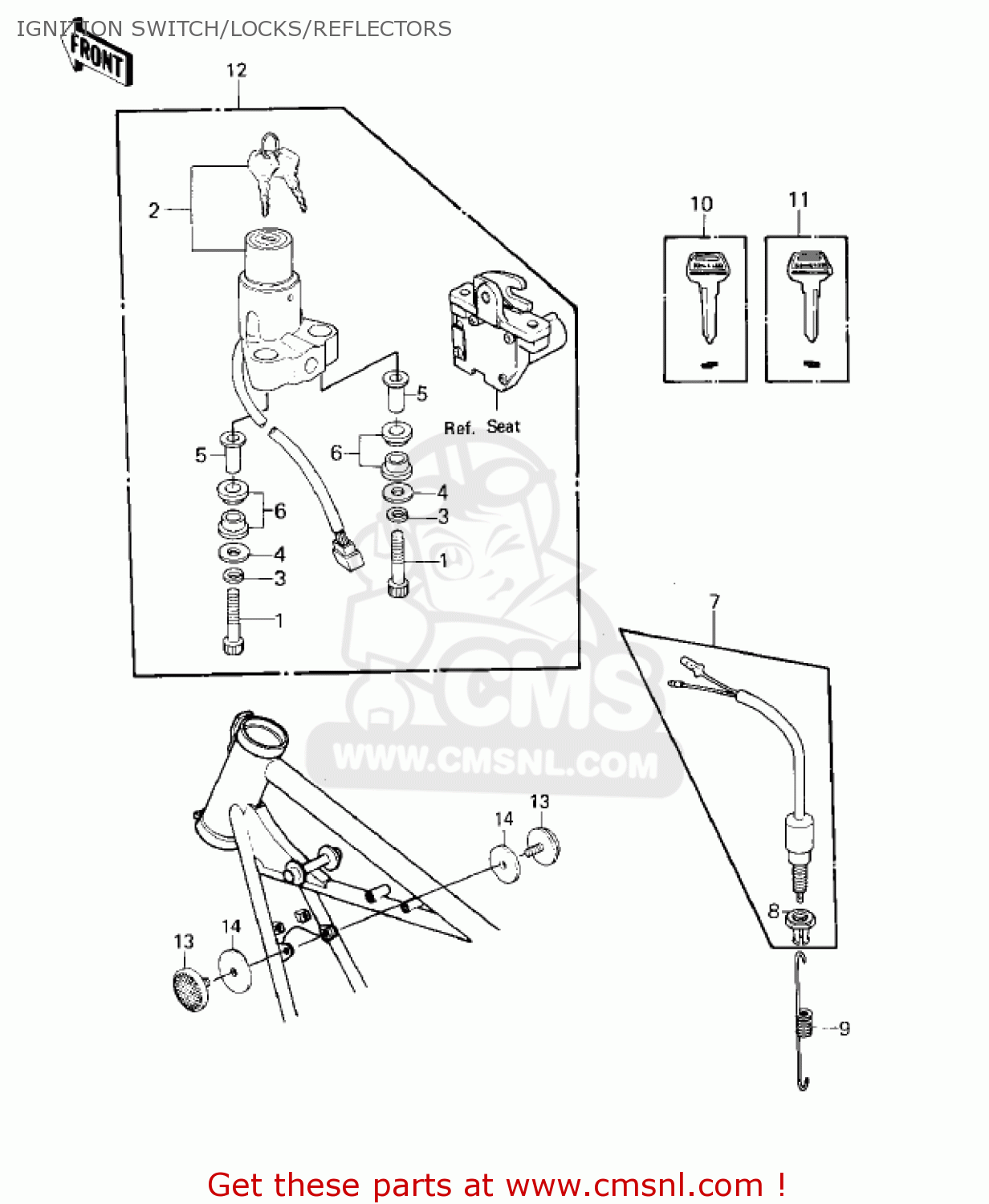

Ignition switch/locks/reflectors diagram KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

120P0845
ref: 1

BOLT,ALLEN,8X45

€ 3.00

270051033
ref: 2

SWITCH ASSY,IGNITION

€ 144.00

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

920221561
ref: 4

WASHER,8.5X20X1.6

€ 2.50

920271135
ref: 5

COLLAR,IG SWITCH

€ 7.00

920751119
ref: 6

DAMPER,IG SWITCH

€ 4.00

27010025
ref: 7

SWITCH,BRAKE LAMP

€ 18.50

27037001
ref: 8

NUT,BRAKE LAMP SWICH

€ 18.50

27011021
ref: 9

SPRING,BRAKE LAMP SW

€ 15.50

270081034
ref: 10

KEY,BLANK

€ 13.00

270081035
ref: 11

KEY,BLANK

€ 12.50

270045048
ref: 12

LOCK ASSY

€ 144.00

28012016
ref: 13

REFLECTOR REFLEX

€ 16.00

92094011
ref: 14

DAMPER,REFLECTOR

€ 3.00
