GEAR CHANGE DRUM & FORKS ('80 D1

KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

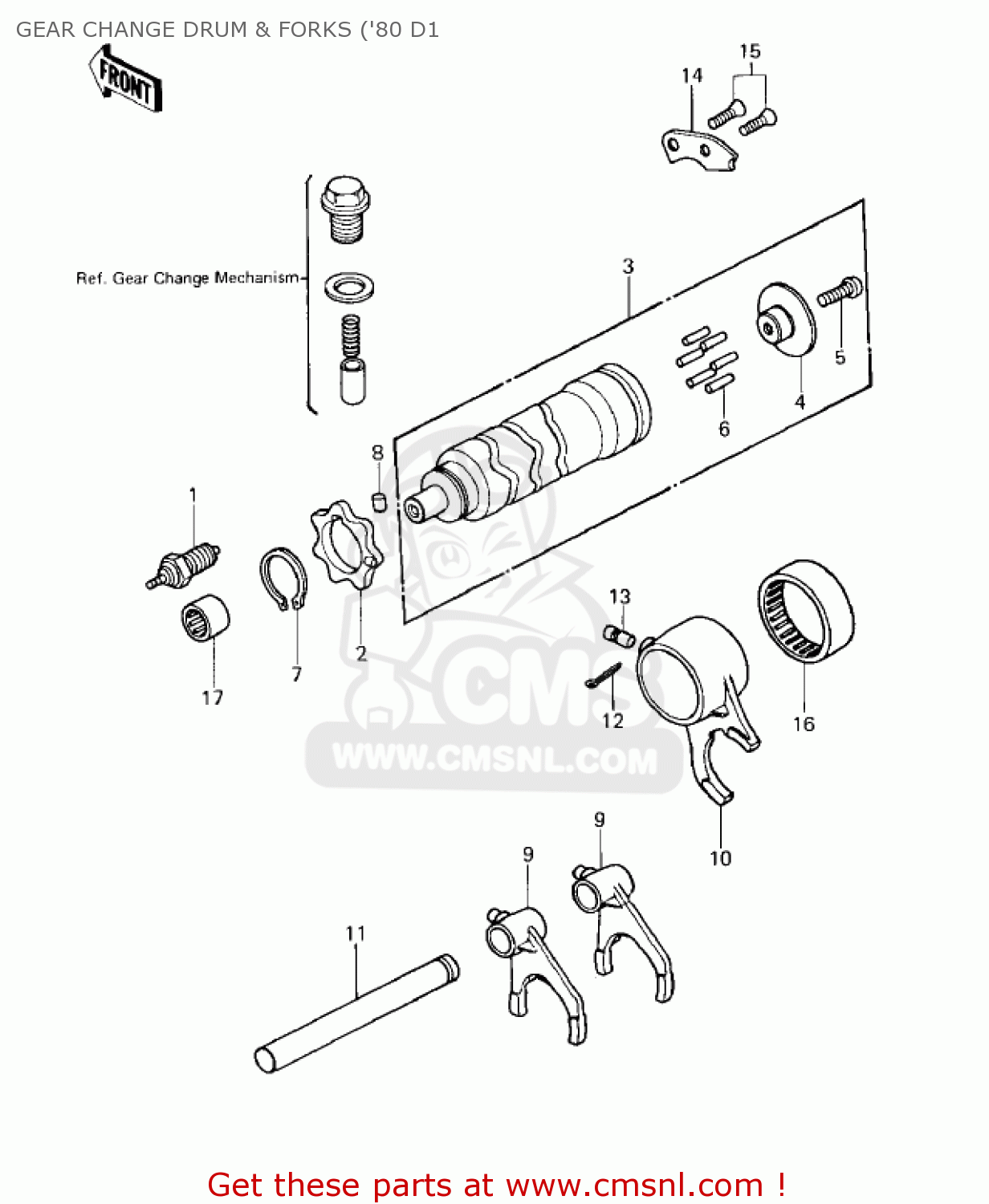

Gear change drum & forks ('80 d1 diagram KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

GEAR CHANGE DRUM & FORKS ('80 D1 KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

GEAR CHANGE DRUM & FORKS ('80 D1 KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

131515002
ref: 1

SWITCH,NEUTRAL

€ 22.50

2

131451058
ref: 2

CAM-CHANGE DRUM

€ 15.00

3

132391011
ref: 3

DRUM ASSY,CHANGE

€ 127.00

4

13142016
ref: 4

PLATE,SHIFT DRUM PIN

€ 26.00

5

220B0614
ref: 5

SCREW-PAN HEAD,6X14

€ 2.00

6

92042014
ref: 6

PIN-GEAR CHANGE DRUM

€ 0.50

7

480J3000
ref: 7

CIRCLIP-TYPE-C,30MM

€ 3.50

8

610A0406
ref: 8

ROLLER,4X6

€ 2.50

9

131401067
ref: 9

FORK-SHIFT,1,4&2,3

€ 51.00

10

131401053
ref: 10

FORK-SHIFT,5TH&TOP

€ 35.50

11

13209022
ref: 11

ROD,SHIFT

€ 8.00

12

550D3020
ref: 12

PIN-COTTER,3.0X20

€ 2.00

13

92042021
ref: 13

PIN,DOWEL,8X18

€ 7.00

14

140141001
ref: 14

PLATE,SFT DRUM POSTON

€ 8.50

15

920091007
ref: 15

SCREW,CSK,6X16

€ 2.00

16

92046051
ref: 16

BEARING-NEEDLE,37BTM4

€ 23.00

17

920461010
ref: 17

BEARING-NEEDLE,HK1210

€ 17.00
