CRANKCASE BOLT & STUD PATTERN ('

KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

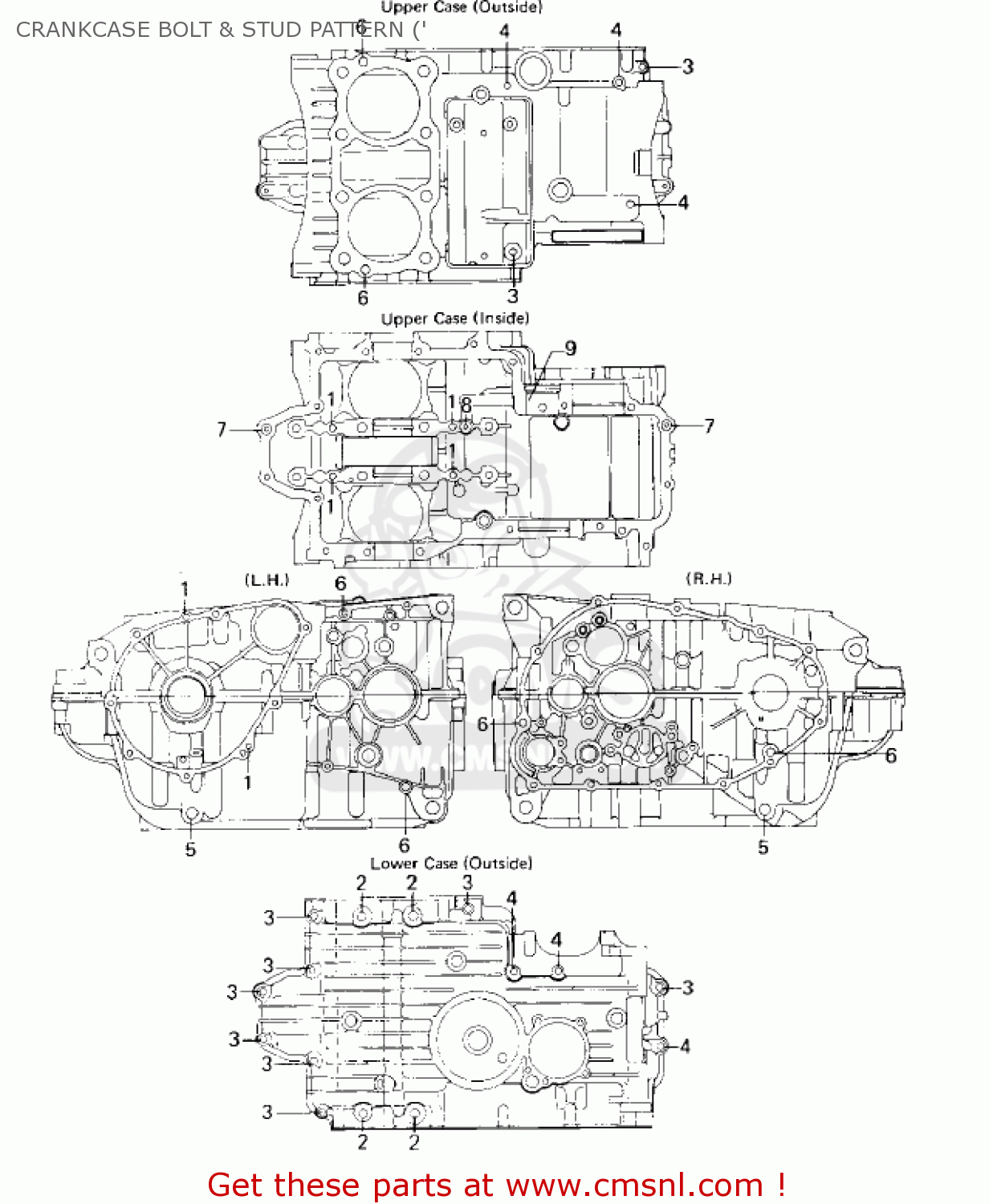

Crankcase bolt & stud pattern (' diagram KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

551A0612
ref: 1

PIN-DOWEL,6X12

€ 0.50

130P0895
ref: 2

BOLT-FLANGED,8X95

€ 7.00

92003110
ref: 3
ASTERISK (*) MARKED

BOLT-HEX HEAD,6X54

€ 1.50

92003110
ref: 3

BOLT-HEX HEAD,6X54

€ 1.50

130G0695
ref: 4

BOLT-FLANGED,6X95

€ 3.50

92013010
ref: 5
ASTERISK (*) MARKED

SET,SCREW

€ 4.50

92042007
ref: 6

PIN-DOWEL

€ 4.00

920431037
ref: 7
ASTERISK (*) MARKED

PIN,DOWEL,10X8.2X14

€ 0.50

92055074
ref: 8

O RING

€ 5.50

92062011
ref: 9
ASTERISK (*) MARKED

NOZZLE,OIL

€ 5.50
