FRAME ('80 D1)

KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

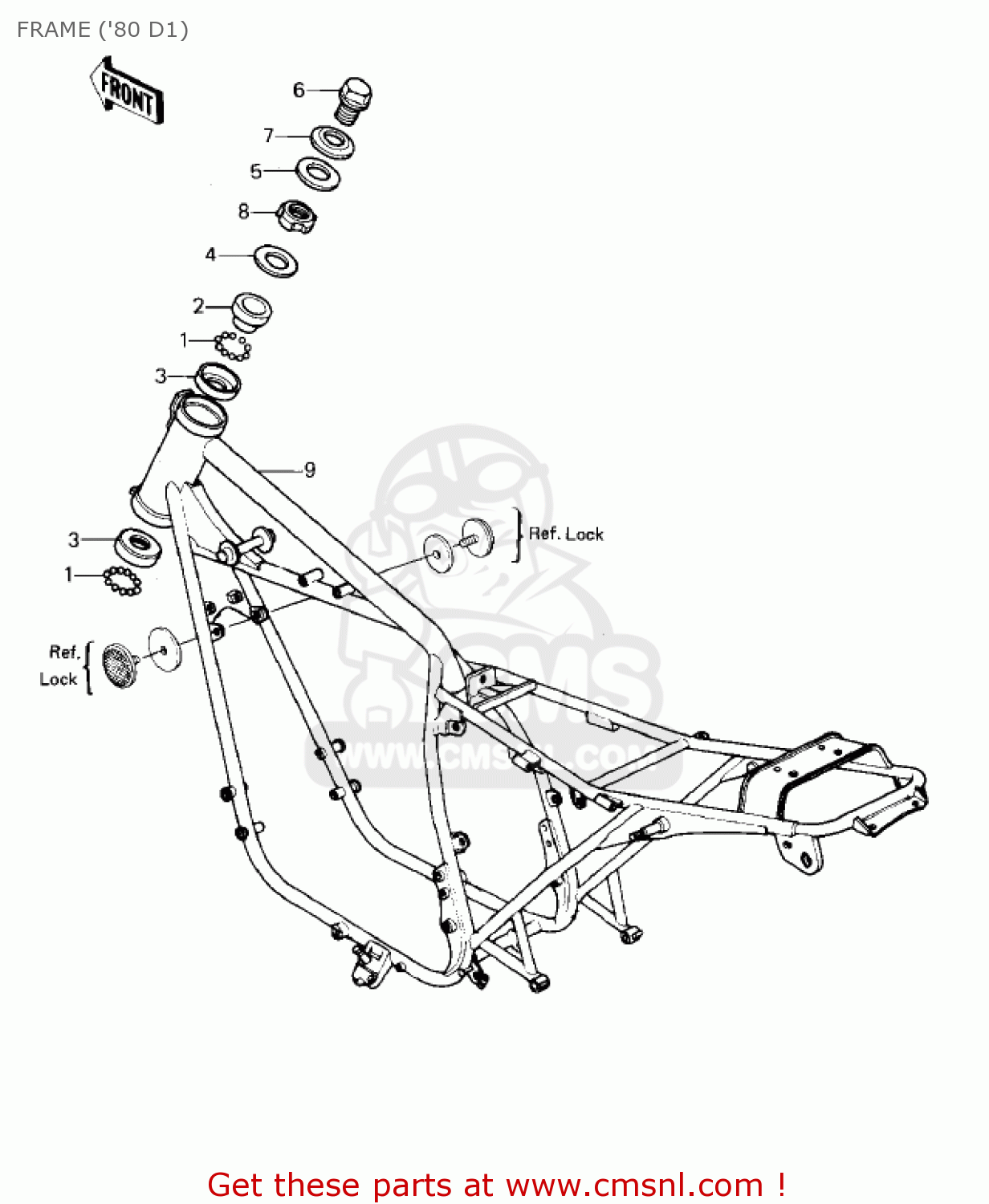

Frame ('80 d1) diagram KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

FRAME ('80 D1) KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

FRAME ('80 D1) KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

600A0800
ref: 1

BALL-STEEL,1/4

€ 0.50

2

92047006
ref: 2

CONE-STRNG STEM

€ 11.00

3

92048006
ref: 3

RACE-STRNG BEARIN-STE

€ 11.50

4

46098016
ref: 4

CAP,STEERING STEM

€ 4.00

5

46100003
ref: 5

WASHER,WAVE

€ 6.50

6

92007031
ref: 6

BOLT-STEERG STEM HEAD

€ 17.50

7

92022230
ref: 7

WASHER-STEERG STM HD

€ 7.50

8

92090007
ref: 8

NUT-STEERING STEM LCK

€ 8.00

9

320021248
ref: 9

FRAME

€ 830.50
