FRAME ('81-'83 D2/D3/D4/D5)

KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

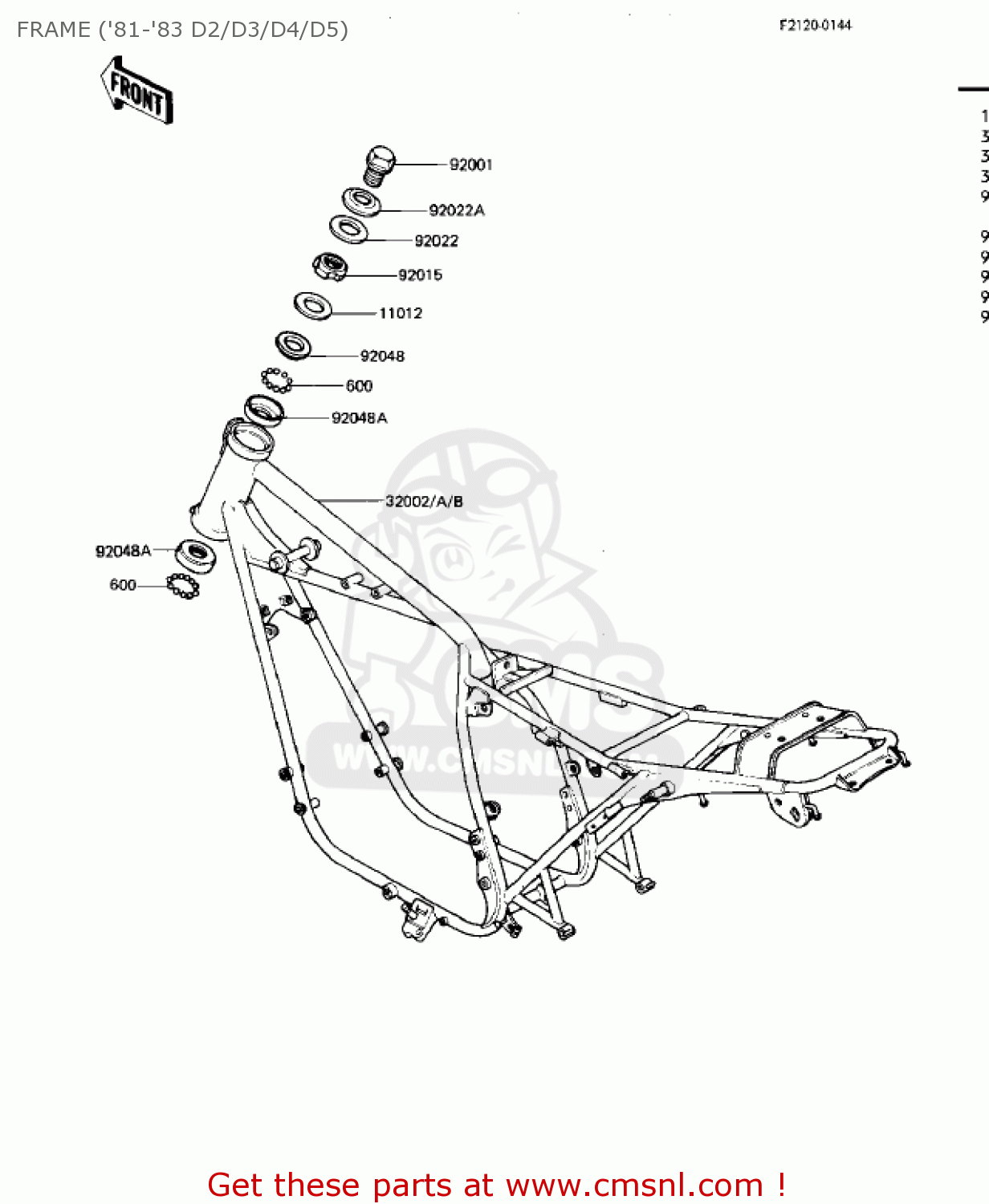

Frame ('81-'83 d2/d3/d4/d5) diagram KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

11012

46098016
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021248
ref: 32002

FRAME

€ 830.50

32002A

320021506
ref: 32002A

FRAME-COMP

€ 726.50

32002B

320021506
ref: 32002B

FRAME-COMP

€ 726.50

92001

92007031
ref: 92001

BOLT-STEERG STEM HEAD

€ 17.50

92015

92090007
ref: 92015

NUT-STEERING STEM LCK

€ 8.00

92022

46100003
ref: 92022

WASHER,WAVE

€ 6.50

92022A

92022230
ref: 92022A

WASHER-STEERG STM HD

€ 7.50

92048

92047006
ref: 92048

CONE-STRNG STEM

€ 11.00

92048A

92048006
ref: 92048A

RACE-STRNG BEARIN-STE

€ 11.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50
