HANDLEBAR ('80 D1)

KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

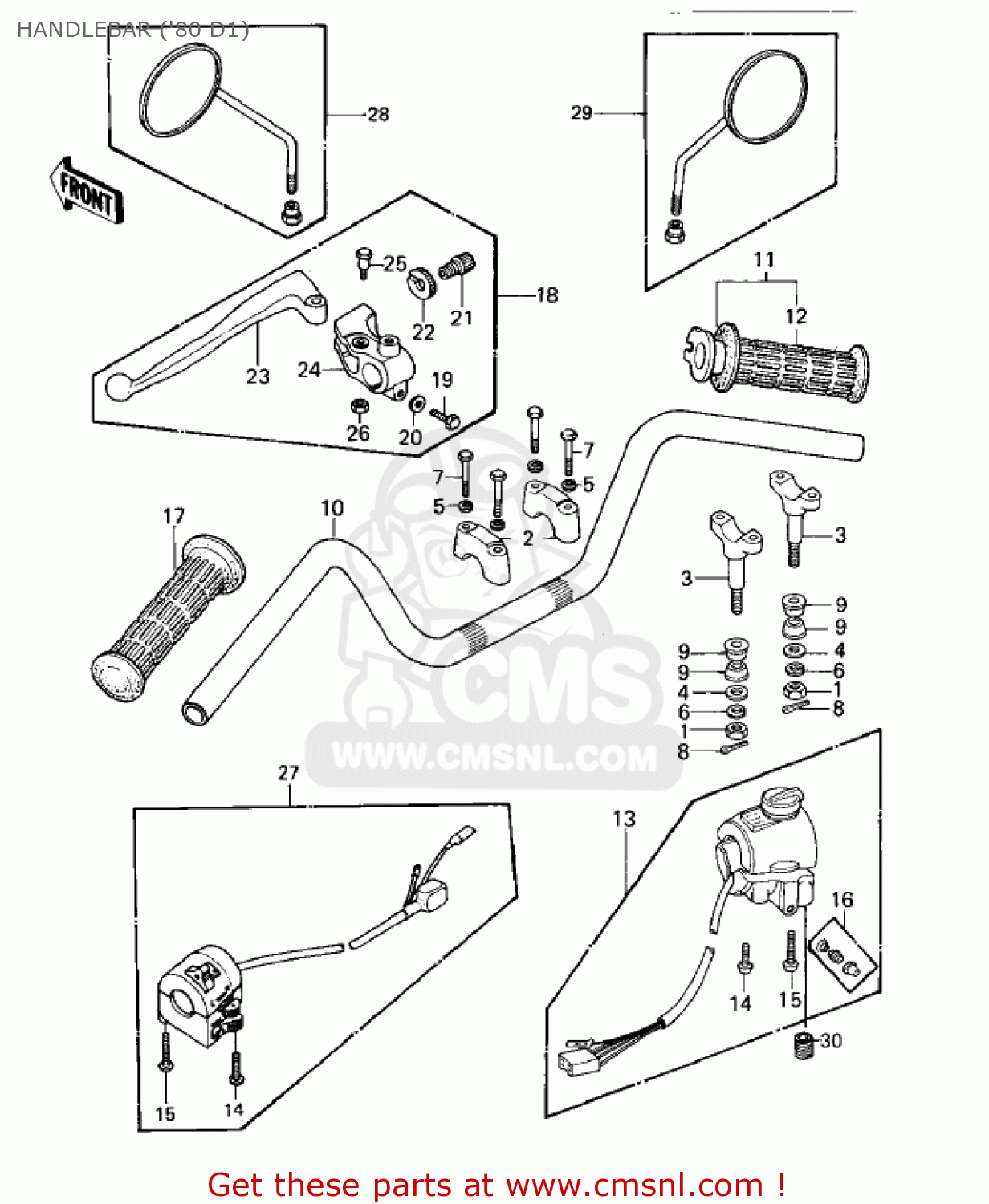

Handlebar ('80 d1) diagram KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

HANDLEBAR ('80 D1) KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

HANDLEBAR ('80 D1) KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

314B1000
ref: 1

NUT,10MM

€ 0.50

2

46012008
ref: 2

HOLDER-HANDLE,UPP

€ 23.00

3

46012010
ref: 3

HOLDER-HANDLE,LWR

€ 20.00

4

46016003
ref: 4

PLATE,HANDLE HOLDER

€ 3.50

5

461F0800
ref: 5

WASHER-SPRING,8MM

€ 0.50

6

461F1000
ref: 6

WASHER-SPRING,10MM

€ 0.50

7

920011405
ref: 7

BOLT,8X38

€ 10.00

8

554A0800
ref: 8

PIN-SNAP,8MM

€ 1.00

9

92075039
ref: 9

DAMPER RUBBER-HANDLE

€ 3.00

10

460031045
ref: 10

HANDLE

€ 109.50

11

46019038
ref: 11

GRIP-ASSY,THROTTLE

€ 80.50

12

46061018
ref: 12

RUBBER,THROTTLE GRIP

€ 10.00

13

460911039
ref: 13

CASE ASSY, R.H.

€ 101.00

14

220B0530
ref: 14

SCREW-PAN-CROS

€ 2.00

15

220B0535
ref: 15

SCREW-PAN-CROS

€ 2.00

16

270101009
ref: 16

SWITCH ASSY,HORN BUTN

€ 5.50

17

46075028
ref: 17

GRIP,LH

€ 32.00

18

46076052
ref: 18

LEVER ASSY,CLUTCH

€ 101.00

19

110N0625
ref: 19

BOLT-HEX HEAD,6X25

€ 3.50

20

410B0600
ref: 20

WASHER-PLAIN-SMALL,6M

€ 0.50

21

46055003
ref: 21

SCREW-CABLE ADJUST

€ 11.50

22

46056007
ref: 22

NUT,CABLE ADJUST LOCK

€ 9.00

23

46092023
ref: 23

LEVER-GRIP,CLUTCH

€ 17.00

24

46094017
ref: 24

HOLDER,CLUTCH LEVER

€ 23.00

25

92007047
ref: 25

BOLT,HEX HEAD

€ 6.50

26

92019008
ref: 26

NUT-LOCK,6MM

€ 3.00

27

460911079
ref: 27

HOUSING-ASSY-CONTROL,

€ 129.50

28

560011007
ref: 28

MIRROR-ASSY,LH

€ 36.50

29

560011008
ref: 29

MIRROR-ASSY,RH

€ 36.50

30

92066061
ref: 30

PLUG,B,KICKSTARTER

€ 1.50
