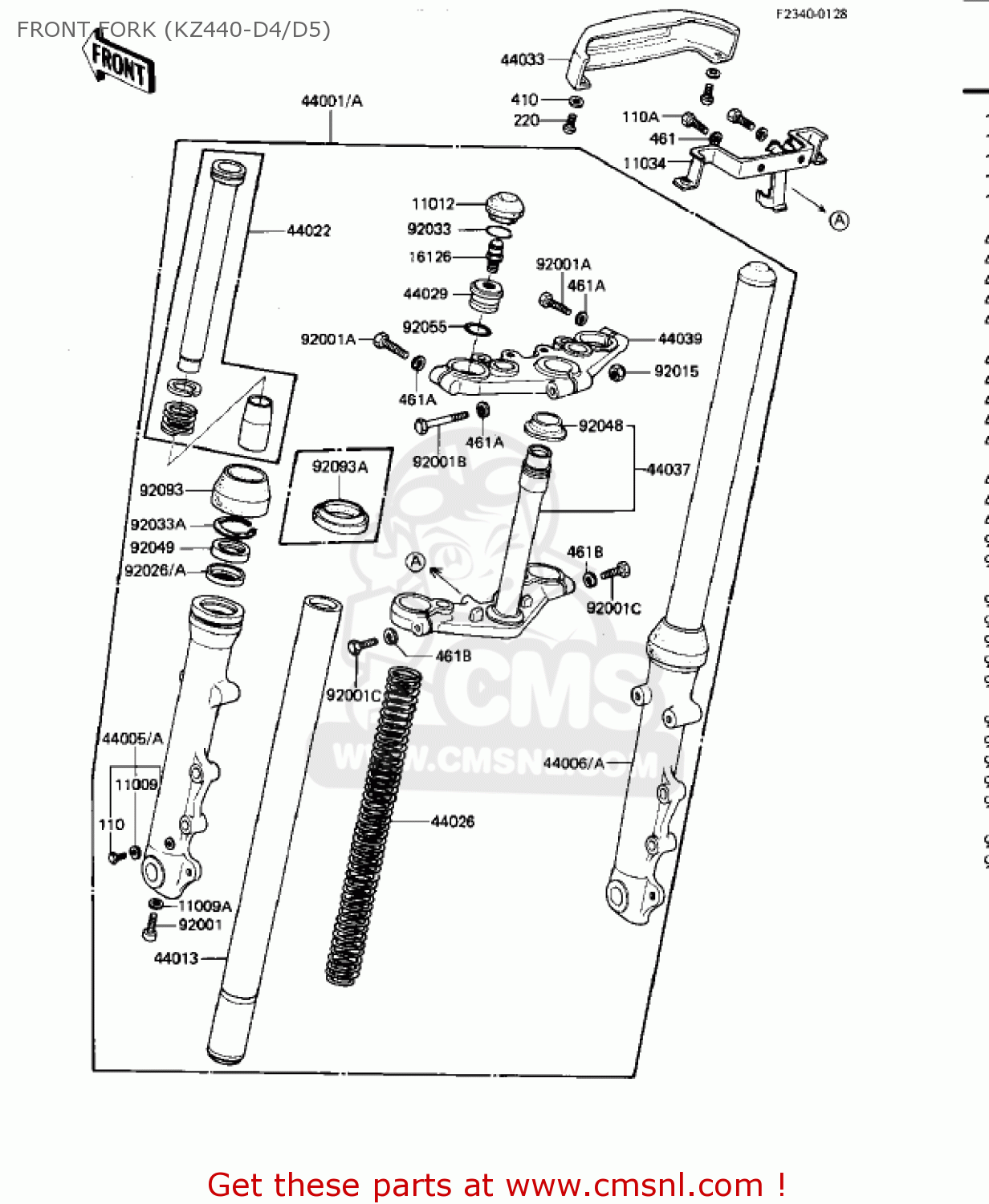

FRONT FORK (KZ440-D4/D5)

KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

Front fork (kz440-d4/d5) diagram KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

FRONT FORK (KZ440-D4/D5) KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

FRONT FORK (KZ440-D4/D5) KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

11009

44045047
ref: 11009

GASKET,DRAIN PLUG (NAS)

€ 6.00

11009A

44045051
ref: 11009A

GASKET,FORK CYLINDER (NAS)

€ 4.00

11012

110121196
ref: 11012

CAP,RUBBER,FORK TOP

€ 8.00

11034

110341758
ref: 11034

BRACKET,FORK COVER

€ 17.00

16126

161261025
ref: 16126

VALVE,AIR

€ 19.00

44001

440011304
ref: 44001

FORK-FRONT

€ 998.50

44001A

440011374
ref: 44001A

FORK-FRONT

€ 898.50

44005

440051073
ref: 44005

PIPE-LEFT FORK OUTER

€ 131.00

44005A

440051103
ref: 44005A

PIPE-LEFT FORK OUTER

€ 193.00

44006

440061073
ref: 44006

PIPE-RIGHT FORK OUTER

€ 206.00

44006A

440061103
ref: 44006A

PIPE-RIGHT FORK OUTER

€ 193.00

44013

440131025
ref: 44013

PIPE-FORK INNER

€ 124.00

44022

440221028
ref: 44022

CYLINDER,FORK

€ 71.50

44026

440261118
ref: 44026

SPRING-FRONT FORK

€ 32.50

44029

440291027
ref: 44029

SEAT-FORK SPRING

€ 7.50

44033

440331062
ref: 44033

COVER-FORK

€ 20.00

44037

440371014
ref: 44037

STEM,STEERING

€ 267.00

44039

440391023
ref: 44039

HEAD,STEERING STEM

€ 99.00

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 6.50

92001A

920011063
ref: 92001A

BOLT,HEX HEAD,8X40

€ 6.50

92001B

920011064
ref: 92001B

BOLT,HEX HEAD,8X55

€ 6.00

92001C

920011252
ref: 92001C

BOLT,HEX HEAD,10X35

€ 3.50

92015

920151124
ref: 92015

NUT,LOCK,8MM

€ 3.50

92026

920261005
ref: 92026

SPACER,FORK

€ 8.50

92026A

920261119
ref: 92026A

SPACER,FORK

€ 6.50

92033

44044023
ref: 92033

CIRCLIP

€ 3.50

92033A

920331070
ref: 92033A

RING-SNAP

€ 3.50

92048

92047006
ref: 92048

CONE-STRNG STEM

€ 11.00

92049

920491077
ref: 92049

OIL SEAL,FORK

€ 13.50

92055

44046025
ref: 92055

'O' RING, FORK

€ 4.00

92093

920931063
ref: 92093

SEAL,FORK

€ 19.50

92093A

920931084
ref: 92093A

SEAL,FORK

€ 14.50

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

110A

112G0612
ref: 110A

BOLT-UPSET

€ 2.50

220

220B0410
ref: 220

SCREW-PAN-CROS

€ 2.00

410

410B0400
ref: 410

WASHER-PLAIN-SMALL,4M

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50

461B

461F1000
ref: 461B

WASHER-SPRING,10MM

€ 0.50
