CARBURETOR ASSY ('80 D1)

KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

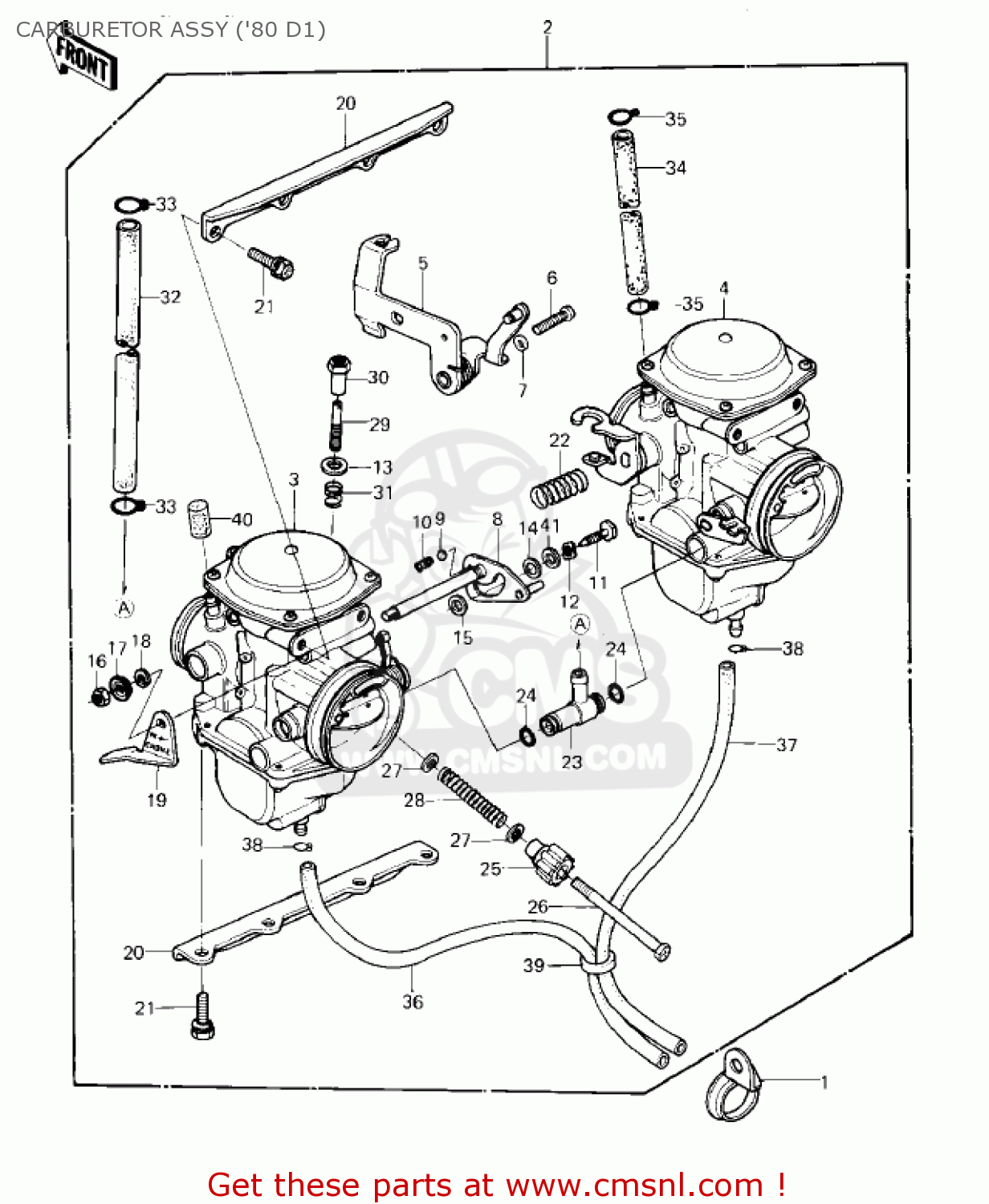

Carburetor assy ('80 d1) diagram KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

CARBURETOR ASSY ('80 D1) KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

CARBURETOR ASSY ('80 D1) KZ440D3 LTD 1981 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

920371153
ref: 1

CLAMP,TUBE

€ 1.50

2

160011391
ref: 2
USA

CARBURETOR

€ 440.00

2

160011275
ref: 2
CANADA

CARBURETOR ASSY

€ 460.00

3

160011290
ref: 3
USA

CARBURETOR,LH

€ 170.00

3

160011276
ref: 3
CANADA

CARBURETOR,L.H.

€ 261.00

4

160011291
ref: 4
USA

CARBURETOR,RH

€ 218.00

4

160011277
ref: 4
CANADA

CARBURETOR,R.H.

€ 261.00

5

110341805
ref: 5

BRACKET,THROTTLE CABL

€ 15.50

6

220B0520
ref: 6

SCREW-PAN-CROS

€ 0.50

7

461F0500
ref: 7

WASHER-SPRING,5MM

€ 0.50

8

160411020
ref: 8

SHAFT,LINK

€ 36.00

9

921401004
ref: 9

BALL,STEEL,3/16"

€ 1.50

10

920811249
ref: 10

SPRING

€ 4.00

11

920091096
ref: 11

SCREW,LINK SHAFT

€ 6.00

12

920811262
ref: 12

SPRING,WAVED WASHER

€ 3.00

13

920221204
ref: 13

WASHER

€ 2.00

14

920221199
ref: 14

WASHER,6.1X11X0.8,POL

€ 3.00

15

920221200
ref: 15

WASHER,6.4X9.4X0.8,PO

€ 2.00

16

311B0500
ref: 16

NUT-HEX

€ 0.50

17

920221201
ref: 17

WASHER,LOCK,5M/M

€ 2.00

18

461F0500
ref: 18

WASHER-SPRING,5MM

€ 0.50

19

131681065
ref: 19

LEVER,CHOKE

€ 8.50

20

160651012
ref: 20

PLATE,STAY

€ 23.00

21

920091129
ref: 21

SCREW,6X16

€ 3.00

22

920811258
ref: 22

SPRING

€ 3.00

23

920051026
ref: 23

FITTING,FUEL TUBE

€ 28.00

24

920551004
ref: 24

O RING

€ 2.50

25

130911078
ref: 25

HOLDER,ADJUST

€ 9.00

26

920011328
ref: 26

BOLT,HEX HEAD,5X70

€ 6.50

27

920221203
ref: 27

WASHER

€ 2.50

28

920811251
ref: 28

SPRING

€ 3.00

29

160211027
ref: 29

SCREW,SLOTTED

€ 12.00

30

920151118
ref: 30

NUT,5MM

€ 4.50

31

920811252
ref: 31

SPRING

€ 2.50

32

920591029
ref: 32

TUBE,FUEL,7.3X12.5X20

€ 18.50

33

920371075
ref: 33

CLAMP,FUEL INLET TUBE

€ 2.50

34

920591001
ref: 34

HOSE, FUEL INLET

€ 13.50

35

920371682
ref: 35

CLAMP,TUBE

€ 4.00

36

92059111
ref: 36

HOSE,FUEL OVERFLOW

€ 17.50

37

92059111
ref: 37

HOSE,FUEL OVERFLOW

€ 17.50

38

920371142
ref: 38

CLAMP,TUBE

€ 2.50

39

920591141
ref: 39

TUBE,CLAMP

€ 7.00

40

110121129
ref: 40

CAP,RUBBER

€ 4.50

41

920221207
ref: 41

WASHER,6.5X11X1.2,STE

€ 2.50
