KICKSTARTER MECHANISM ('75 S)

KZ400S SPECIAL 1975 USA CANADA

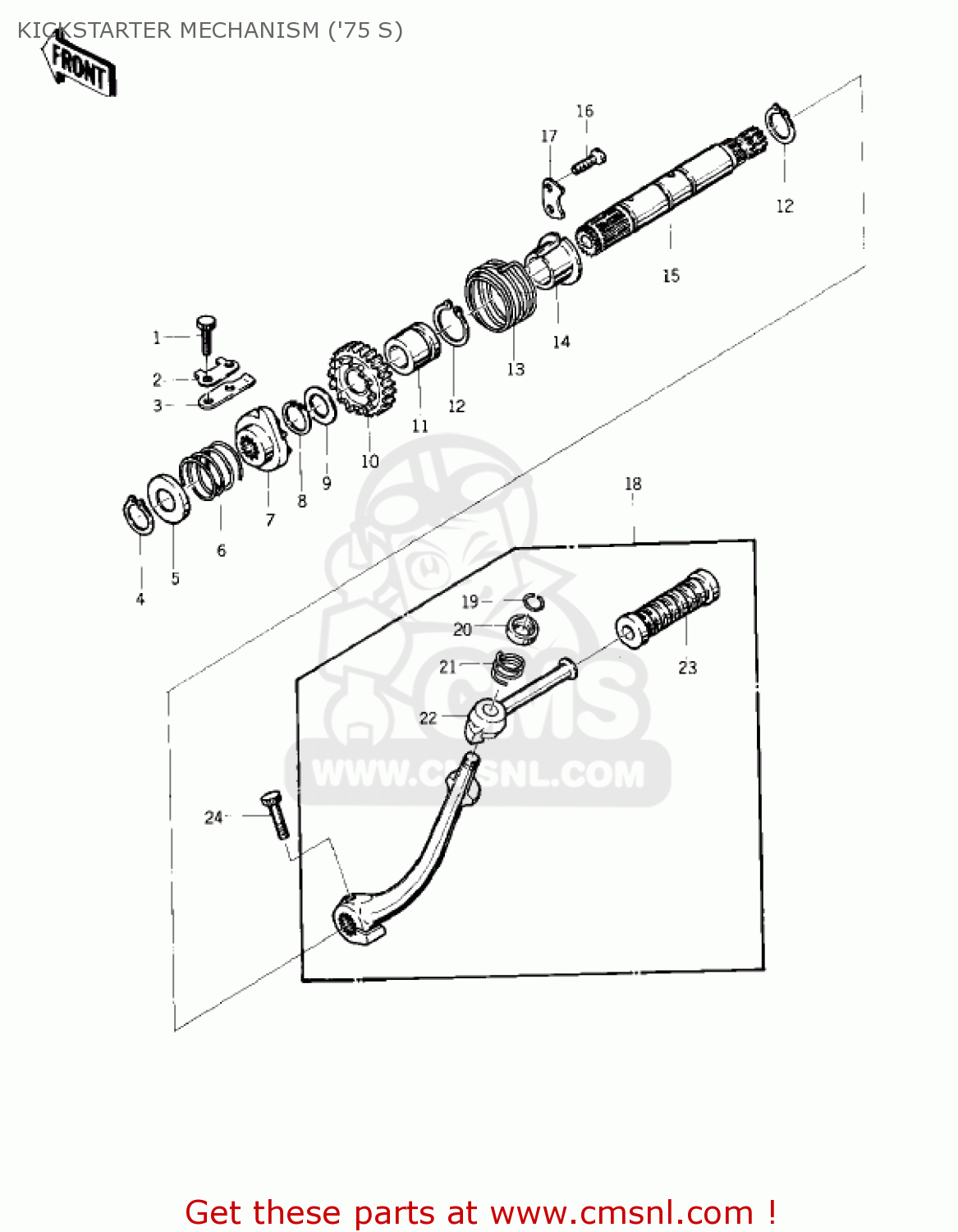

Kickstarter mechanism ('75 s) diagram KZ400S SPECIAL 1975 USA CANADA

KICKSTARTER MECHANISM ('75 S) KZ400S SPECIAL 1975 USA CANADA

KICKSTARTER MECHANISM ('75 S) KZ400S SPECIAL 1975 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

112B0614
ref: 1

BOLT-UPSET 6X14

€ 2.50

2

92024036
ref: 2

WASHER-LOCK

€ 1.00

3

13072012
ref: 3

STOPPER,KICKSTARTER

€ 7.00

4

480J1900
ref: 4

CIRCLIP-TYPE-C,19MM

€ 1.00

5

92102008
ref: 5

CAP-KICKSTARTER

€ 4.00

6

92081104
ref: 6

SPRING-RATCHET

€ 6.50

7

13078011
ref: 7

RATCHET

€ 58.50

8

92033029
ref: 8

CIRCLIP,18MM

€ 6.50

9

92022112
ref: 9

WASHER,20.5X30X1,STEE

€ 6.00

10

13068031
ref: 10

GEAR,KICKSTARTER,23T

€ 34.50

11

92028175
ref: 11

BUSHING,KICK SHAFT

€ 12.50

12

480J2000
ref: 12

CIRCLIP-TYPE-C,20MM

€ 1.00

13

92082006
ref: 13

SPRING,KICK RETURN

€ 17.00

14

13070009
ref: 14

GUIDE,KICK SPRING

€ 8.00

15

13066036
ref: 15

SHAFT,KICKSTARTER

€ 47.00

16

221B0616
ref: 16

SCREW-CNTSNK HD,6X16

€ 0.50

17

13169007
ref: 17

PLATE-DRUM LEV POSTON

€ 9.00

18

13058053
ref: 18

PEDAL ASY,KICKSTRTER

€ 267.50

19

92036025
ref: 19

CIRCLIP,KICK

€ 3.50

20

92022294
ref: 20

WASHER,KICKPEDAL

€ 1.50

21

92081136
ref: 21

SPRING,KICK PEDAL

€ 7.50

22

13060017
ref: 22

PEDAL,KICKSTARTER

€ 14.50

23

13063004
ref: 23

DAMPER,KICK PEDAL

€ 6.50

24

114G0828
ref: 24

BOLT-SMALL,8X28

€ 2.50
