CARBURETOR PARTS ('75 S)
KZ400S SPECIAL 1975 USA CANADA

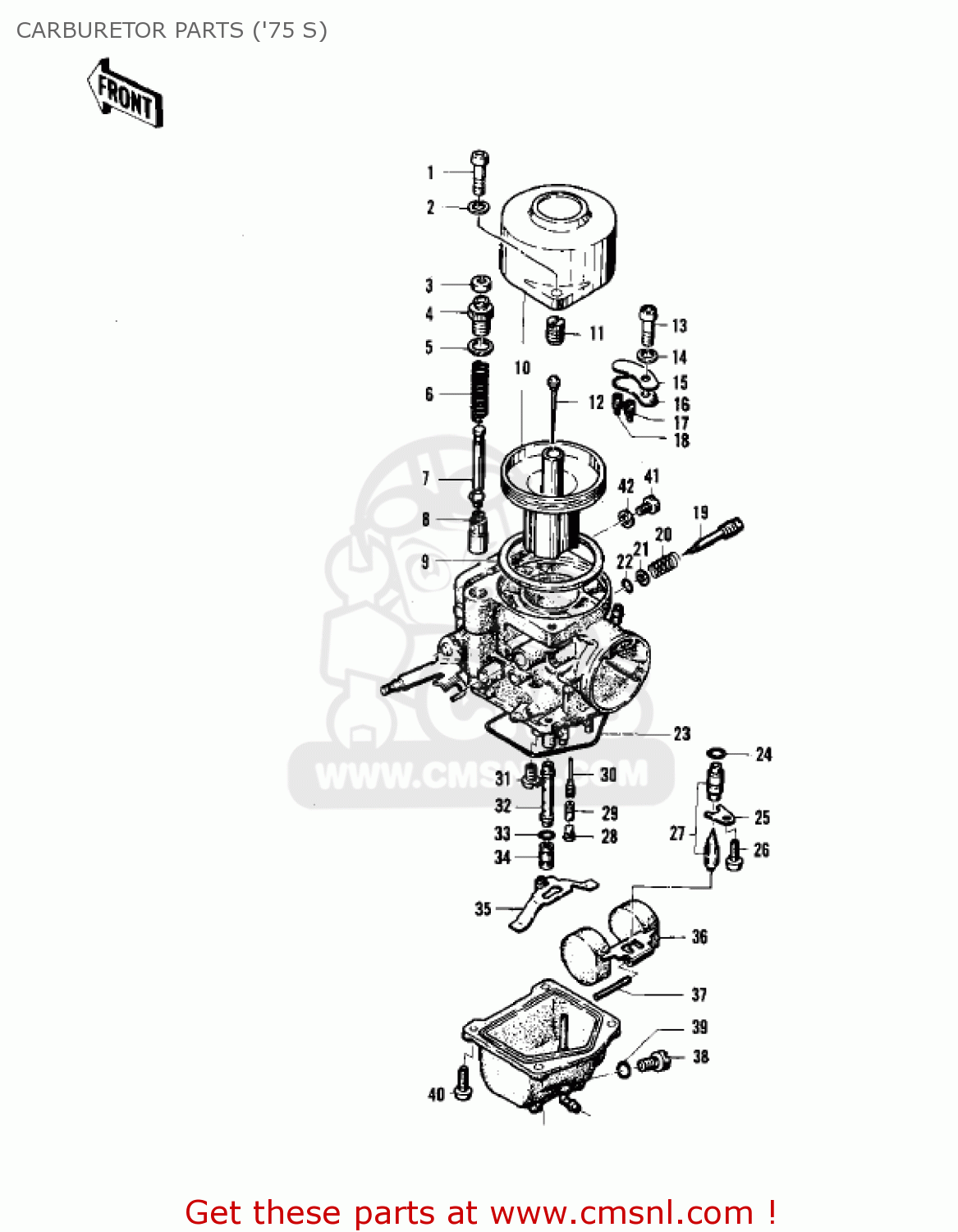

Carburetor parts ('75 s) diagram KZ400S SPECIAL 1975 USA CANADA
CARBURETOR PARTS ('75 S) KZ400S SPECIAL 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0516A
ref: 1
SCREW-PAN HEAD,5X16
€ 2.50
2
461F0500
ref: 2
WASHER-SPRING,5MM
€ 0.50
3
16036014
ref: 3
CAP,STARTER PLUNGER
€ 5.50
4
16012018
ref: 4
CAP,STARTER PLUNGER
€ 6.50
5
16039022
ref: 5
WASHER,PLAIN
€ 3.50
6
16013012
ref: 6
SPRING,STARTER PLUNG
€ 3.00
7
16041007
ref: 7
SHAFT,STARTER PLUNGR
€ 3.00
8
16016015
ref: 8
PLUNGER,STARTER
€ 34.00
9
16029008
ref: 9
GASKET,VACUUM PISTON (NAS)
€ 2.00
10
16059003
ref: 10
VACUUM PISTON&CARB CP
€ 76.00
11
16018003
ref: 11
HOLDER,JET NEEDLE
€ 3.00
12
16009069
ref: 12
JET NEEDLE,B.D.T.
€ 9.00
13
220B0406
ref: 13
SCREW-PAN-CROS,4X6
€ 2.50
14
461F0400
ref: 14
WASHER-SPRING,4MM
€ 0.50
15
16055005
ref: 15
PLATE,AIR JET
€ 1.50
16
16029009
ref: 16
GASKET,AIR JET PLATE (NAS)
€ 3.00
17
16035003
ref: 17
AIR JET,#60
€ 3.00
18
16035005
ref: 18
AIR JET,#90
€ 6.00
19
16014013
ref: 19
SCREW,PILOT ADJUST
€ 4.00
20
16015007
ref: 20
SPRING,PILOT SCREW
€ 3.50
21
16039021
ref: 21
WASHER,PLAIN,3.6MM
€ 1.50
22
16038011
ref: 22
O RING,PILOT SCREW
€ 2.50
23
16019024
ref: 23
O RING,FLOAT CHAMBER
€ 15.00
24
920551246
ref: 24
RING-O
€ 3.00
25
16055006
ref: 25
PLATE,FLOAT VALVE
€ 3.50
26
220B0406
ref: 26
SCREW-PAN-CROS,4X6
€ 2.50
27
16030023
ref: 27
VALVE-FLOAT
€ 47.50
28
16036015
ref: 28
BOOT,PILOT JET RUBBER
€ 3.00
29
92064043
ref: 29
PILOT JET,#35
€ 7.50
30
16158002
ref: 30
JET-SLOW,#35
€ 14.00
31
16157002
ref: 31
STARTER JET,#72
€ 10.00
32
16017088
ref: 32
NEEDLE JET
€ 13.00
33
16038013
ref: 33
GASKET,MAIN JET
€ 3.50
34
92063137
ref: 34
MAIN JET,#125
€ 12.00
34
92063136
ref: 34
OPTION
MAIN JET,#115
€ 4.50
34
92063129
ref: 34
OPTION
MAIN JET,#120
€ 5.50
34
92063130
ref: 34
OPTION
MAIN JET,#130
€ 9.50
34
92063128
ref: 34
OPTION
MAIN JET,#135
€ 8.00
34
92063138
ref: 34
OPTION
MAIN JET,#140
€ 5.00
34
92063131
ref: 34
OPTION
JET,MAIN,#150
€ 10.00
34
92063132
ref: 34
OPTION
JET,MAIN,#160
€ 13.00
35
16055007
ref: 35
PLATE,MAIN JET
€ 3.00
36
16031027
ref: 36
FLOAT
€ 25.50
37
16032007
ref: 37
FLOAT PIN
€ 3.00
38
16033018
ref: 38
SCREW,DRAIN
€ 3.50
39
920551003
ref: 39
RING-O,DRAIN SCREW
€ 2.50
40
220B0410
ref: 40
FOR 16055-008
SCREW-PAN-CROS
€ 2.00
41
16033019
ref: 41
SCREW,PLUG
€ 3.00
42
16039028
ref: 42
WASHER,PLAIN,6MM
€ 3.00
