HEADLIGHT ('76-'77 S2/S3)

KZ400S SPECIAL 1975 USA CANADA

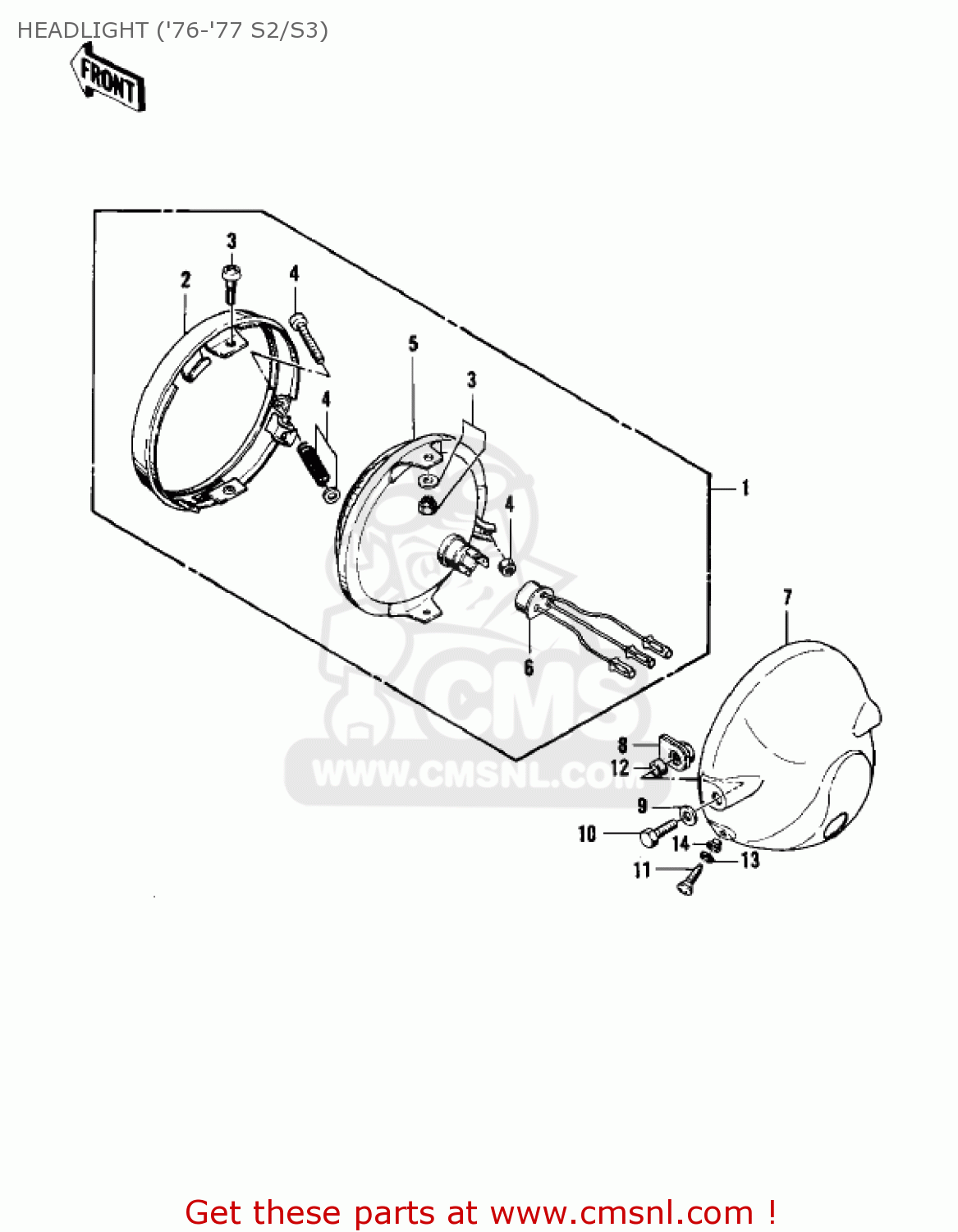

Headlight ('76-'77 s2/s3) diagram KZ400S SPECIAL 1975 USA CANADA

prices are in EUR

ref

part #

description

quantity

23003022
ref: 1

LAMP-HEAD

€ 332.50

23006044
ref: 2

RIM-LAMP

€ 65.50

23013009
ref: 3

LENS UNIT SCREW ASSEMBLY

€ 28.50

23013008
ref: 4

FOCUS ADJUSTING SCREW ASSEMBLY

€ 37.50

23007059
ref: 5

LENS-COMP,001-1269 MA

€ 75.00

23008037
ref: 6

SOCKET-ASSY,HEAD LAMP

€ 12.50

23005053
ref: 7

HEADLAMP BODY

€ 210.00

23020021
ref: 8

NUT,10MM

€ 4.00

411B1000
ref: 9

WASHER-PLAIN,10MM

€ 0.50

92007045
ref: 10

BOLT, HEX HEAD, 10X25

€ 6.00

92011024
ref: 11

SCREW-PAN HEAD,5MM

€ 2.00

92027231
ref: 12

COLLAR,10.2X13.4X8.1

€ 4.50

461F0500
ref: 13

WASHER-SPRING,5MM

€ 0.50

23021010
ref: 14

WASHER

€ 2.50
