CYLINDER/PISTONS/CRANKSHAFT ('75

KZ400S SPECIAL 1975 USA CANADA

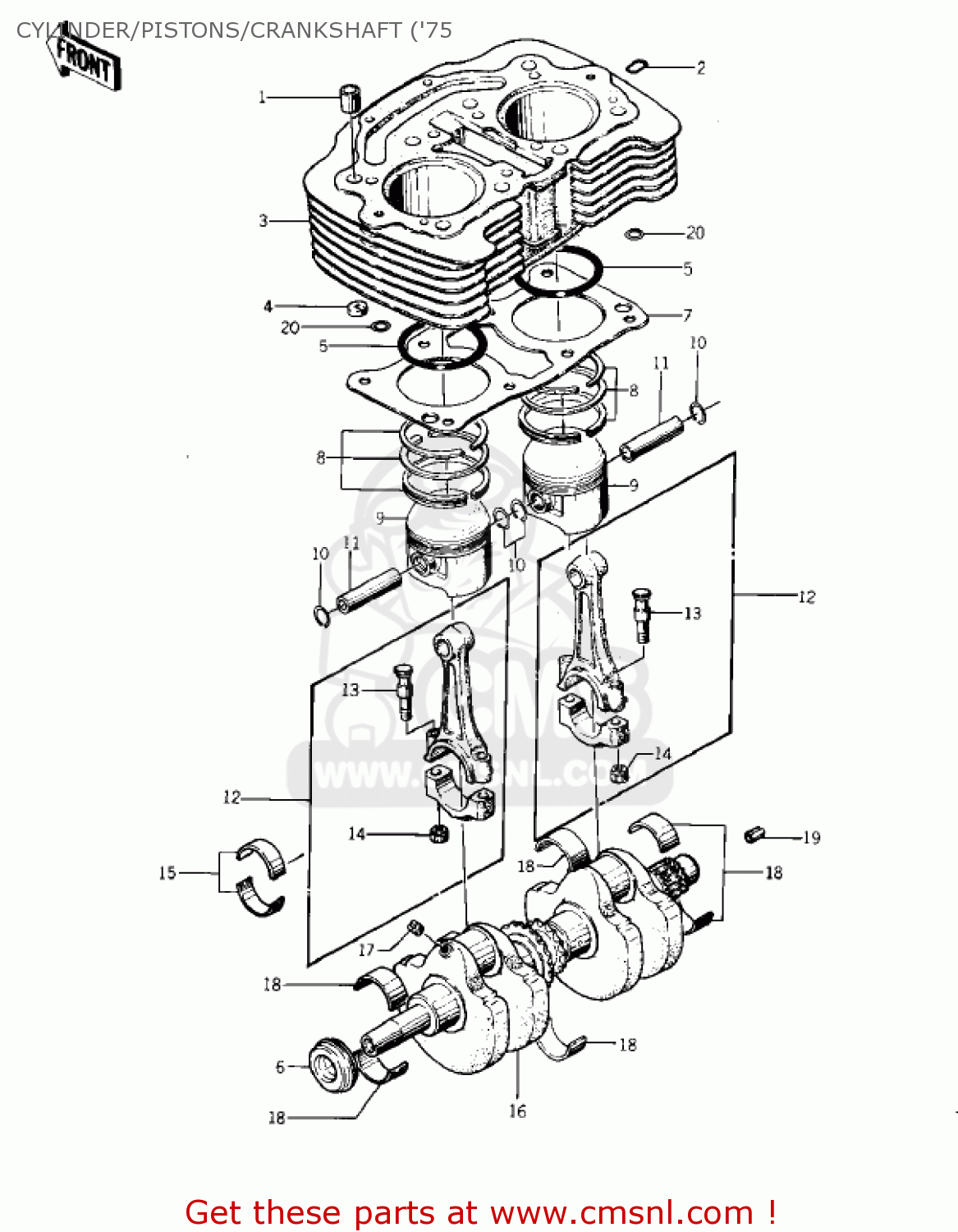

Cylinder/pistons/crankshaft ('75 diagram KZ400S SPECIAL 1975 USA CANADA

CYLINDER/PISTONS/CRANKSHAFT ('75 KZ400S SPECIAL 1975 USA CANADA

CYLINDER/PISTONS/CRANKSHAFT ('75 KZ400S SPECIAL 1975 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92042032
ref: 1

PIN,DOWEL,14MM

€ 3.00

2

110091012
ref: 2

GASKET,CYLINDER

€ 9.00

3

11005146
ref: 3

CYLINDER

€ 442.00

4

92075256
ref: 4

DAMPER RUBBER,CYLNDR

€ 1.50

5

92055056
ref: 5

RING-O

€ 16.00

6

92050064
ref: 6

OIL SEAL,L.H CRNKSFT

€ 12.50

7

11009040
ref: 7

GASKET,CYLINDER BASE (MCA)

€ 9.50

8

130085028
ref: 8

RING-SET-PISTON,STD

€ 56.50

8

130255013
ref: 8

RING SET,0.020,O/S

€ 54.00

8

130245012
ref: 8

RING SET,0.040,O/S

€ 28.50

9

13001069
ref: 9

PISTON,STD

€ 52.50

9

13029070
ref: 9

PISTON,0.020 'O.S

€ 52.50

9

13027063
ref: 9

PISTON,0.040 'O.S

€ 47.50

10

92036005
ref: 10

CIRCLIP-PISTON PIN

€ 2.50

11

13002029
ref: 11

PIN,PISTON

€ 9.50

12

13032046HH
ref: 12

CONNECTING ROD ASSY

€ 96.00

12

13032046II
ref: 12

CONNECTING ROD ASSY

€ 153.00

12

13032046JJ
ref: 12

CONNECTING ROD ASSY

€ 96.00

12

13032046KK
ref: 12

CONNECTING ROD ASSEMBLY,K,13032-O46-JJ

€ 460.50

13

92001169
ref: 13

BOLT, CONNECTING ROD

€ 3.00

13

92001169
ref: 13

BOLT, CONNECTING ROD

€ 3.00

14

92016053
ref: 14

NUT,CONNECTING ROD

€ 4.50

14

920151311
ref: 14

NUT,FLANGED,8MM

€ 4.50

15

13034037
ref: 15

METAL,CONROD,BRG

€ 16.00

15

13034047
ref: 15

METAL,CONNECTING ROD

€ 9.50

15

13034048
ref: 15

METAL,CONNECTING ROD

€ 12.50

16

13037061
ref: 16

CRANKSHAFT ASSY

€ 925.00

17

291H0608
ref: 17

SCREW,SLOTTED,6X8

€ 1.50

18

920281102
ref: 18

BUSHING,CRANKSHAFT,BR

€ 11.00

19

555A0408
ref: 19

PIN-SPRING,4X8

€ 2.50

20

92055074
ref: 20
- E/NO. 011609

O RING

€ 5.50

20

92055090
ref: 20
E/NO. 011610 -

RING-O

€ 5.50
