CARBURETOR ASSY ('75 S)
KZ400S SPECIAL 1975 USA CANADA

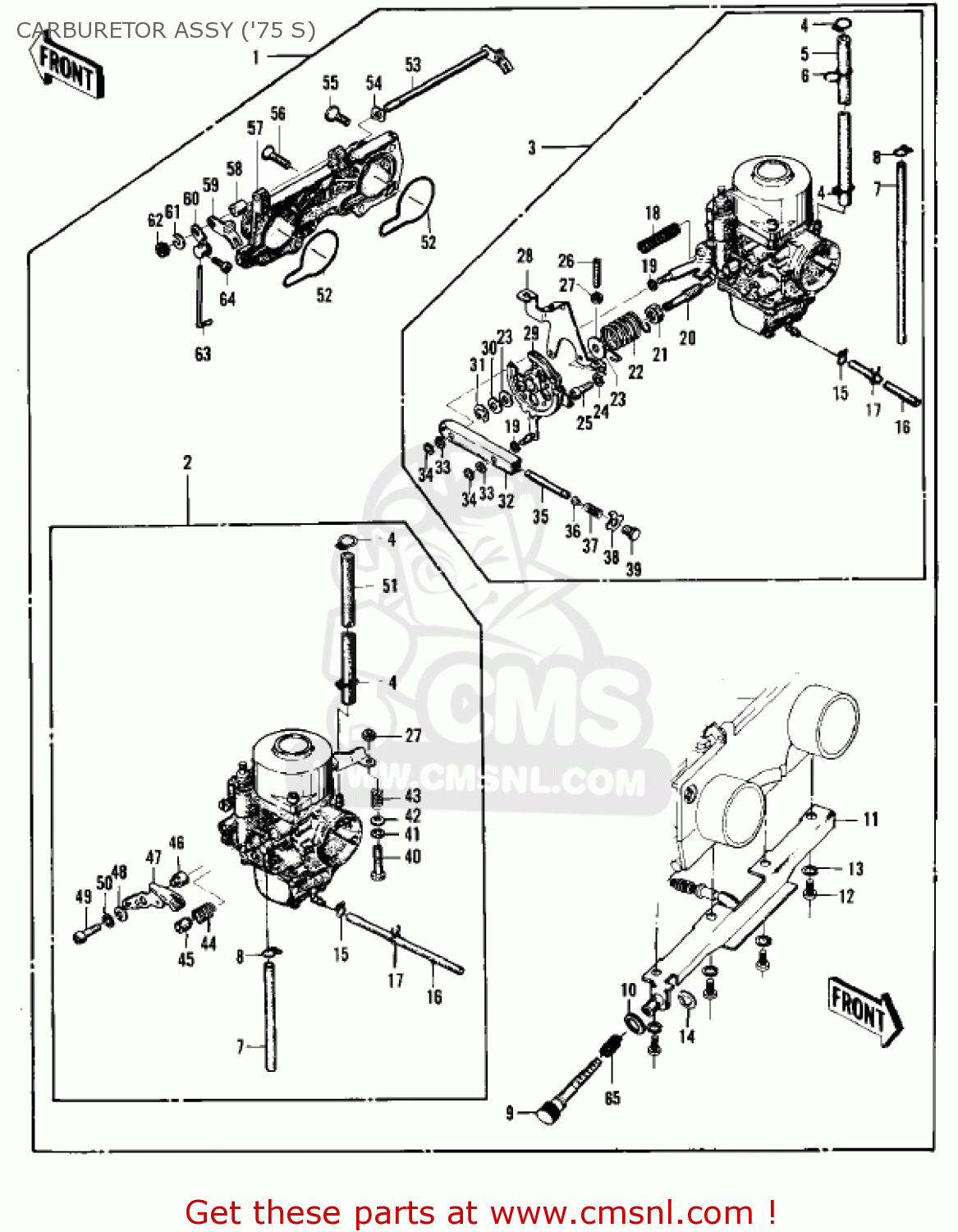

Carburetor assy ('75 s) diagram KZ400S SPECIAL 1975 USA CANADA
CARBURETOR ASSY ('75 S) KZ400S SPECIAL 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16001246
ref: 1
CARBURETOR ASSY
€ 698.00
2
16001247
ref: 2
CARBURETOR,R.H
€ 324.50
3
16001248
ref: 3
CARBURETOR,L.H
€ 303.50
4
920371040
ref: 4
CLAMP,FUEL HOSE
€ 2.00
5
92059112
ref: 5
5.3 X 240 MM
HOSE,FUEL
€ 8.50
6
16044005
ref: 6
CLAMP,FUEL HOSE
€ 1.50
7
92059110
ref: 7
HOSE
€ 11.50
8
16044004
ref: 8
CLAMP,HOSE
€ 1.00
9
16021024
ref: 9
SCREW,THROTTLE STOP
€ 13.00
10
16039029
ref: 10
FOR 16055-008
WASHER,PLAIN,7MM
€ 1.50
11
16055008
ref: 11
UP THRU F/NOS. 00453
PLATE,THR STOP SCREW
€ 3.00
11-1
16065044
ref: 11-1
AFTER F/NOS. 004539
STAY PLATE,THR.STP SC
€ 9.50
12
220B0412
ref: 12
FOR 16055-008
SCREW-PAN CROS 4X12
€ 0.50
12-1
220B0416
ref: 12-1
FOR 16065-044
SCREW-PAN-CROS
€ 2.00
13
461F0400
ref: 13
FOR 16055-008
WASHER-SPRING,4MM
€ 0.50
14
482J6000
ref: 14
CIRCLIP-TYPE-E,6MM
€ 0.50
15
920371142
ref: 15
CLAMP,TUBE
€ 2.50
16
92059111
ref: 16
3.5 X 360 MM
HOSE,FUEL OVERFLOW
€ 17.50
17
16044002
ref: 17
CLAMP,OVERFLOW HOSE
€ 1.00
18
16040013
ref: 18
SPRING,THR CABLE PLY
€ 2.00
19
16034009
ref: 19
WASHER,WAVE
€ 1.00
20
16041008
ref: 20
SCREW,BALANCE ADJUST
€ 7.00
21
16003010
ref: 21
NUT,5MM
€ 1.50
22
16040011
ref: 22
SPRING,ADJUST
€ 6.50
23
16039023
ref: 23
WASHER,PLAIN
€ 0.50
24
461F0500
ref: 24
WASHER-SPRING,5MM
€ 0.50
25
220B0510
ref: 25
SCREW-PAN-CROS,5X10
€ 0.50
26
16046006
ref: 26
SCREW,SLOTTED
€ 1.50
27
16003011
ref: 27
NUT,5MM
€ 1.50
28
16070002
ref: 28
HOLDER,THR CABL PULY
€ 10.50
29
16074003
ref: 29
PULLEY,THROTTLE CABL
€ 23.50
30
16039024
ref: 30
WASHER,PLAIN,8MM
€ 0.50
31
482J6000
ref: 31
CIRCLIP-TYPE-E,6MM
€ 0.50
32
16071002
ref: 32
LINK,ADJUSTER
€ 15.00
33
16039030
ref: 33
WASHER,PLAIN,3MM
€ 1.50
34
16008013
ref: 34
CIRCLIP
€ 1.00
35
16002015
ref: 35
ROD,CABLE ADJUSTING
€ 3.00
36
16042007
ref: 36
PLUG,CABLE ADJST ROD
€ 1.00
37
16040012
ref: 37
SPRING,CABLE ADJUST
€ 1.50
38
16054006
ref: 38
WASHER,LOCK,7MM
€ 1.50
39
16067007
ref: 39
BOLT,HEX HEAD,7MM
€ 3.00
40
16021025
ref: 40
SCREW,THROTTLE STOP
€ 3.50
41
16039025
ref: 41
WASHER,PLAIN,5MM
€ 2.00
42
16039026
ref: 42
WASHER,PLAIN,5MM
€ 0.50
43
16022012
ref: 43
SPRING,THR STOP SCRE
€ 1.00
44
16040014
ref: 44
SPRING,CHOKE LEVER
€ 4.00
45
16147002
ref: 45
CONTACT,CHOKE LEVER
€ 7.00
46
16073010
ref: 46
COLLAR,CHOKE LEVER
€ 3.50
47
16063006
ref: 47
LEVER,CHOKE
€ 7.00
48
16039027
ref: 48
WASHER,PLAIN
€ 1.00
49
220B0520
ref: 49
SCREW-PAN-CROS
€ 0.50
50
461F0500
ref: 50
WASHER-SPRING,5MM
€ 0.50
51
92059113
ref: 51
5.3 X 150 MM
HOSE,FUEL
€ 7.50
52
16038015
ref: 52
GASKET,CARBURETOR MOU
€ 9.00
53
16041009
ref: 53
SHAFT,THROTTLE VALVE
€ 9.50
54
16034010
ref: 54
WASHER,WAVE
€ 1.50
55
220B0616
ref: 55
SCREW-PAN HEAD,6X16
€ 2.50
56
220B0620
ref: 56
SCREW-PAN HEAD,6X20
€ 2.50
57
16070003
ref: 57
PLATE,CARB MOUNTING
€ 43.00
58
16073011
ref: 58
COLLAR,CHOKE LEVSFT
€ 1.00
59
16063007
ref: 59
LEVER,THROTTLE VALVE
€ 3.00
60
16063008
ref: 60
LEVER,THROTTLE VALVE
€ 4.00
61
16054007
ref: 61
WASHER,LOCK,6MM
€ 1.50
62
16003012
ref: 62
NUT,6MM
€ 1.00
63
16024013
ref: 63
ROD
€ 1.50
64
220B0305A
ref: 64
SCREW-PAN HEAD,3X5
€ 1.00
65
16022011
ref: 65
SPRING,THR STOP SCRE
€ 4.50
