CRANKCASE ('76-'77 S2/S3)
KZ400S SPECIAL 1975 USA CANADA

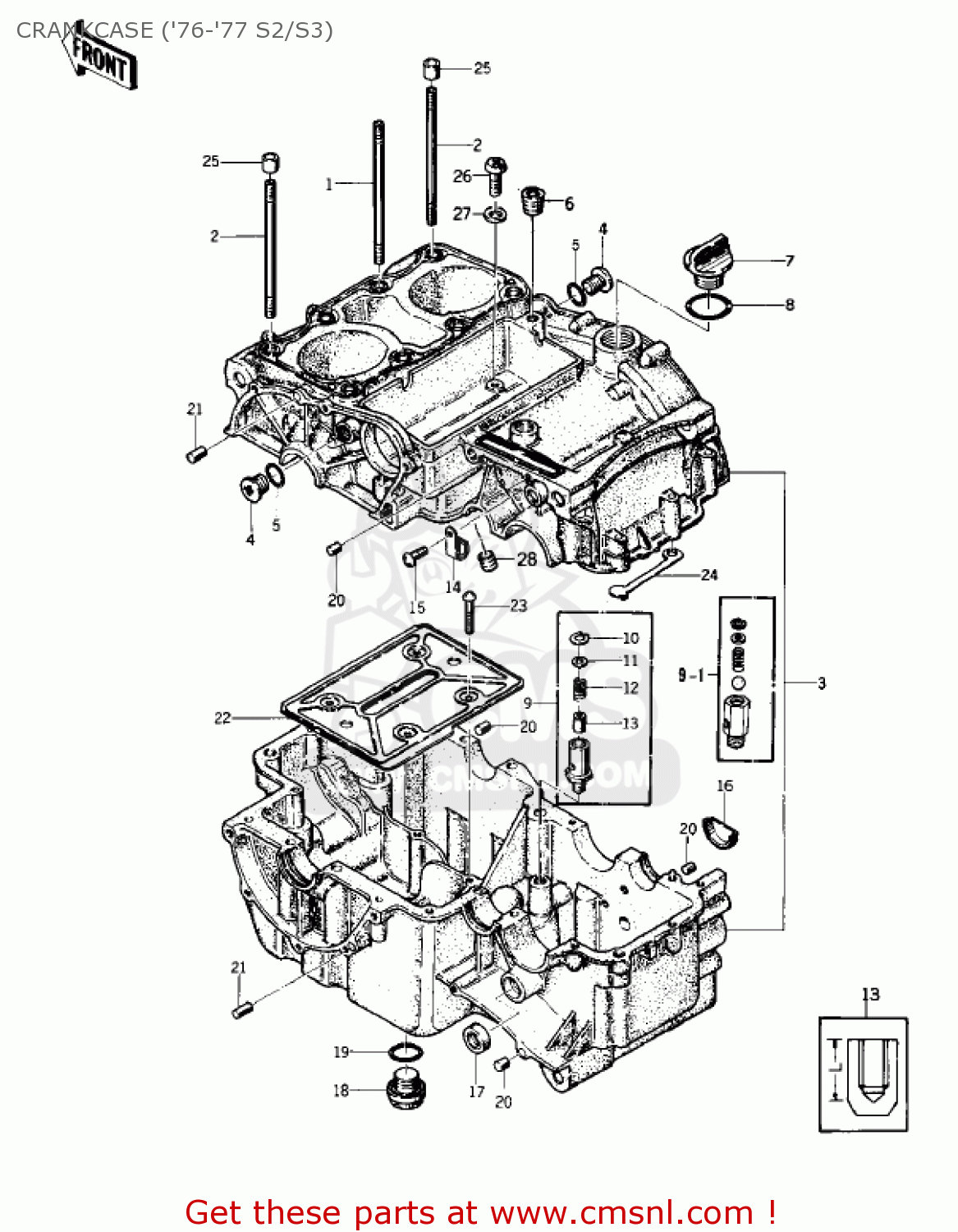

Crankcase ('76-'77 s2/s3) diagram KZ400S SPECIAL 1975 USA CANADA
CRANKCASE ('76-'77 S2/S3) KZ400S SPECIAL 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92004052
ref: 1
STUD,8X201
€ 3.00
2
92004053
ref: 2
STUD,8X190
€ 3.00
3
14001102
ref: 3
KZ400-S2
CRANKCASE SET,W/STUD
€ 1,025.50
3
14001102
ref: 3
KZ400-S3
CRANKCASE SET,W/STUD
€ 1,025.50
4
92066067
ref: 4
PLUG
€ 4.00
5
92055073
ref: 5
RING-O,13.5MM
€ 6.50
6
92066059
ref: 6
PLUG,PT1/8X7
€ 3.00
7
16115013
ref: 7
PLUG-OIL FILLER
€ 13.50
8
92055049
ref: 8
'0'RING,31MM
€ 2.50
9
161301001
ref: 9
- E/NO. 027555
VALVE-ASSY-RELIEF
€ 28.50
9-1
161301001
ref: 9-1
E/NO. 0275560 -
VALVE-ASSY-RELIEF
€ 28.50
10
481J1200
ref: 10
USE 16130-1001
CIRCLIP,12MM
€ 1.00
11
92026097
ref: 11
USE16130-1001
SPACER,RELEAF VALVE
€ 1.00
12
16133003
ref: 12
USE 16130-1001
SPRING,RELEAF VALVE
€ 1.50
13
16126002
ref: 13
USE 16130-1001
PISTON,RELEAF VALVE
€ 7.00
14
21126008
ref: 14
KZ400-S2
CLAMP,WIRING HARNESS
€ 3.00
14
21126008
ref: 14
KZ400-S3
CLAMP,WIRING HARNESS
€ 3.00
15
220B0612
ref: 15
SCREW-PAN HEAD,6X12
€ 1.00
16
14015005
ref: 16
RECEIVER,OIL
€ 8.50
17
92051005A
ref: 17
OIL SEAL,TB13225.5
€ 5.50
18
920661174
ref: 18
PLUG,OIL DRAIN,12X15
€ 4.00
19
92065097
ref: 19
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
20
92042007
ref: 20
PIN-DOWEL
€ 4.00
21
551A0612
ref: 21
PIN-DOWEL,6X12
€ 0.50
22
14082001
ref: 22
PLATE
€ 6.00
23
220B0612
ref: 23
SCREW-PAN HEAD,6X12
€ 1.00
24
92037149
ref: 24
CLAMP,OVERFLOW HOSE
€ 1.50
25
920431037
ref: 25
PIN,DOWEL,10X8.2X14
€ 0.50
26
220B0612
ref: 26
SCREW-PAN HEAD,6X12
€ 1.00
27
92022304
ref: 27
WASHER,PLAIN
€ 2.50
28
92062011
ref: 28
NOZZLE,OIL
€ 5.50
