CARBURETOR PARTS (KZ400-S3)
KZ400S SPECIAL 1975 USA CANADA

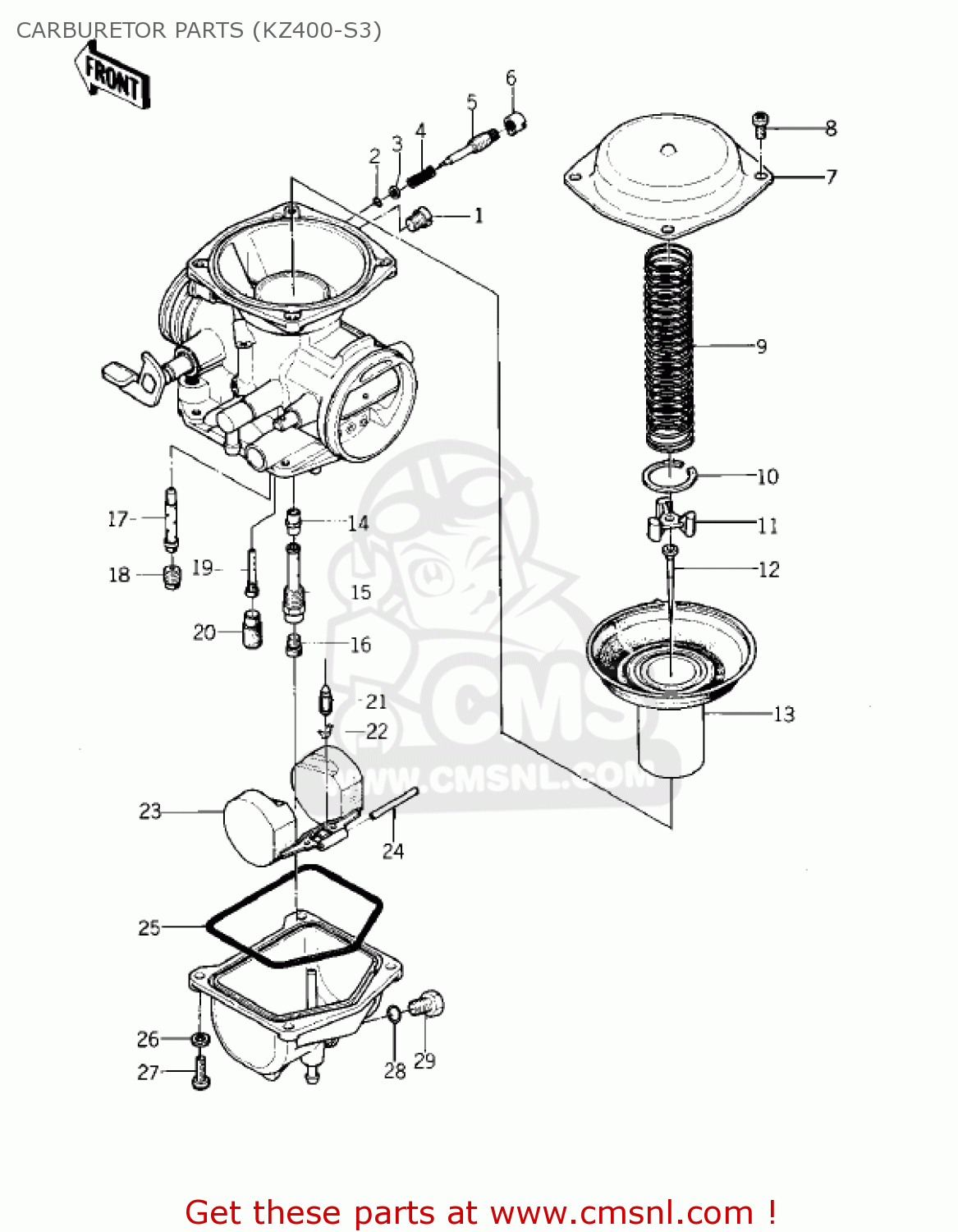

Carburetor parts (kz400-s3) diagram KZ400S SPECIAL 1975 USA CANADA
CARBURETOR PARTS (KZ400-S3) KZ400S SPECIAL 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
920091004
ref: 1
SCREW, PLUG
€ 5.50
2
920551002
ref: 2
O RING,PILOT ADJUST
€ 2.50
3
920221003
ref: 3
WASHER,PLAIN
€ 2.50
4
920811002
ref: 4
SPRING,PIROT ADJ SCRW
€ 3.50
5
160141001
ref: 5
SCREW, PIROT ADJUST
€ 10.00
6
110123727
ref: 6
CAP,JET NEEDLE
€ 2.00
7
160051001
ref: 7
TOP-CHAMBER,MIXING
€ 23.50
8
220B0408
ref: 8
SCREW-PAN-CROS
€ 0.50
9
920811001
ref: 9
SPRING
€ 10.00
10
920371005
ref: 10
CLAMP
€ 5.50
11
160071001
ref: 11
SEAT-SPRING,THROTTLE
€ 8.00
12
160091002
ref: 12
JET NEEDLE, # 003301
€ 20.50
13
161261042
ref: 13
VALVE
€ 214.00
14
160171001
ref: 14
JET-NEEDLE
€ 26.50
15
16047007
ref: 15
HOLDER, NEEDLE JET
€ 13.50
16
920631001
ref: 16
S.T.D.
JET-MAIN,#95
€ 10.00
16
920631003
ref: 16
OPTION
MAIN JET, 2ND, # 90
€ 9.50
16
920631004
ref: 16
OPTION
JET-MAIN,#92
€ 10.00
16
920631005
ref: 16
OPTION
JET-MAIN,#98
€ 10.00
16
920631006
ref: 16
OPTION
MAIN JET, 2ND, # 100
€ 9.00
17
920621001
ref: 17
NOZZLE,MAIN
€ 15.50
18
920631002
ref: 18
S.T.D.
JET-MAIN,PRI,#70
€ 10.00
19
920641001
ref: 19
JET-PILOT,#35
€ 14.00
20
160121001
ref: 20
CAP,RUBBER
€ 3.50
21
160301007
ref: 21
FLOAT VALVE ASSY
€ 37.00
22
16044007
ref: 22
CLIP, FLOAT VALVE
€ 4.00
23
160311001
ref: 23
FLOAT
€ 38.50
24
920431002
ref: 24
PIN,FLOAT
€ 3.50
25
16019024
ref: 25
O RING,FLOAT CHAMBER
€ 15.00
26
461F0400
ref: 26
WASHER-SPRING,4MM
€ 0.50
27
220B0412
ref: 27
SCREW-PAN CROS 4X12
€ 0.50
28
920551003
ref: 28
RING-O,DRAIN SCREW
€ 2.50
29
920091003
ref: 29
SCREW, DRAIN
€ 7.00
