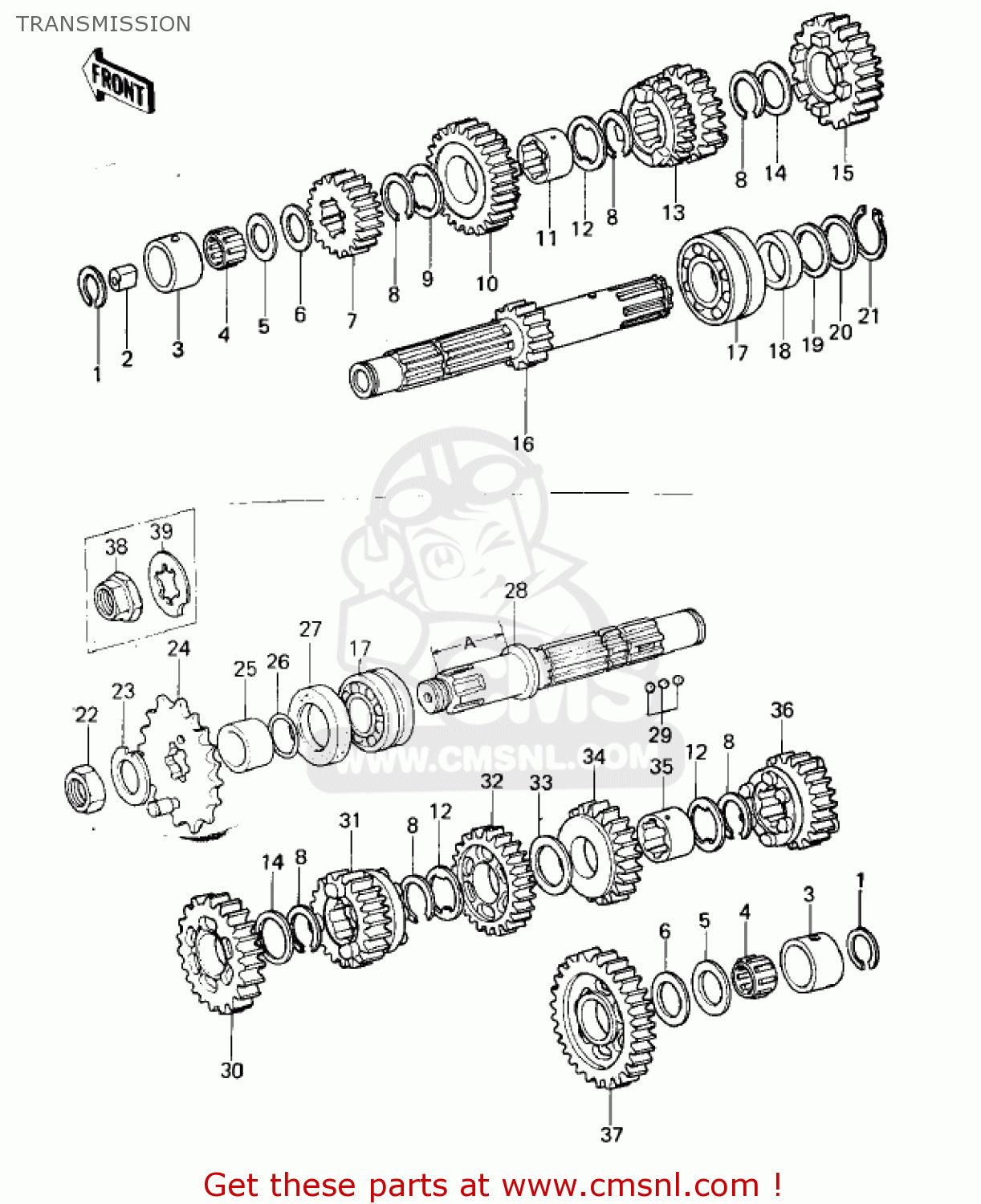

TRANSMISSION

ref

part #

description

quantity

1

92033015
ref: 1

CIRCLIP

€ 2.50

2

92028155
ref: 2

BUSHING,DRIVE SHAFT

€ 9.50

3

920481001
ref: 3

RACE,OUTPUT AND DRIVE

€ 13.00

4

92046044
ref: 4

BEARING-NEEDLE,20R251

€ 23.00

5

92022144
ref: 5

SHIM-KICK SHAFT

€ 4.50

6

92022112
ref: 6

WASHER,20.5X30X1,STEE

€ 6.00

7

131291062
ref: 7

2ND GEAR,DRIVE SHAFT

€ 30.00

8

92033026
ref: 8

CIRCLIP

€ 6.00

9

92024033
ref: 9

WASHER,TOOTHED,25.5X3

€ 4.50

10

131291055
ref: 10

TOP GEAR,DRIVE SHAFT

€ 65.00

11

920281002
ref: 11

BUSHING,TOP DRIVE

€ 26.00

12

92024038
ref: 12

WASHER-LOCK

€ 4.00

13

131291054
ref: 13

3RD-4TH GEAR,DRIVE

€ 80.50

14

92022159
ref: 14

WASHER-THRUST,25MM

€ 5.50

15

131291277
ref: 15

GEAR,INPUT5TH,23T

€ 67.00

16

131271004
ref: 16

SHAFT,DRIVE,13T

€ 109.50

17

92045031
ref: 17

BEARING-BALL,5205ANX4

€ 49.50

18

92027289
ref: 18

COLLAR

€ 10.00

19

92022225
ref: 19

WASHER-THRUST

€ 3.50

20

92022302
ref: 20

WASHER,CLUTCH THRUST

€ 3.50

21

480J2400
ref: 21

CIRCLIP-TYPE-C,24MM

€ 3.50

22

92016028
ref: 22
USE FOR 13128-1004

NUT

€ 9.50

23

92024044
ref: 23
USE FOR 13128-1004

WASHER,CLAW,20.5X36X1

€ 8.00

24

131441003
ref: 24

ENGINE SPROCKET,15T

€ 28.00

25

92027288
ref: 25

COLLAR,25X32X23.5

€ 22.50

26

92055035
ref: 26

O RING

€ 3.00

27

92050024
ref: 27

OIL SEAL SC325210

€ 5.00

28

131281004
ref: 28

SHAFT,OUTPUT

€ 80.00

28

131281015
ref: 28

SHAFT-TRANSMISSION OU

€ 256.50

29

600A0500
ref: 29

BALL-STEEL,5/32

€ 0.50

30

131291057
ref: 30

2ND GEAR,OUTPUT SHAFT

€ 80.00

31

131291061
ref: 31

TOP GEAR,OUTPUT SHAFT

€ 40.00

32

131291058
ref: 32

3RD GEAR,OUTPUT SHAFT

€ 62.00

33

92026079
ref: 33

WASHER,30X38X1

€ 6.00

34

131291059
ref: 34

4TH GEAR OUTPUT

€ 47.50

35

920281268
ref: 35

BUSHING,OUTPUT GEAR

€ 21.00

36

131291060
ref: 36

5TH GEAR,OUTPUT SHAFT

€ 67.50

37

131291056
ref: 37

LOW GEAR,OUTPUT SHAFT

€ 61.00

38

920151254
ref: 38
USE FOR 13128-1015

NUT,20MM

€ 10.50

39

920221083
ref: 39
USE FOR 13128-1015

WASHER,SPLINED

€ 4.00

all assemblies
