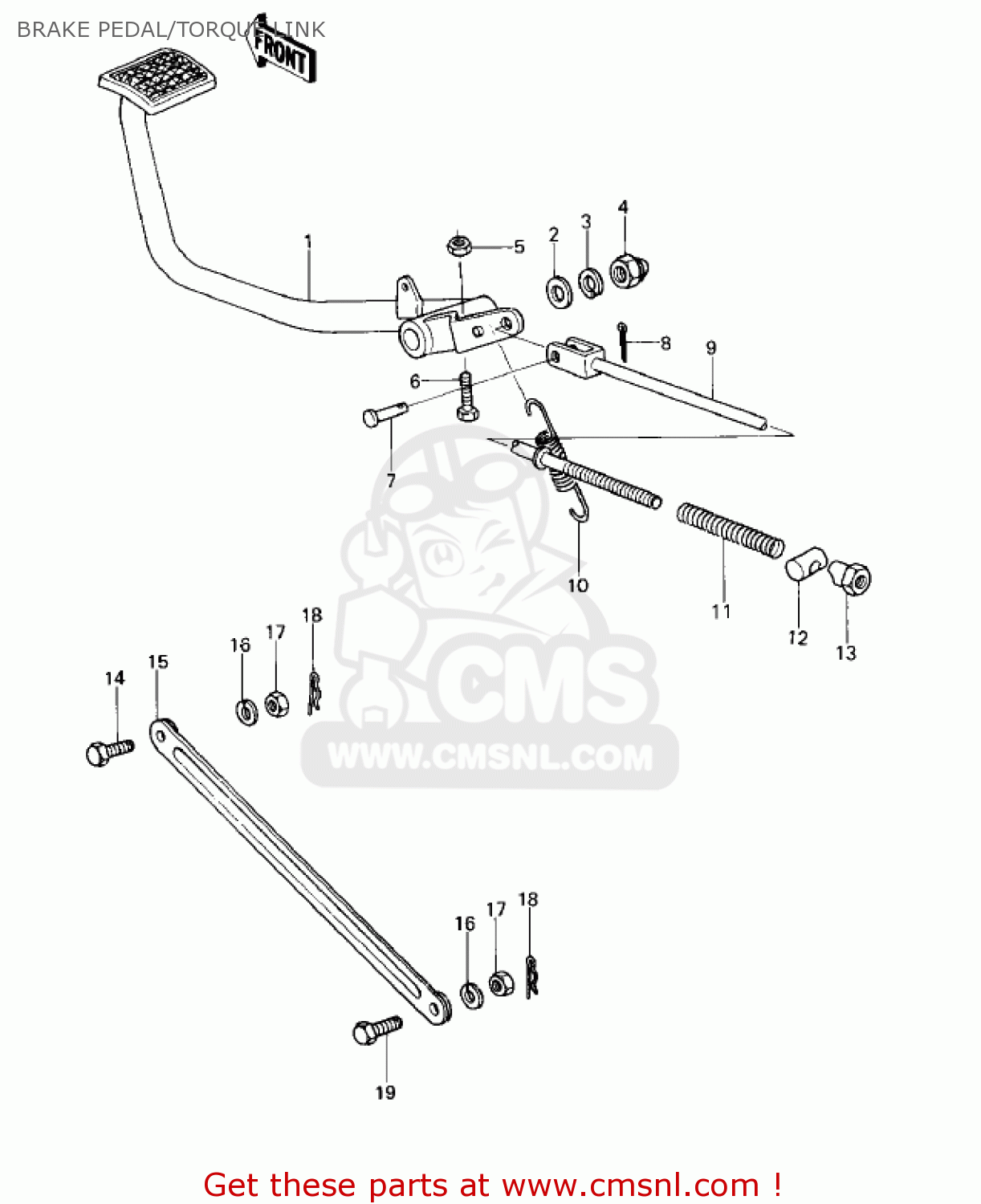

BRAKE PEDAL/TORQUE LINK

ref

part #

description

quantity

1

430011010
ref: 1

LEVER-BRAKE,PEDAL

€ 95.50

2

920221561
ref: 2

WASHER,8.5X20X1.6

€ 2.50

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

92019013
ref: 4

NUT,CAP,LOCK,8MM

€ 5.50

5

311B0600
ref: 5

NUT,6MM

€ 0.50

6

920011090
ref: 6

BOLT,HEX HEAD,6X25

€ 2.50

7

92043090
ref: 7

PIN,6X13

€ 4.00

8

550D2516
ref: 8

PIN-COTTER,2.5X16

€ 1.50

9

43011026
ref: 9

ROD,BRAKE

€ 13.00

10

43005029
ref: 10

SPRING,BRAKE PEDAL

€ 6.00

11

43012001
ref: 11

SPRING,BRAKE ROD

€ 3.00

12

92043065
ref: 12

PIN-BRAKE ROD

€ 3.50

13

92015042
ref: 13

NUT-BRAKE ROD ADJUST

€ 4.00

14

92003017
ref: 14

BOLT-TRQ LINK 10X25

€ 3.50

15

43007016
ref: 15

ROD-TORQUE,RR

€ 14.00

16

461F1000
ref: 16

WASHER-SPRING,10MM

€ 0.50

17

315B1000
ref: 17

NUT,10MM

€ 0.50

18

554A0800
ref: 18

PIN-SNAP,8MM

€ 1.00

19

92003034
ref: 19

BOLT-HEX HEAD,10MM

€ 9.00
