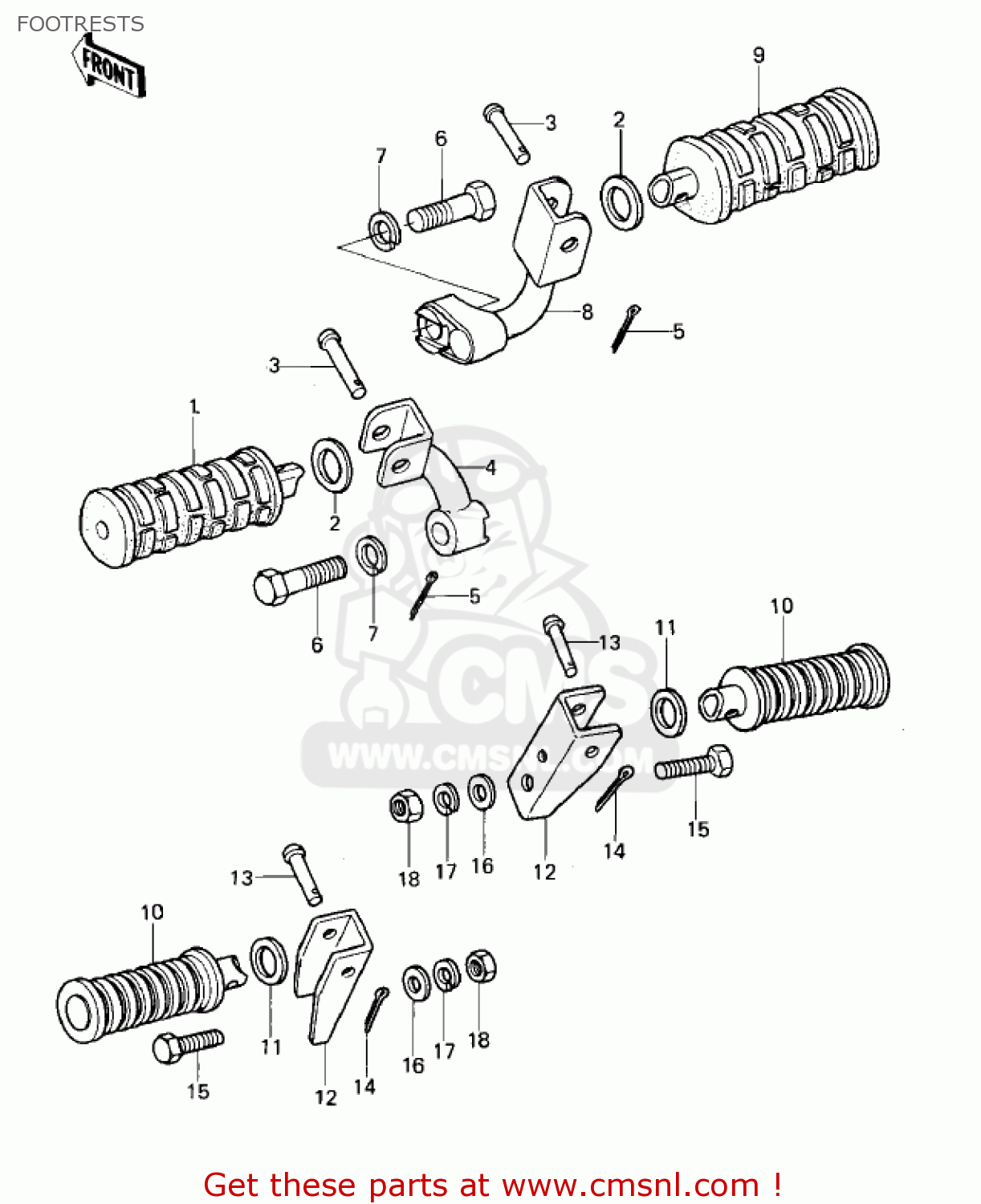

FOOTRESTS

ref

part #

description

quantity

1

34028011
ref: 1

BAR-FOOTREST,L.H

€ 24.50

2

92022250
ref: 2

WASHER,PLAIN

€ 3.00

3

92043080
ref: 3

PIN-FOOTREST BAR FIT

€ 3.50

4

340031078
ref: 4

HOLDER,STEP,L.H

€ 32.50

5

550D2516
ref: 5

PIN-COTTER,2.5X16

€ 1.50

6

113B1236A
ref: 6

BOLT-HEX HEAD,12X36

€ 3.50

7

461F1200
ref: 7

WASHER-SPRING,12MM

€ 0.50

8

340031079
ref: 8

HOLDER,STEP,R.H

€ 14.50

9

34028012
ref: 9

BAR-FOOTREST,R.H

€ 24.50

10

92076027
ref: 10

DAMPER,STEP,RR

€ 19.00

11

92022199
ref: 11

WASHER,20X30X2.3

€ 5.00

12

320541021
ref: 12

BRACKET-STEP

€ 14.00

13

920431464
ref: 13

PIN

€ 5.50

14

550D2012
ref: 14

PIN,COTTER,2.0X12

€ 0.50

15

920011254
ref: 15

BOLT,HEX HEAD,10X50

€ 2.50

16

410B1000
ref: 16

WASHER-PLAIN-SMALL,10

€ 0.50

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

314B1000
ref: 18

NUT,10MM

€ 0.50
