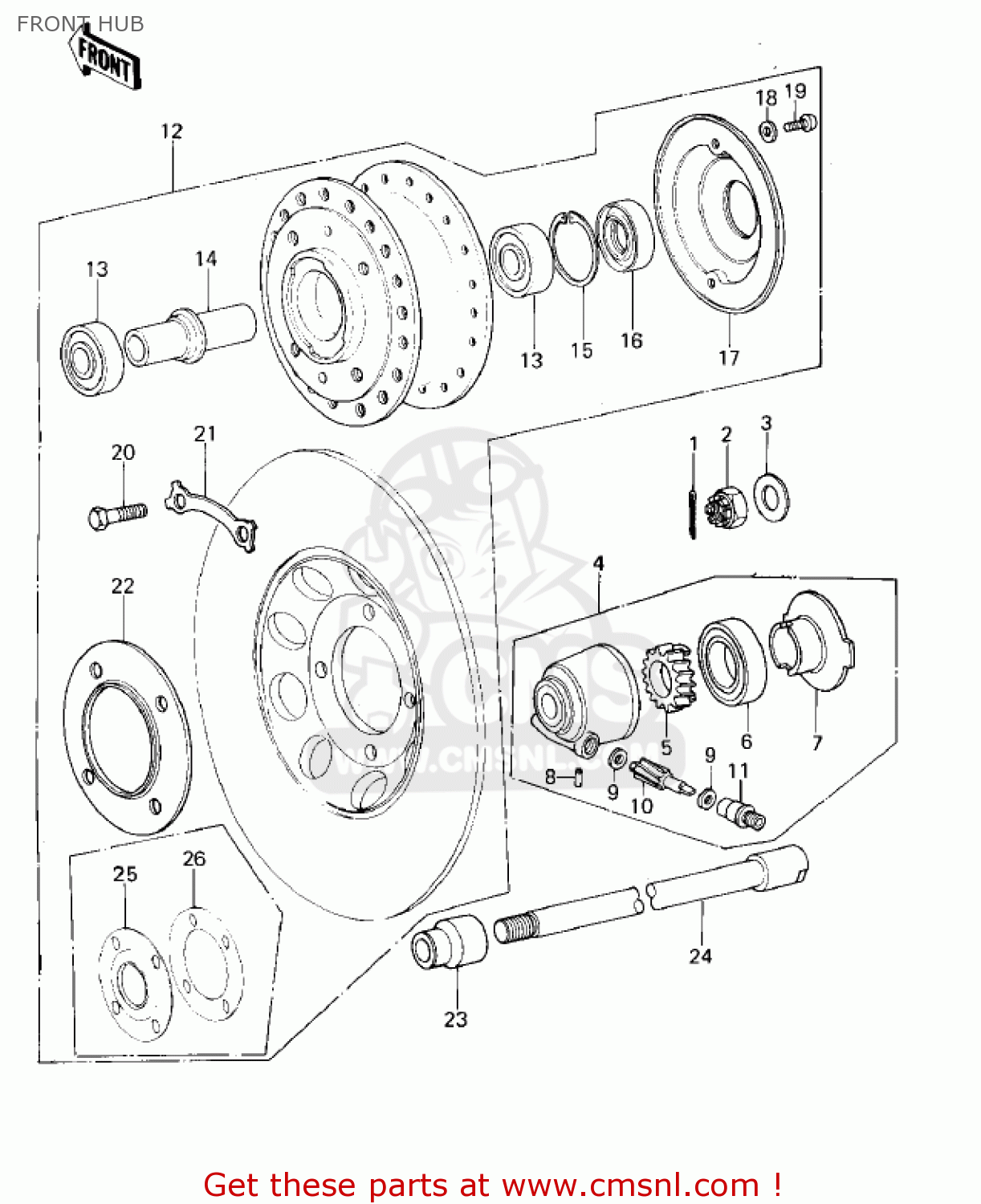

FRONT HUB

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

42045014
ref: 2

NUT CASTLE, 16M/M

€ 6.50

3

410B1600
ref: 3

WASHER,PLAIN,16M/M

€ 1.00

4

410781004
ref: 4

CASE-ASSY-METER GEAR

€ 118.00

5

410601010
ref: 5

GEAR,SPEEDOMETER

€ 19.50

6

920491057
ref: 6

OIL SEAL,BJN30427-C3

€ 7.50

7

41064013
ref: 7

RECEIVER-SPEEDOMETER

€ 11.50

8

41082001
ref: 8

PIN-SPRING

€ 2.50

9

41063001
ref: 9

WASHER-THRST SPD PINI

€ 3.00

10

41060017
ref: 10

PINION,SPEEDOMETER

€ 33.50

11

41062005
ref: 11

BUSHING,SPEEDOMETER C

€ 12.00

12

410341003
ref: 12

DRUM ASSY,FRONT BRAKE

€ 191.50

13

601B6203
ref: 13

BEARING-BALL,#6203C3

€ 10.50

14

41039028
ref: 14

COLLAR,BEARING

€ 19.50

15

920331040
ref: 15

RING,SNAP,40M/M

€ 4.00

16

654A254008
ref: 16

OIL SEAL

€ 13.00

17

41042016
ref: 17

DUST COVER

€ 19.50

18

411B0500
ref: 18

WASHER-PLAIN,5MM

€ 0.50

19

220B0512A
ref: 19

SCREW-PAN HEAD,5X12

€ 0.50

20

92001158
ref: 20

BOLT

€ 2.00

21

92088023
ref: 21

WASHER,LOCK

€ 6.00

22

490161001
ref: 22
KZ400-B1

COVER,DUST

€ 5.50

23

920271008
ref: 23
L = 29MM

COLLAR,FRONT AXLE

€ 9.00

24

410681002
ref: 24

AXLE,FRONT

€ 26.50

25

490161021
ref: 25
KZ400-B2

COVER,DUST,HUB

€ 4.50

26

490161022
ref: 26
KZ400-B2

COVER,DUST,HUB

€ 4.50
