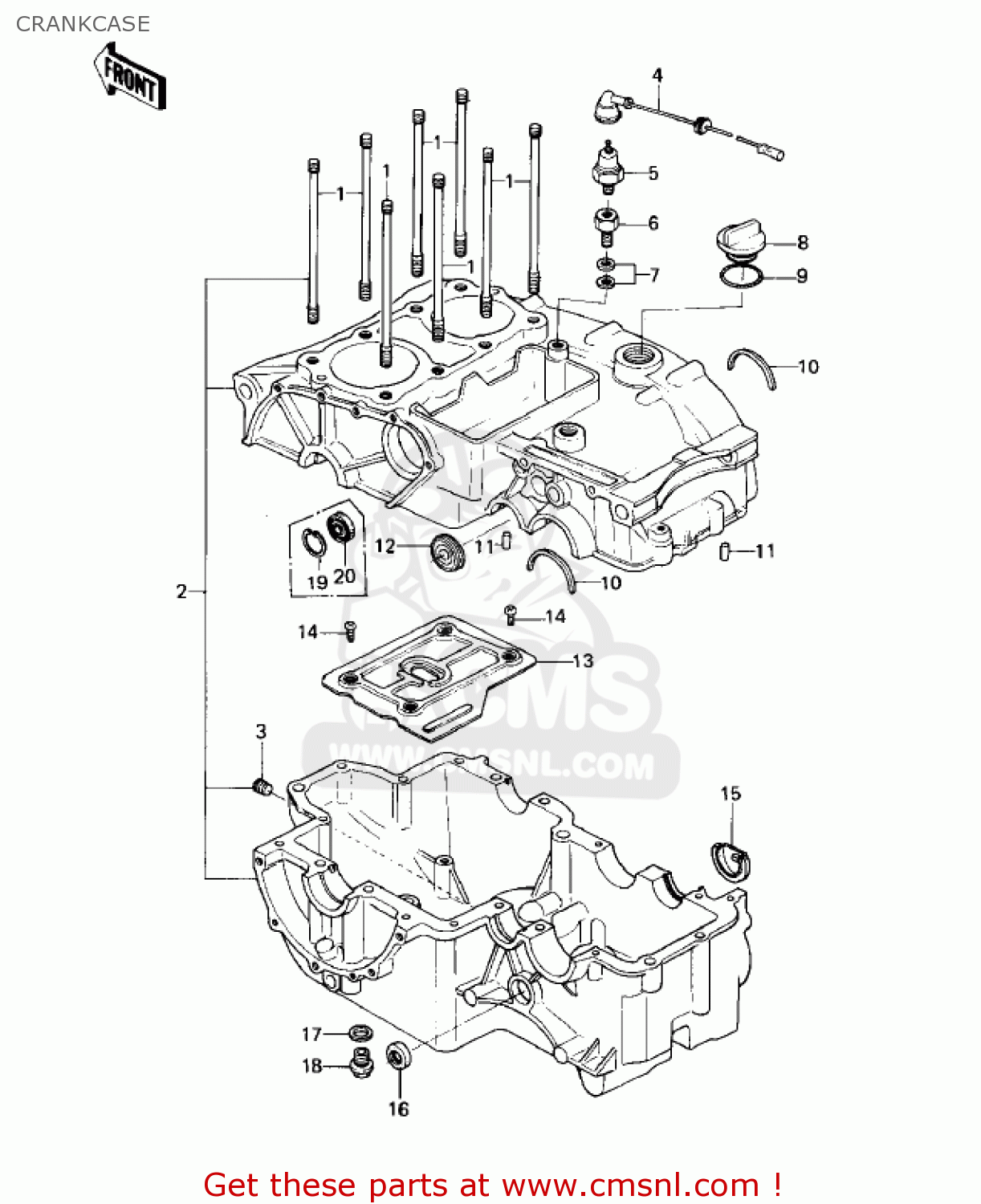

CRANKCASE

ref

part #

description

quantity

1

92004062
ref: 1

STUD, 10X153

€ 13.50

2

140015010
ref: 2
E/NO. 118001~141330

CRANKCASE SET

€ 776.00

2

140015087
ref: 2
E/NO. 141331~

SET-CRANKCASE

€ 859.50

3

92066059
ref: 3

PLUG,PT1/8X7

€ 3.00

4

260111078
ref: 4

WIRE-LEAD,OIL SWITCH

€ 12.50

5

270101157
ref: 5

SWITCH,OIL PRESSURE

€ 27.50

6

920011020
ref: 6

BOLT,OIL,SWITCH

€ 8.00

7

110091105
ref: 7

GASKET,10X14.5X1.5 (NAS)

€ 4.00

8

16115013
ref: 8

PLUG-OIL FILLER

€ 13.50

9

92055049
ref: 9

'0'RING,31MM

€ 2.50

10

14013004
ref: 10

RING-BEARING SETTING

€ 7.00

11

92042016
ref: 11

PIN,DOWEL,6X16

€ 3.50

12

92050068
ref: 12
E/NO. 118001~141330

OIL SEAL,PUSH ROD

€ 15.00

13

131691103
ref: 13

PLATE,CRANKCASE

€ 6.00

14

220B0612
ref: 14

SCREW-PAN HEAD,6X12

€ 1.00

15

130451001
ref: 15

RECEIVER-OIL

€ 10.00

16

92051005A
ref: 16

OIL SEAL,TB13225.5

€ 5.50

17

92065097
ref: 17

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

18

920661174
ref: 18

PLUG,OIL DRAIN,12X15

€ 4.00

19

481J3600
ref: 19
E/NO. 141331~

CIRCLIP-TYPE-C,36MM

€ 2.50

20

920491041
ref: 20
E/NO. 141331~

OIL SEAL,PUSH ROD

€ 13.00
