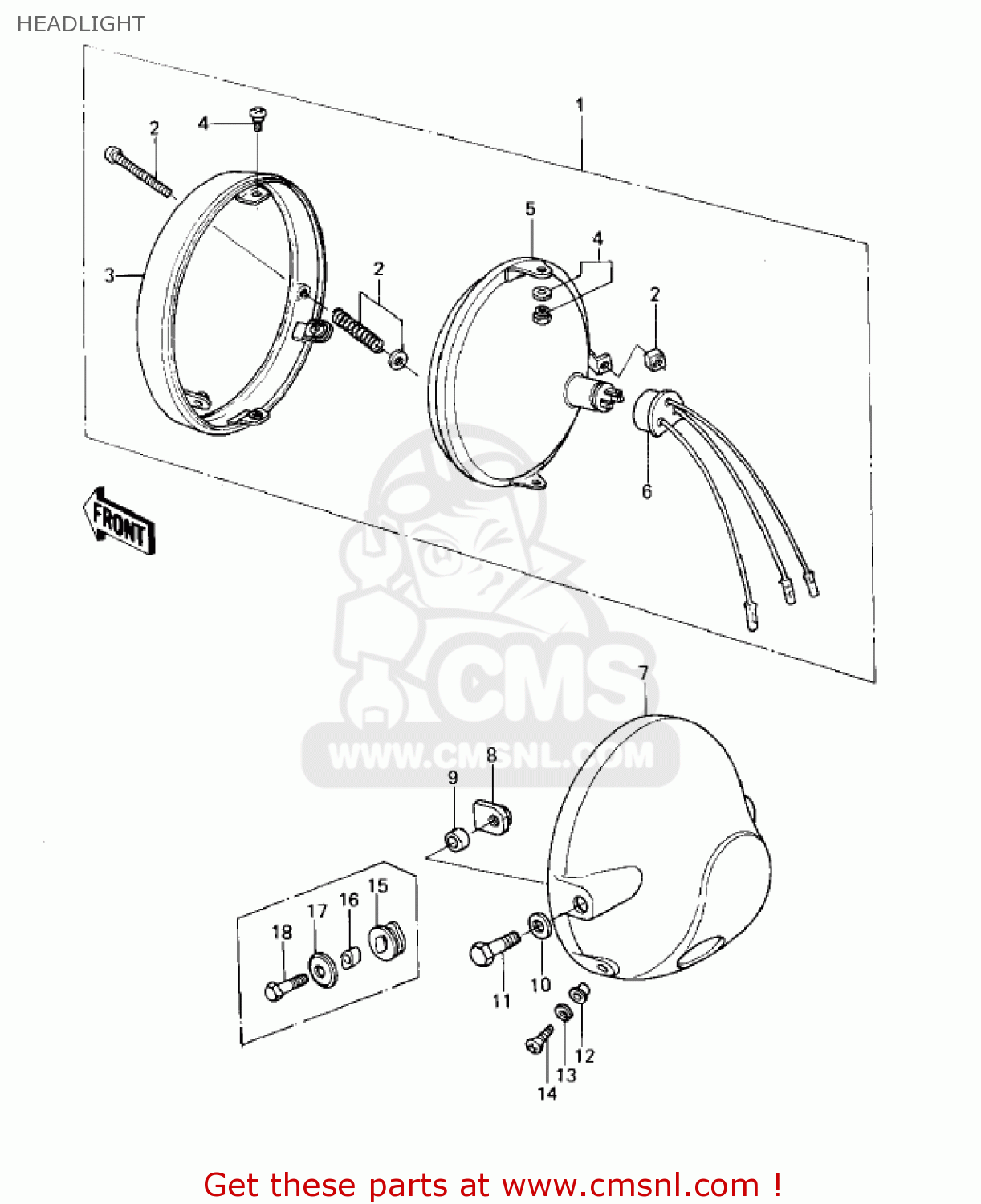

HEADLIGHT

ref

part #

description

quantity

1

23003022
ref: 1

LAMP-HEAD

€ 332.50

2

23013008
ref: 2

FOCUS ADJUSTING SCREW ASSEMBLY

€ 37.50

3

23006044
ref: 3

RIM-LAMP

€ 65.50

4

23013009
ref: 4

LENS UNIT SCREW ASSEMBLY

€ 28.50

5

23007059
ref: 5

LENS-COMP,001-1269 MA

€ 75.00

6

23008037
ref: 6

SOCKET-ASSY,HEAD LAMP

€ 12.50

7

2300504721
ref: 7

BODY-COMP-HEAD LAMP,F

€ 85.50

8

23020021
ref: 8

NUT,10MM

€ 4.00

9

92027231
ref: 9

COLLAR,10.2X13.4X8.1

€ 4.50

10

411B1000
ref: 10
KZ400-B1

WASHER-PLAIN,10MM

€ 0.50

11

92007045
ref: 11
KZ400-B1

BOLT, HEX HEAD, 10X25

€ 6.00

12

23021010
ref: 12

WASHER

€ 2.50

13

461F0500
ref: 13

WASHER-SPRING,5MM

€ 0.50

14

92011024
ref: 14

SCREW-PAN HEAD,5MM

€ 2.00

15

92075128
ref: 15
KZ400-82

DAMPER,LAMP

€ 3.50

16

920271129
ref: 16
KZ400-82

COLLAR,HEAD LAMP

€ 4.00

17

92022289
ref: 17
KZ400-82

WASHER,PLAIN

€ 11.50

18

92007024
ref: 18
KZ400-82

BOLT,10MM

€ 4.50
