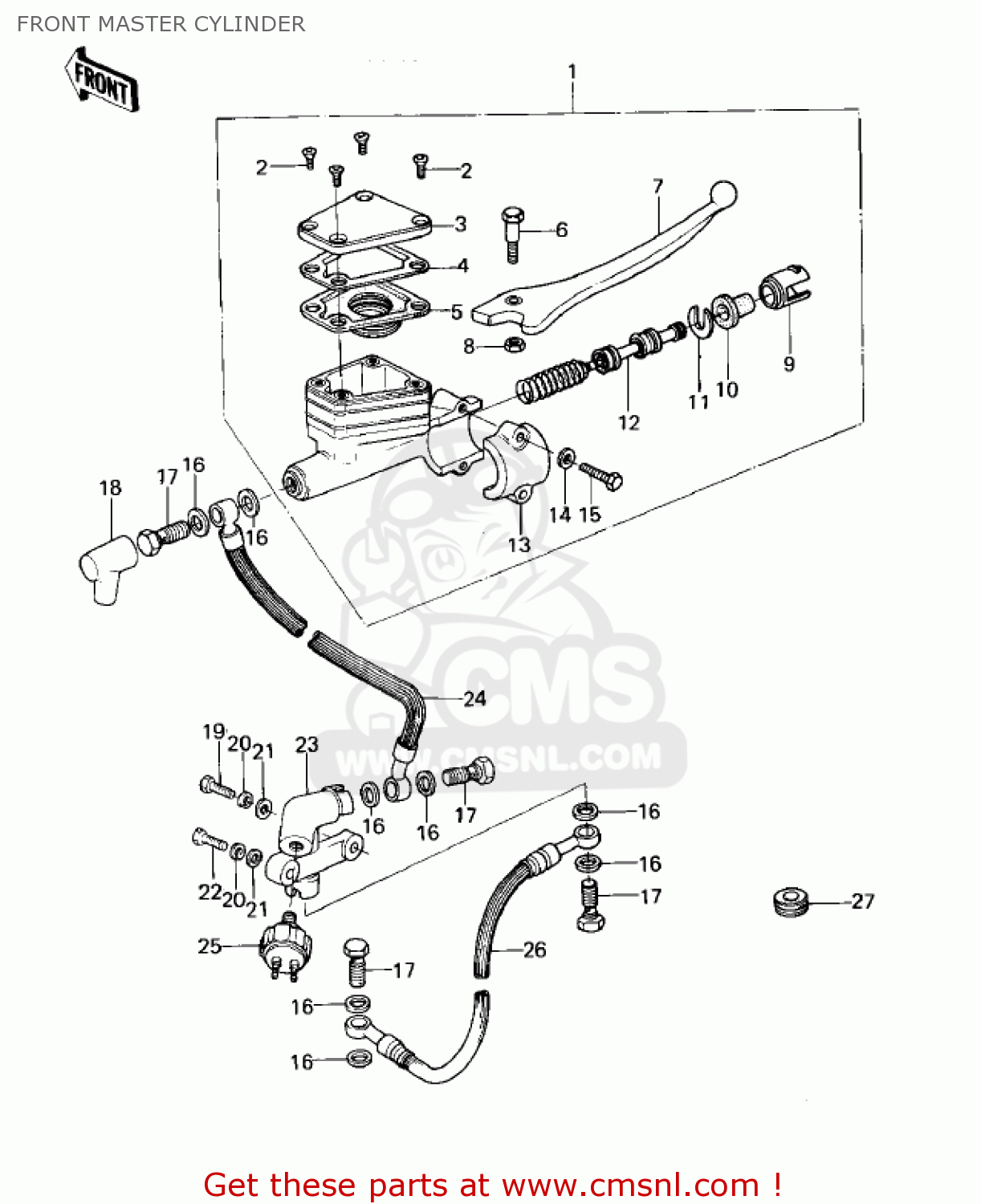

FRONT MASTER CYLINDER

ref

part #

description

quantity

1

430151003
ref: 1

MASTER CYLINDER ASSEMBLY

€ 219.50

2

920011055
ref: 2

SCREW,COUNTERSUNK HED

€ 3.50

3

430261003
ref: 3

CAP-BRAKE

€ 38.00

4

430271002
ref: 4

PLATE-DIAPHRAGM

€ 4.00

5

430281002
ref: 5

DIAPHRAGM

€ 18.00

6

920011056
ref: 6

BOLT, CLUTCH LEV FITT

€ 8.50

7

460921001
ref: 7

LEVER, CLUTCH

€ 22.00

8

312B0600
ref: 8

NUT,6MM

€ 0.50

9

140081007
ref: 9

LINER,PISTON

€ 8.00

10

490161010
ref: 10

COVER-SEAL,BRAKE PIST

€ 9.50

11

430221001
ref: 11

STOPPER-BRAKE,PISTON

€ 2.50

12

430201026
ref: 12

PISTON-COMP-BRAKE

€ 63.50

13

430341001
ref: 13

HOLDER-BRAKE,MASTER C

€ 20.50

14

411B0600
ref: 14

WASHER-PLAIN,6MM

€ 0.50

15

110N0625
ref: 15

BOLT-HEX HEAD,6X25

€ 3.50

16

43067001
ref: 16

WASHER,10.5X15X1.5

€ 1.50

17

920021888
ref: 17

BOLT,OIL,L=23

€ 3.50

18

490061041
ref: 18

BOOT,DUST

€ 7.50

19

112B0622
ref: 19

BOLT, 6X22

€ 2.50

20

461F0600
ref: 20

WASHER-SPRING,6MM

€ 0.50

21

411B0600
ref: 21

WASHER-PLAIN,6MM

€ 0.50

22

110N0632
ref: 22

BOLT,6X32

€ 2.50

23

43061002
ref: 23

JOINT-THREE WAY

€ 50.00

24

430591012
ref: 24

MASTER CYLINDER BRAKE HOSE

€ 61.50

25

43065001
ref: 25

SWITCH,BRAKE,FR

€ 37.50

26

430591003
ref: 26

HOSE,BRAKE,CALIPER

€ 70.50

27

43064006
ref: 27

GROMMET,BRAKE HOSE

€ 2.50
