TURN SIGNALS

KZ1300A2 1980 USA CANADA

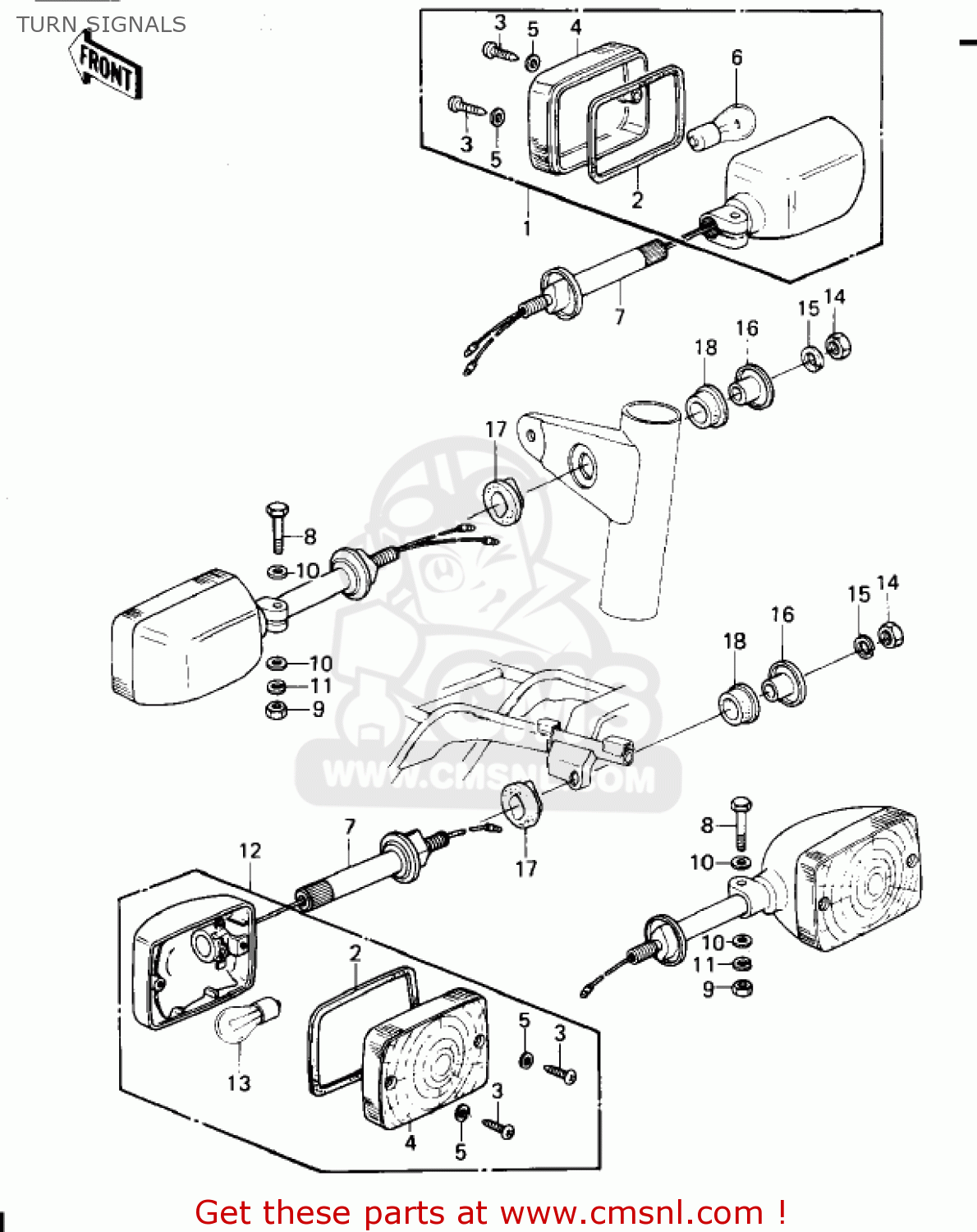

Turn signals diagram KZ1300A2 1980 USA CANADA

TURN SIGNALS KZ1300A2 1980 USA CANADA

TURN SIGNALS KZ1300A2 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

230401021
ref: 1
FRONT

TURN SIGNAL LAMP ASSEMBLY

€ 125.00

2

110091102
ref: 2

GASKET,TURN SIGNAL LA

€ 2.50

3

220E0416A
ref: 3

SCREW,PAN HEAD,4X16

€ 2.50

4

230481020
ref: 4

LENS-SIGNAL LAMP,045-

€ 12.00

5

23058002
ref: 5

WASHER,PLAIN,4MM

€ 2.00

6

92069060
ref: 6
FRONT

BULB.12V 23/8W

€ 5.00

7

230511023
ref: 7

BRACKET-SIGNAL LAMP

€ 25.50

8

112G0630
ref: 8

BOLT-UPSET

€ 1.00

9

311B0600
ref: 9

NUT,6MM

€ 0.50

10

411B0600
ref: 10

WASHER-PLAIN,6MM

€ 0.50

11

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

230401022
ref: 12
REAR

TURN SIGNAL LAMP ASSEMBLY

€ 74.50

13

92069055
ref: 13
REAR

BULB 12V 32CP

€ 4.50

15

461F1000
ref: 15

WASHER-SPRING,10MM

€ 0.50

16

92027147
ref: 16

COLLAR

€ 9.00

17

92075128
ref: 17

DAMPER,LAMP

€ 3.50

18

92075158
ref: 18

DAMPER

€ 3.50
