CHASSIS ELECTRICAL EQUIPMENT
KZ1300A2 1980 USA CANADA

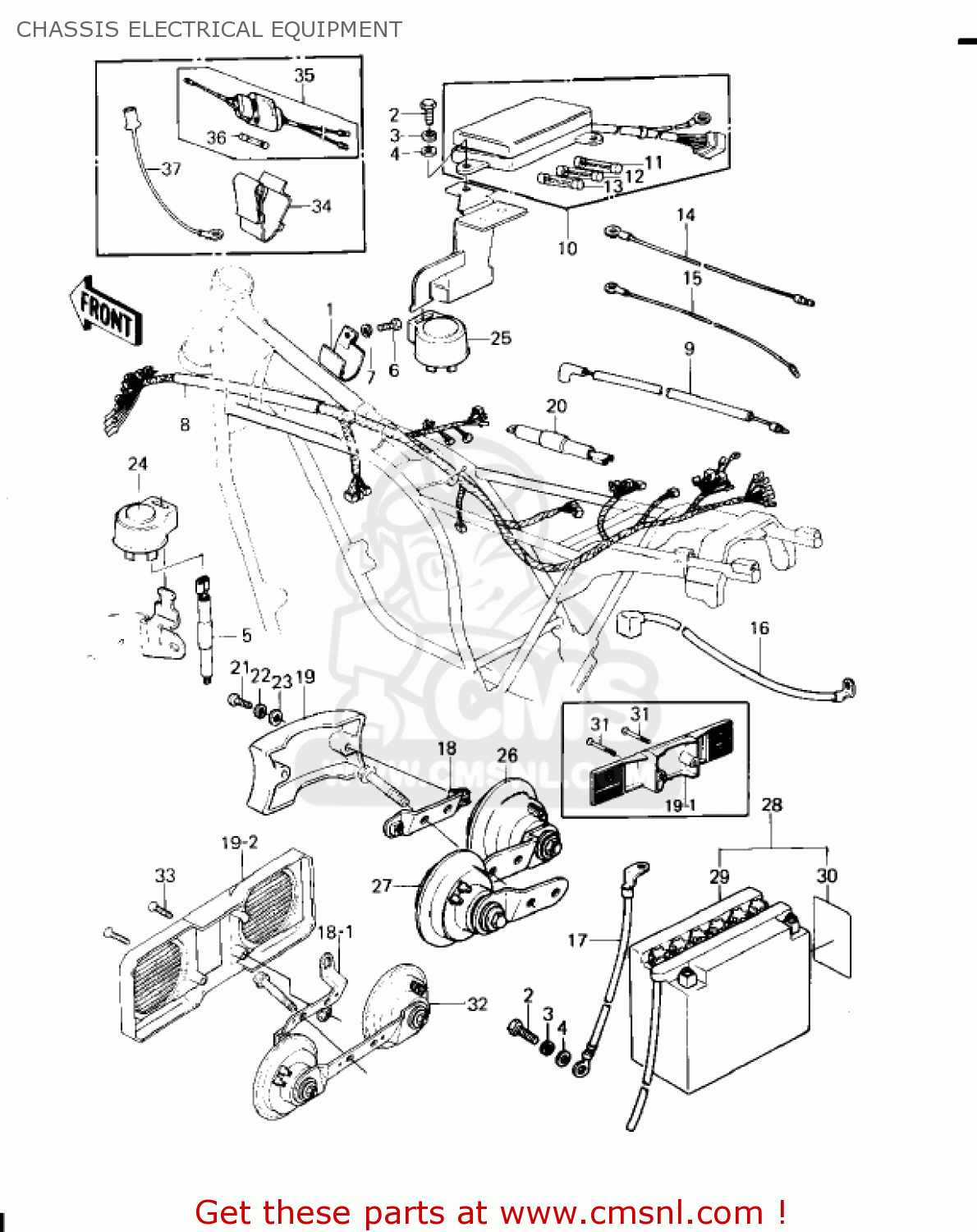

Chassis electrical equipment diagram KZ1300A2 1980 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KZ1300A2 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
130701022
ref: 1
GUIDE,MAIN HARNESS
€ 6.00
2
112G0612
ref: 2
BOLT-UPSET
€ 2.50
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
411B0600
ref: 4
WASHER-PLAIN,6MM
€ 0.50
5
21066026
ref: 5
REGULATOR-VOLTAGE
€ 13.00
6
112G0610
ref: 6
BOLT,6X10
€ 0.50
7
461F0600
ref: 7
WASHER-SPRING,6MM
€ 0.50
8
260011063
ref: 8
F.NO.00101~001057
WIRING HARNESS,MAIN
€ 150.50
8
260011105
ref: 8
F.NO. 001058-006200
WIRING HARNESS,MAIN
€ 219.50
8
260011171
ref: 8
F.NO.006201~010018
WIRING HARNESS,MAIN
€ 143.00
8
260011171
ref: 8
F.NO.010019~010993
WIRING HARNESS,MAIN
€ 143.00
8
260011195
ref: 8
KZ1300-A3
HARNESS,MAIN
€ 221.50
9
260011064
ref: 9
WIRING HARNESS,SUB
€ 6.00
10
260041009
ref: 10
FUSE ASSY
€ 55.00
11
260061004
ref: 11
L 25 M/M
FUSE,2A,L=25M/M
€ 2.50
12
26006003
ref: 12
L 25 M/M
FUSE 10A
€ 3.00
13
260061005
ref: 13
L 25 M/M
FUSE,30A,L=25M/M
€ 3.00
14
26011063
ref: 14
FRONT
WIRE-LEAD,L=185
€ 5.00
14
26011095
ref: 14
FRONT
WIRE-LEAD,L=285
€ 8.00
15
26011095
ref: 15
REAR
WIRE-LEAD,L=285
€ 8.00
16
260111037
ref: 16
WIRE,STARTER LEAD
€ 20.50
17
260111038
ref: 17
WIRE-LEAD,BATTERY,(-)
€ 24.00
18
110341504
ref: 18
KZ1300-A1/A2
BRACKET,HORN FITTING
€ 6.00
18-1
110361028
ref: 18-1
KZ1300-A3
BRACKET-A,HORN
€ 10.00
19
140251156
ref: 19
KZ1300-A1
COVER
€ 5.50
19-1
140251200
ref: 19-1
KZ1300-A2
COVER,HORN
€ 12.00
19-2
140251310
ref: 19-2
KZ1300-A3
COVER,HORN
€ 26.00
20
21066026
ref: 20
REGULATOR-VOLTAGE
€ 13.00
21
220B0412
ref: 21
KZ1300A1
SCREW-PAN CROS 4X12
€ 0.50
22
461F0400
ref: 22
KZ1300A1
WASHER-SPRING,4MM
€ 0.50
23
410B0400
ref: 23
KZ1300A1
WASHER-PLAIN-SMALL,4M
€ 0.50
24
27002011
ref: 24
RELAY-ASSY,TURN SIGNA
€ 69.50
25
27002016
ref: 25
RELAY-ASSY,HAZARD
€ 26.50
26
270031009
ref: 26
KZ1300A1-A2
HORN,R.H
€ 66.00
27
270031012
ref: 27
KZ1300A1-A2
HORN,L.H
€ 47.50
28
260121012
ref: 28
BATTERY,12V 20AH
€ 79.50
29
260121019
ref: 29
USE FOR CANADIAN MAR
BATTERY,12V20AH
€ 79.50
30
560401036
ref: 30
WARNING, BATTERY
€ 2.00
31
920091089
ref: 31
KZ1300A2
SCREW,CNTSNK 4X35
€ 2.00
32
270031037
ref: 32
KZ1300 A3
HORN
€ 124.50
33
221C0430
ref: 33
KZ1300 A3
SCREW-CSK-CROS
€ 2.00
34
130911102
ref: 34
HOLDER,ACCESSORY FUSE
€ 14.00
35
260041014
ref: 35
FUSE-ASSY,ACCESSORY
€ 47.00
36
260061002
ref: 36
FUSE,10A,L=30M/M
€ 3.00
37
260111100
ref: 37
WIRE-LEAD,ACCESSORY G
€ 7.00
