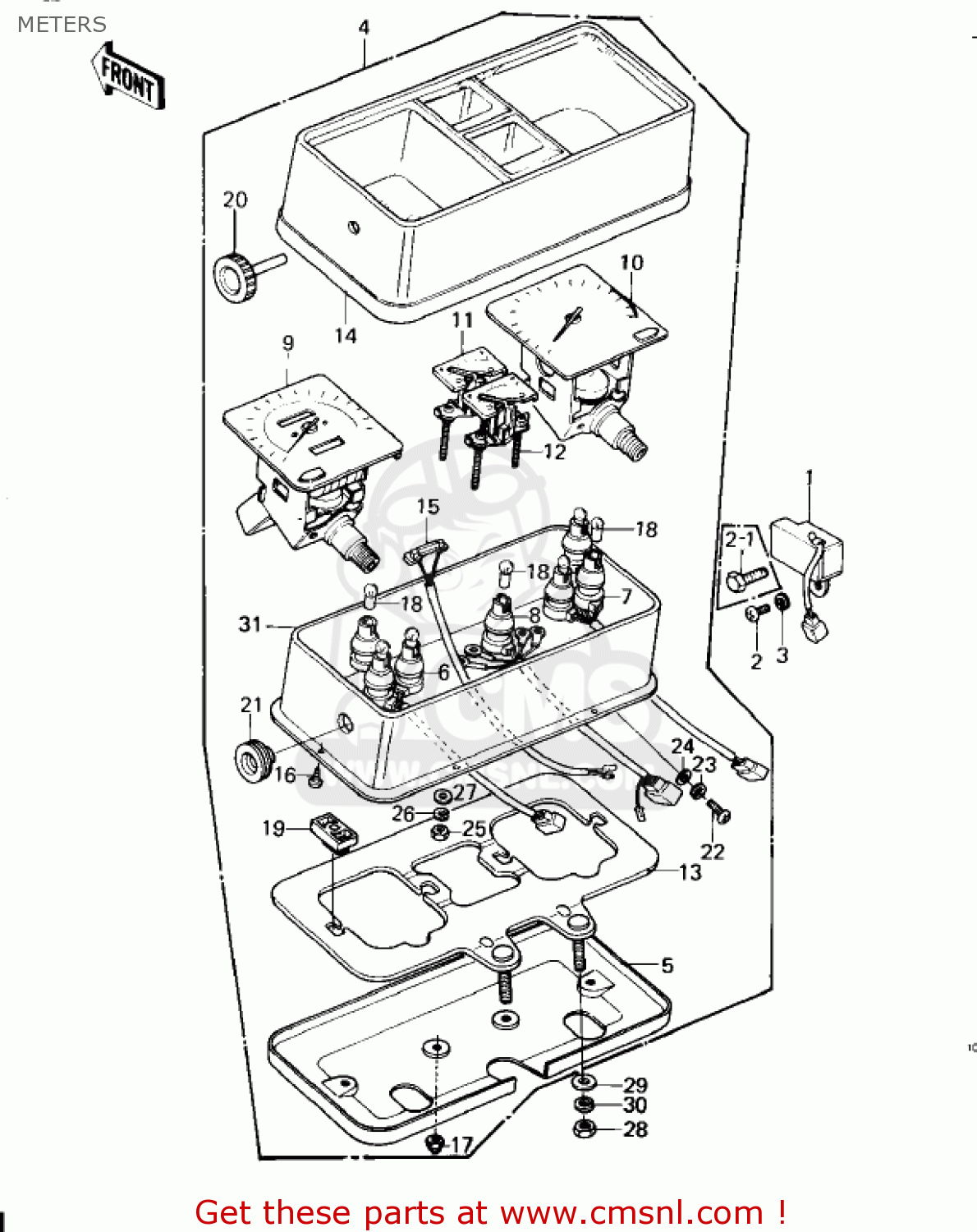

METERS

ref

part #

description

quantity

1

210661006
ref: 1

REGULATOR,VOLTAGE

€ 75.50

2

220B0612
ref: 2

SCREW-PAN HEAD,6X12

€ 1.00

2-1

112G0612
ref: 2-1

BOLT-UPSET

€ 2.50

3

461F0600
ref: 3

WASHER-SPRING,6MM

€ 0.50

4

250011299
ref: 4
KZ1300-A1

METER ASSY MPHX100R

€ 660.50

4

250011147
ref: 4
F/NO.006201~009819

SPEEDOMETER ASSY,MPH

€ 899.50

4

250011147
ref: 4
F/NO. 009Z820~

SPEEDOMETER ASSY,MPH

€ 899.50

4

250011088
ref: 4
F/NO. 00101~009819

METER ASSY KPH

€ 966.00

4

250011148
ref: 4
F/NO. 009820~

METER ASSY,KPH

€ 966.00

5

140251098
ref: 5

COVER,METER,LWR

€ 30.50

6

230081033
ref: 6

SOCKET ASSY,SPEEDOMET

€ 18.00

7

230081034
ref: 7

SOCKET ASSY,TACHOMETE

€ 18.00

8

230081035
ref: 8

SOCKET ASSY,FUEL &TEM

€ 13.50

9

250051044
ref: 9
KZ1300-A1

SPEEDOMETER,MPH

€ 207.50

9

250051069
ref: 9
KZ1300-A2/A3

SPEEDOMETER UNIT,MPH

€ 177.00

9

250051051
ref: 9
(CANADA)

SPEEDOMETER,KPH

€ 207.00

10

250151037
ref: 10

TACHOMETER UNIT

€ 288.00

11

280111003
ref: 11

METER,FUEL

€ 88.00

12

280111007
ref: 12
F/NO.00101~009819

METER,TEMPERATURE

€ 101.00

12

280111007
ref: 12
F/NO. 009820~

METER,TEMPERATURE

€ 101.00

13

250081015
ref: 13

BRACKET,METER

€ 39.50

14

250231010
ref: 14

COVER-METER CASE,UPP

€ 131.00

15

270101032
ref: 15

SENSOR,DISTANCE

€ 20.50

16

92008012
ref: 16

SCREW,TAPPING

€ 2.50

17

322N0500
ref: 17

NUT-CAP,5MM

€ 2.00

18

92069018
ref: 18

BULB 12V 3W

€ 4.00

19

920751140
ref: 19

DAMPER,METER BRACKET

€ 3.50

20

920771008
ref: 20

KNOB,TRIP

€ 4.50

21

920931029
ref: 21

SEAL,TRIP KNOB

€ 2.50

22

220B0408
ref: 22

SCREW-PAN-CROS

€ 0.50

23

461F0400
ref: 23

WASHER-SPRING,4MM

€ 0.50

24

410B0400
ref: 24

WASHER-PLAIN-SMALL,4M

€ 0.50

25

311B0400
ref: 25

NUT-HEX,4MM

€ 0.50

26

461F0400
ref: 26

WASHER-SPRING,4MM

€ 0.50

27

410B0400
ref: 27

WASHER-PLAIN-SMALL,4M

€ 0.50

28

317B0800
ref: 28

NUT,8M/M

€ 0.50

29

411B0800
ref: 29

WASHER-PLAIN,8MM

€ 0.50

30

461F0800
ref: 30

WASHER-SPRING,8MM

€ 0.50

31

140251805
ref: 31

COVER,METER HOUSING

€ 120.00

all assemblies
