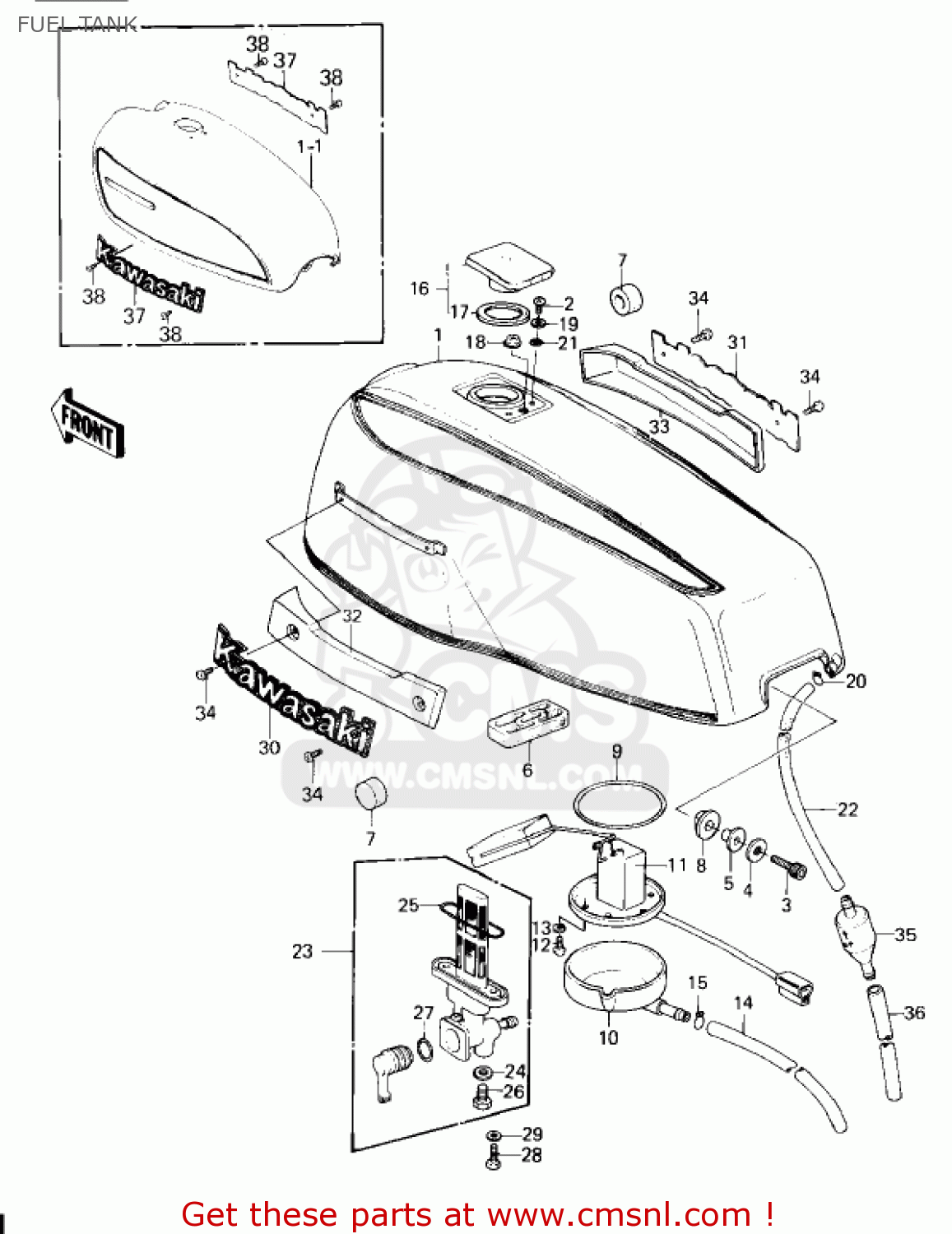

FUEL TANK

ref

part #

description

quantity

1

510011017C1
ref: 1
KZ1300-A1/A2

FUEL TANK,LUMINOUS STARLIGHT BLUE

€ 397.50

1-1

5100110638G
ref: 1-1
KZ1300 A3

FUEL TANK,EBONY

€ 645.00

2

220B0510
ref: 2

SCREW-PAN-CROS,5X10

€ 0.50

3

120P0830
ref: 3

BOLT,SOCKET,8X30

€ 2.00

4

92022092
ref: 4

WASHER

€ 2.50

5

920271134
ref: 5

COLLAR,FUEL TANK FITT

€ 7.00

6

920751114
ref: 6

DAMPER,FUEL TANK,RR

€ 11.00

7

920751115
ref: 7

DAMPER,FUEL TANK FRON

€ 4.00

8

920751116
ref: 8

DAMPER,FUEL TANK

€ 4.00

9

920551067
ref: 9

RING-O,FUEL GAUGE

€ 12.50

10

140251091
ref: 10

COVER,FUEL GAGE

€ 14.00

11

520051006
ref: 11

FUEL GAUGE

€ 72.50

12

220B0508
ref: 12

SCREW-PAN-CROS,5X8

€ 0.50

13

461F0500
ref: 13

WASHER-SPRING,5MM

€ 0.50

14

702A071000
ref: 14

TUBE-RUBBER,7X10X1000

€ 9.50

15

92037147
ref: 15

CLAMP,CHAIN OILER

€ 4.50

16

510481019
ref: 16

CAP ASSY,FUEL TANK

€ 82.00

17

110091051
ref: 17

GASKET,FUEL TANK CAP (NAS)

€ 7.00

18

920931030
ref: 18

OIL SEAL,FUEL TANK CA

€ 5.00

19

920221038
ref: 19

WASHER,PLAIN

€ 2.50

20

92037010
ref: 20

CLAMP-FUEL PIPE

€ 2.50

21

920551023
ref: 21

ORING

€ 2.50

22

920591092
ref: 22
F/NO.000101~007866

TUBE,4.5X9X750M/M

€ 6.00

22

702A07280
ref: 22
F/NO 007867

TUBE,RUBBER

€ 9.50

23

510231028
ref: 23

TAP-ASSY,FUEL

€ 90.50

24

110091045
ref: 24
NOT REQUIRED FOR 510

GASKET,DRAIN BOLT

€ 1.00

25

51039010
ref: 25

RING,TAP FLANGED

€ 4.50

26

920011089
ref: 26
NOT REQUIRED FOR 510

BOLT,DRAIN

€ 8.00

27

920551036
ref: 27

RING-O

€ 2.50

28

920011091
ref: 28

BOLT,6X20,FUEL TAP

€ 2.50

29

92022183
ref: 29

WASHER,6.2X11X1.5

€ 2.50

30

560141025
ref: 30
KZ1300 A1/A2

FUEL TANK EMBLEM,LH

€ 30.50

31

560141026
ref: 31
KZ1300 A1/A2

FUEL TANK EMBLEM,RH

€ 34.50

32

560141027
ref: 32
KZ1300 A1/A2

EMBLEM BASE,FUEL,LH

€ 34.00

33

560141028
ref: 33
KZ1300 A1/A2

FUEL TANK BASE EMBLEM

€ 17.50

34

220C0308
ref: 34
KZ1300 A1/A2

SCREW-PAN-CROS

€ 0.50

35

140691004
ref: 35
F/NO 007867-

BREATHER,FUEL TANK

€ 6.50

36

702A07400
ref: 36
F/NO 007867-

TUBE,RUBBER

€ 9.50

37

560141043
ref: 37
KZ1300 -A3

EMBLEM,FUEL TANK,KAWA

€ 54.00

38

221C0306
ref: 38
KZ1300 -A3

SCREW-CSR-CROS

€ 0.50
