REAR WHEEL/HUB

KZ1300A2 1980 USA CANADA

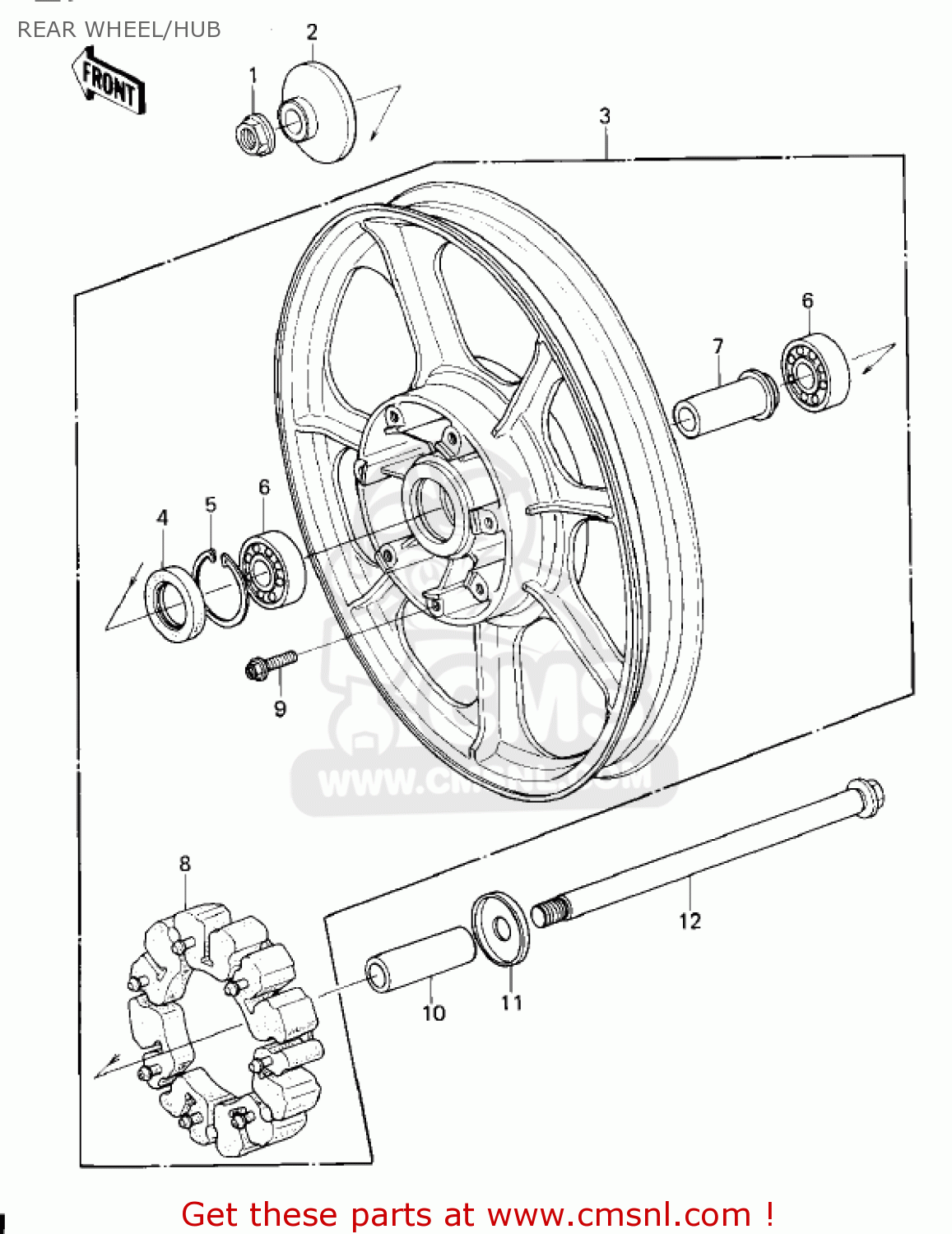

Rear wheel/hub diagram KZ1300A2 1980 USA CANADA

REAR WHEEL/HUB KZ1300A2 1980 USA CANADA

REAR WHEEL/HUB KZ1300A2 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

920152186
ref: 1

NUT,FLANGED,18MM

€ 12.50

2

920271127
ref: 2

COLLAR,FRONT AXLE

€ 23.00

3

410731024
ref: 3

SOLID WHEEL ASSY,REAR

€ 459.50

4

920491021
ref: 4

OIL,SEAL,305208

€ 10.00

5

920331043
ref: 5

RING,SNAP,56.2M/M

€ 6.00

6

601B6304Z
ref: 6

BEARING-BALL,#6304ZC3

€ 20.50

7

920271124
ref: 7

COLLAR,FRONT HUB BEAR

€ 10.50

8

920751098
ref: 8

DAMPER,SHOCK,RR HUB

€ 77.00

9

920011095
ref: 9

BOLT,8X28

€ 4.50

10

920271126
ref: 10

COLLAR,20.2X28X85

€ 17.00

11

490161019
ref: 11

COVER-SEAL

€ 5.50

12

410681017
ref: 12

AXLE,RR

€ 65.00
