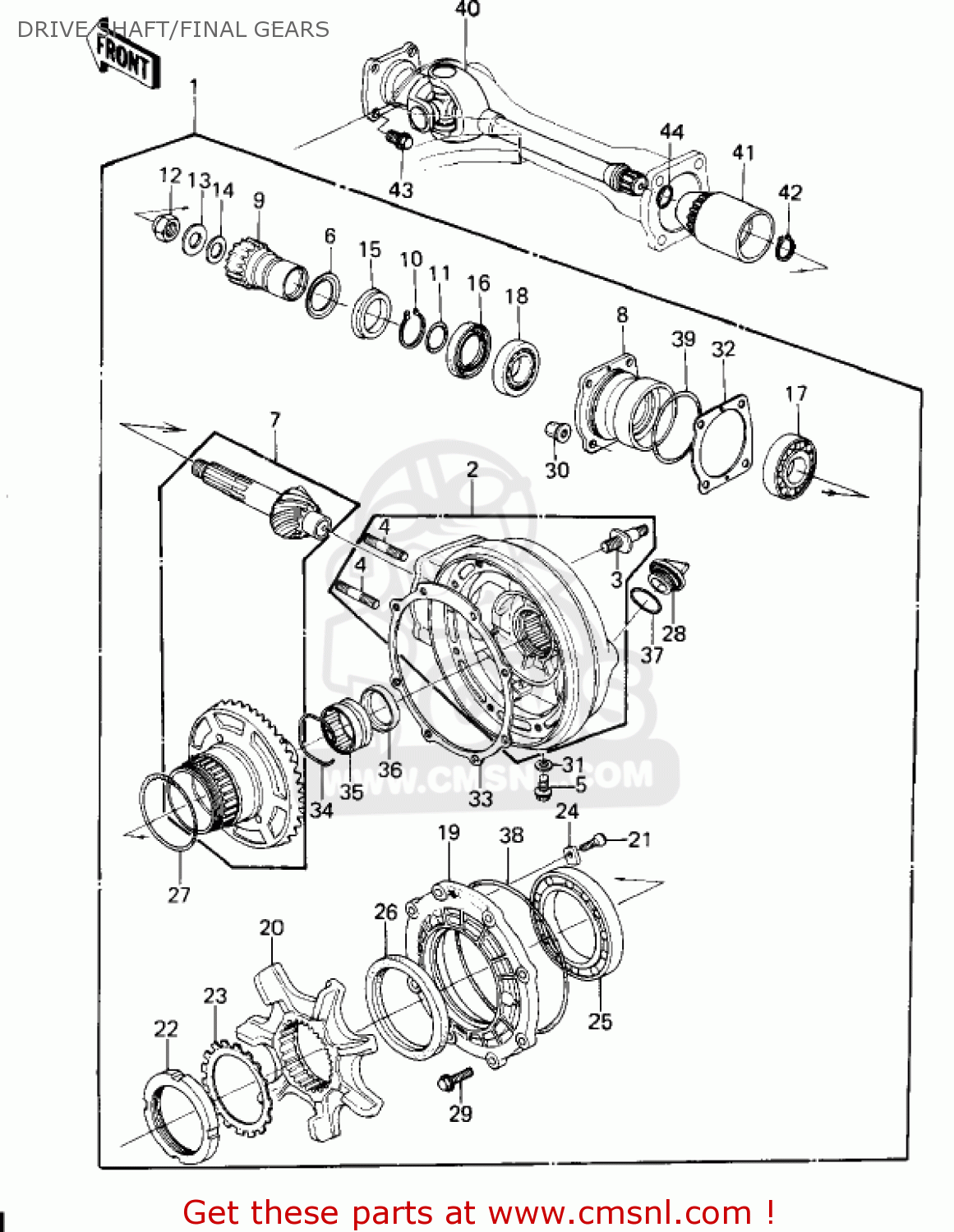

DRIVE SHAFT/FINAL GEARS

ref

part #

description

quantity

1

131011007
ref: 1

GEAR ASSY,FINAL

€ 1,315.50

2

110211009
ref: 2

CASE ASSY,FINAL GEAR

€ 935.50

3

920041020
ref: 3

STUD,SHOCK ABSORBER

€ 16.50

4

920041021
ref: 4

STUD,10X31.5

€ 3.50

5

130B0812
ref: 5

BOLT,FLANGED,8X12

€ 0.50

6

131691129
ref: 6

PLATE,OIL SEAL GUIDE

€ 3.00

7

131015026
ref: 7

GEAR-ASSY,FINAL BEVEL

€ 1,279.00

8

410461008
ref: 8

HOUSING,BEARING FINAL

€ 152.50

9

420341008
ref: 9

COUPLING,PINION SHAFT

€ 126.00

10

480J3600
ref: 10

CIRCLIP-TYPE-C,36MM

€ 3.50

11

671B2525
ref: 11

O RING,25MM

€ 3.00

12

920151059
ref: 12

NUT,16MM

€ 7.50

13

920221105
ref: 13

WASHER,16X32X3.2

€ 7.00

14

920251027
ref: 14

SHIM,16.5X26X1.30

€ 4.50

14

920251028
ref: 14

SHIM,16.5X26X1.32

€ 6.00

14

920251030
ref: 14

SHIM,16.5X26X1.36

€ 6.00

14

920251031
ref: 14

SHIM,16.5X26X1.38

€ 6.00

14

920251032
ref: 14

SHIM,16.5X26X0.10

€ 3.50

14

920251033
ref: 14

SHIM,16.5X26X0.2

€ 2.50

14

920251034
ref: 14

SHIM,16.5X26X0.3

€ 2.00

14

920251036
ref: 14

SHIM,16.5X26X0.9

€ 3.00

15

920491023
ref: 15

OIL SEAL,OS-50369HS

€ 9.00

16

920491024
ref: 16

OIL SEAL,SC35558

€ 12.00

17

921161002
ref: 17

BEARING-ROLLER,4T3030

€ 39.00

18

921161003
ref: 18

BEARING,R,4T-30205

€ 41.00

19

140251066
ref: 19

COVER,FINAL GEAR CASE

€ 87.50

20

420341007
ref: 20

COUPLING,REAR HUB

€ 194.50

21

920091041
ref: 21

SCREW,CNTSNK,6X16

€ 2.50

22

920151060
ref: 22

NUT,RING GEAR,75MM

€ 24.50

23

920221106
ref: 23

WASHER,RING GEAR,75MM

€ 6.50

24

920221112
ref: 24

WASHER,BEARING STOPER

€ 2.50

25

920451020
ref: 25

BEARING-BALL,16016

€ 158.00

26

920491026
ref: 26

OIL SEAL,S-901159HS

€ 28.00

27

920551031
ref: 27

RING-O,75MM

€ 6.00

28

161151003
ref: 28

CAP-OIL FILLER

€ 6.50

29

920011095
ref: 29

BOLT,8X28

€ 4.50

30

920151415
ref: 30

NUT,10MM

€ 3.00

31

920221086
ref: 31

WASHER,8.2X16X1

€ 2.50

32

920251037
ref: 32

SHIM,T=0.60

€ 7.50

32

920251038
ref: 32

SHIM,T=0.90

€ 9.00

32

920251039
ref: 32

SHIM,T=1.20

€ 12.00

32

920251040
ref: 32

SHIM,T=0.10

€ 6.00

32

920251041
ref: 32

SHIM,T=0.15

€ 6.00

32

920251042
ref: 32

SHIM,73X0.2

€ 5.50

32

920251043
ref: 32

SHIM,T=0.30

€ 6.00

33

920251045
ref: 33

SHIM,T=0.60

€ 11.00

33

920251046
ref: 33

SHIM,168X0.9

€ 8.50

33

920251047
ref: 33

SHIM,168X1.2

€ 7.00

33

920251048
ref: 33

SHIM,T=0.10

€ 12.00

33

920251049
ref: 33

SHIM,T=0.15

€ 11.00

33

920251051
ref: 33

SHIM,T=0.30

€ 11.00

34

920331020
ref: 34

RING-SNAP

€ 2.50

35

920461020
ref: 35

BEARING-NEEDLE,TAF435

€ 87.00

36

920491025
ref: 36

OIL SEAL,S-35477HS

€ 10.00

37

92055049
ref: 37

'0'RING,31MM

€ 2.50

38

920551030
ref: 38

RING-O,159MM

€ 6.00

39

920551032
ref: 39

RING-O,67MM

€ 7.50

40

391581001
ref: 40

SHAFT ASSY,PROPELLER

€ 292.50

41

420341009
ref: 41

COUPRING,PROP SHAFT

€ 117.50

42

480J2000
ref: 42

CIRCLIP-TYPE-C,20MM

€ 1.00

43

920011139
ref: 43

BOLT,12X15,COUPLING

€ 4.50

44

920551029
ref: 44

RING-O,20.5MM

€ 3.00
