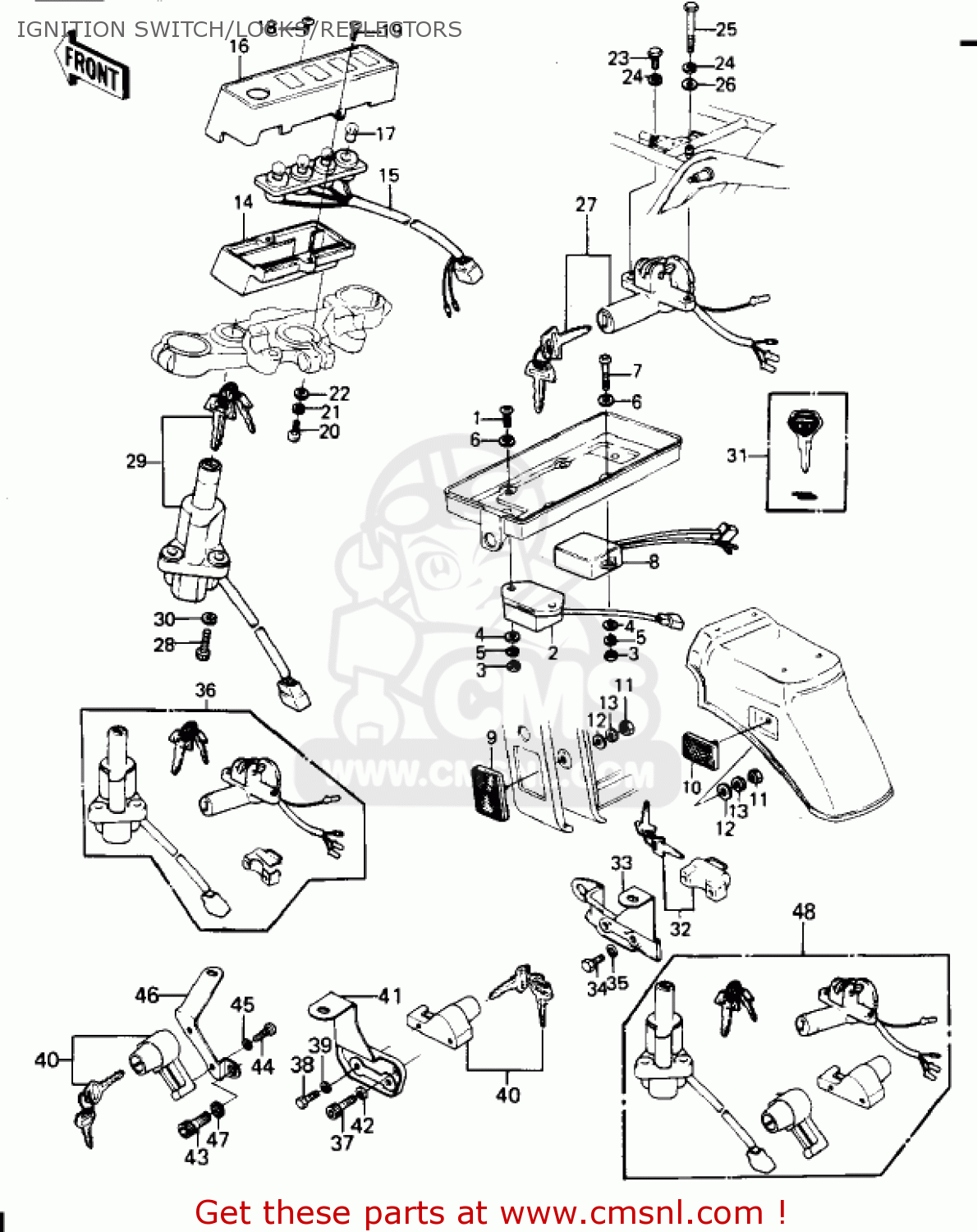

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

1

220B0620
ref: 1

SCREW-PAN HEAD,6X20

€ 2.50

2

270101024
ref: 2

SWITCH,RESERV LIGHTIN

€ 149.00

3

311B0600
ref: 3

NUT,6MM

€ 0.50

3

92017014
ref: 3

NUT,LOCK,6MM

€ 4.00

4

410B0600
ref: 4

WASHER-PLAIN-SMALL,6M

€ 0.50

5

461F0600
ref: 5
NOT REQUIRED FOR 920

WASHER-SPRING,6MM

€ 0.50

6

92022024
ref: 6

WASHER,7X16X1.2

€ 2.50

7

220B0635
ref: 7

SCREW-PAN HEAD,6X35

€ 1.00

8

270101016
ref: 8

SWITCH,TURN SIGNAL OP

€ 137.50

9

280121003
ref: 9
FRONT

REFLECTOR,REFLEX

€ 15.00

10

280121054
ref: 10
REAR

REFLECTOR-REFLEX,RR

€ 15.00

11

311B0500
ref: 11

NUT-HEX

€ 0.50

12

411B0500
ref: 12

WASHER-PLAIN,5MM

€ 0.50

13

461F0500
ref: 13

WASHER-SPRING,5MM

€ 0.50

?

230161014
ref: ?
Includes items 14 -

PILOT LAMP ASSEMBLY

€ 65.00

14

140251117
ref: 14

COVER,PILOT LAMP,LWR

€ 15.50

15

230081041
ref: 15

PILOT LAMP SOCKET ASSEMBLY

€ 33.50

16

250231014
ref: 16

PILOT LAMP COVER,UPPER

€ 46.50

17

92069018
ref: 17

BULB 12V 3W

€ 4.00

18

920091073
ref: 18

SCREW,TAPPING,3.5X10

€ 2.00

19

920091074
ref: 19

SCREW,CNTSNK HED,4X10

€ 2.00

20

220B0516A
ref: 20

SCREW-PAN HEAD,5X16

€ 2.50

21

461F0500
ref: 21

WASHER-SPRING,5MM

€ 0.50

22

411B0500
ref: 22

WASHER-PLAIN,5MM

€ 0.50

23

112G0612
ref: 23

BOLT-UPSET

€ 2.50

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

112G0645
ref: 25

BOLT-UPSET

€ 0.50

26

411B0600
ref: 26

WASHER-PLAIN,6MM

€ 0.50

27

270165027
ref: 27

LOCK-ASSY,SEAT

€ 101.00

28

120P0822
ref: 28

BOLT,SOCKET,8X22

€ 3.50

29

270165026
ref: 29

LOCK-ASSY,IGNITION SW

€ 141.00

30

461F0800
ref: 30

WASHER-SPRING,8MM

€ 0.50

31

270081103
ref: 31

KEY-LOCK,BLANK

€ 13.50

32

270165030
ref: 32
KZ1300-A1/A2

LOCK ASSY,HELMET

€ 47.00

33

320741009
ref: 33
KZ1300-A1/A2

BRACKET,HELMET LOCK

€ 8.50

34

114G0812
ref: 34
KZ1300-A1/A2

BOLT-SMALL,8X12

€ 2.00

35

461F0500
ref: 35
KZ1300-A1/A2

WASHER-SPRING,5MM

€ 0.50

36

270045371
ref: 36
KZ1300-A1/A2

SWITCH-ASSY

€ 290.00

37

120S0610
ref: 37
KZ1300-A3

BOLT-SOCKET

€ 1.50

38

110B0510
ref: 38
KZ1300-A3

BOLT-HEX HEAD,5X10

€ 0.50

39

461F0500
ref: 39
KZ1300-A3

WASHER-SPRING,5MM

€ 0.50

40

270165036
ref: 40
KZ1300-A3

LOCK ASSY,HELMET

€ 67.50

41

320741021
ref: 41
KZ1300-A3

BRACKET-LOCK,HELMET,R

€ 10.00

42

461F0600
ref: 42
KZ1300-A3

WASHER-SPRING,6MM

€ 0.50

43

120S0814
ref: 43
KZ1300-A3

BOLT-SOCKET

€ 3.00

44

220B0510
ref: 44
KZ1300-A3

SCREW-PAN-CROS,5X10

€ 0.50

45

461F0500
ref: 45
KZ1300-A3

WASHER-SPRING,5MM

€ 0.50

46

320741020
ref: 46
KZ1300-A3

BRACKET-LOCK,HLMT,LH

€ 4.50

47

461F0800
ref: 47
KZ1300-A3

WASHER-SPRING,8MM

€ 0.50

48

270045371
ref: 48
KZ1300-A3

SWITCH-ASSY

€ 290.00

all assemblies
