STARTER MOTOR/STARTER CLUTCH ('7

KZ1000B3 KZ1000 LTD 1979 USA CANADA

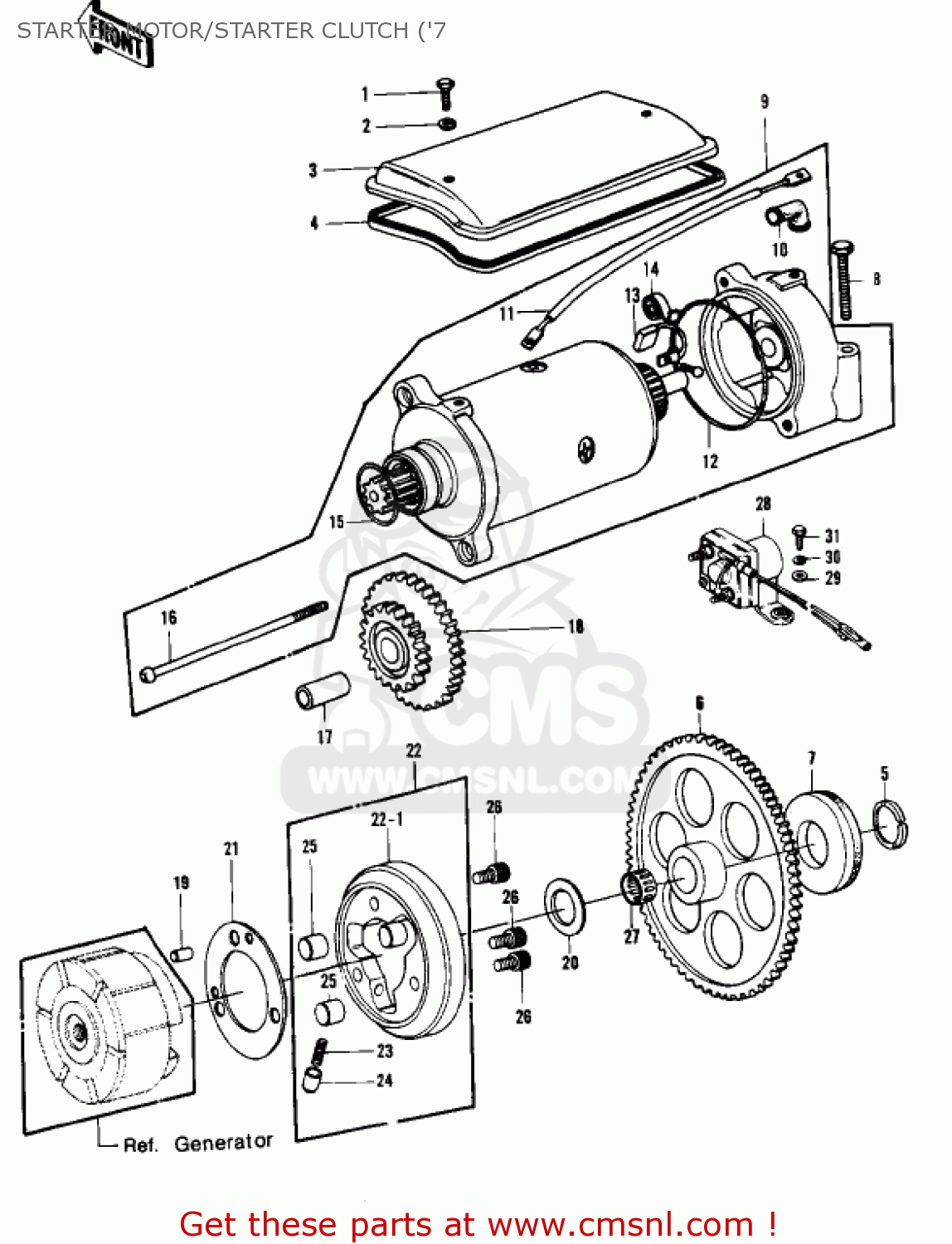

Starter motor/starter clutch ('7 diagram KZ1000B3 KZ1000 LTD 1979 USA CANADA

STARTER MOTOR/STARTER CLUTCH ('7 KZ1000B3 KZ1000 LTD 1979 USA CANADA

STARTER MOTOR/STARTER CLUTCH ('7 KZ1000B3 KZ1000 LTD 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

110R0610
ref: 1

BOLT,6X10

€ 5.00

2

410D0600
ref: 2

WASHER-PLAIN-SMALL,6M

€ 0.50

3

21165001
ref: 3

COVER,STARTER MOTOR

€ 30.00

4

21166001
ref: 4

GASKET,STARTER COVER (NAS)

€ 23.50

5

92026091
ref: 5

SPACER,PLAIN,22MM

€ 26.50

6

21167003
ref: 6
71T

GEAR,STARTING CLUTCH

€ 436.00

7

92075192
ref: 7
ID = *

DAMPER RUBBER

€ 17.00

7

92075193
ref: 7
ID = **

DAMPER

€ 28.50

7

92075194
ref: 7
ID = ***

DAMPER

€ 28.50

8

920011456
ref: 8

BOLT,6X55

€ 3.00

9

211631019
ref: 9

STARTER-ELECTRIC

€ 666.00

10

21017017
ref: 10

GROMMET-CORD

€ 6.50

11

26010055
ref: 11

WIRE, STARTER MOTOR

€ 22.00

12

21027003
ref: 12

RING-O,STARTER MOTOR

€ 6.00

13

21039003
ref: 13

BRUSH,CARBON

€ 23.50

14

21040003
ref: 14

SPRING-BRUSH

€ 4.50

15

21027004
ref: 15

ORING-STARTING MOTR

€ 6.50

16

21015005
ref: 16

SCREW-PAN HEAD,6X110

€ 5.50

17

13002007
ref: 17

PIN

€ 13.00

18

21167002
ref: 18
19T 70T

GEAR-STARTING MOTOR

€ 89.00

19

551A0622
ref: 19
NOT REQ'D W/13193-10

PIN,DOWEL,6X22

€ 2.50

20

92026092
ref: 20

SPACER,22X35.5X1.0

€ 8.50

21

92026112
ref: 21

SPACER,45X79.5X0.5 (NAS)

€ 7.50

22

131931006
ref: 22

CLUTCH-ASSY-ONEWAY

€ 150.50

23

92081110
ref: 23

SPRING

€ 3.00

24

92043087
ref: 24

PIN

€ 8.00

25

92122001
ref: 25

ROLLER,15X14.4

€ 7.50

26

92003104
ref: 26

BOLT-HEX HEAD,8X16

€ 2.50

27

92046033
ref: 27

BEARING-NEEDLE,K22272

€ 25.50

28

270101023
ref: 28

SWITCH ASSY,MAGNETIC

€ 135.50

28

270101023
ref: 28

SWITCH ASSY,MAGNETIC

€ 135.50

29

92022237
ref: 29

WASHER-PLAIN

€ 2.50

30

461F0600
ref: 30

WASHER-SPRING,6MM

€ 0.50

31

112G0620
ref: 31

BOLT 6X20

€ 1.00
