KICKSTARTER MECHANISM ('77-'78 B

KZ1000B3 KZ1000 LTD 1979 USA CANADA

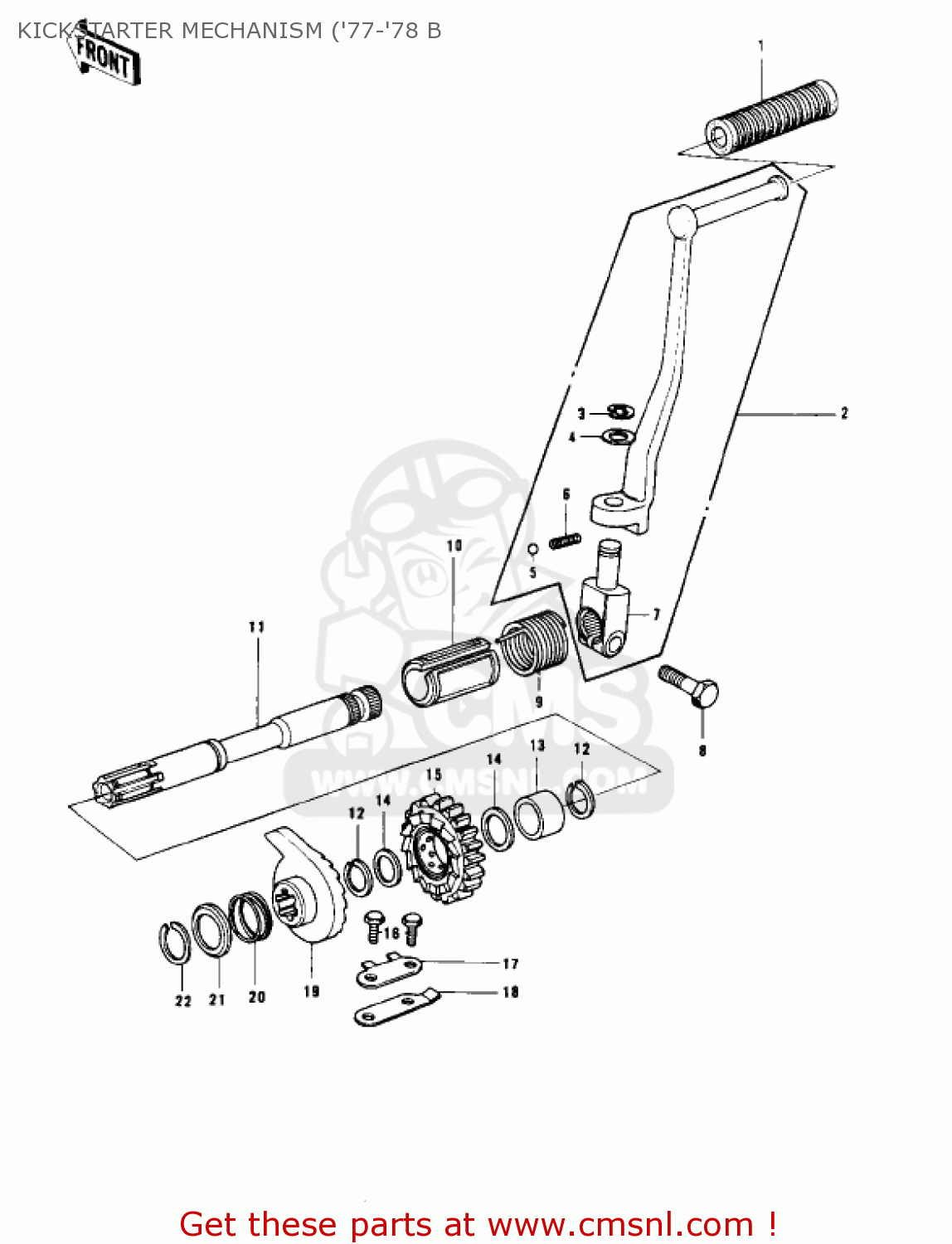

Kickstarter mechanism ('77-'78 b diagram KZ1000B3 KZ1000 LTD 1979 USA CANADA

KICKSTARTER MECHANISM ('77-'78 B KZ1000B3 KZ1000 LTD 1979 USA CANADA

KICKSTARTER MECHANISM ('77-'78 B KZ1000B3 KZ1000 LTD 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

13063004
ref: 1

DAMPER,KICK PEDAL

€ 6.50

2

13058044
ref: 2

LEVER-KICK

€ 187.50

3

482J0100
ref: 3

CIRCLIP-TYPE-E,10MM

€ 0.50

4

92022085
ref: 4

WASHER,15.3X24X1.2

€ 2.50

5

600A0800
ref: 5

BALL-STEEL,1/4

€ 0.50

6

92081020
ref: 6

SPRING-KICK PEDAL

€ 2.50

7

13061014
ref: 7

BOSS-KICK PEDAL

€ 59.00

8

114B1025
ref: 8

BOLT-HEX HEAD,10X25

€ 2.50

9

92082004
ref: 9

SPRING-KICKSTARTER

€ 12.50

10

13070005
ref: 10

GUIDE-KICK SHAFT

€ 6.00

11

13066029
ref: 11
KZ1000-B1

SHAFT-KICKSTARTER

€ 80.00

11

130661004
ref: 11
KZ1000-B2

SHAFT-KICK

€ 85.00

12

92033025
ref: 12

CIRCLIP,25MM

€ 3.00

13

92028126
ref: 13

COLLAR,KICKSHAFT

€ 20.00

14

92022207
ref: 14

WASHER-PLAIN,22MM

€ 2.50

15

13068028
ref: 15
KZ1000-B1

GEAR-KICKSTARTER 19T

€ 48.50

15

590511006
ref: 15
KZ1000-B2

GEAR,KICKSTARTER

€ 61.50

16

112B0614
ref: 16

BOLT-UPSET 6X14

€ 2.50

17

92024036
ref: 17

WASHER-LOCK

€ 1.00

18

13072012
ref: 18

STOPPER,KICKSTARTER

€ 7.00

19

13078011
ref: 19

RATCHET

€ 58.50

20

92081104
ref: 20

SPRING-RATCHET

€ 6.50

21

92102008
ref: 21

CAP-KICKSTARTER

€ 4.00

22

480J1900
ref: 22

CIRCLIP-TYPE-C,19MM

€ 1.00
