REAR MASTER CYLINDER/BRAKE PEDAL

KZ1000B3 KZ1000 LTD 1979 USA CANADA

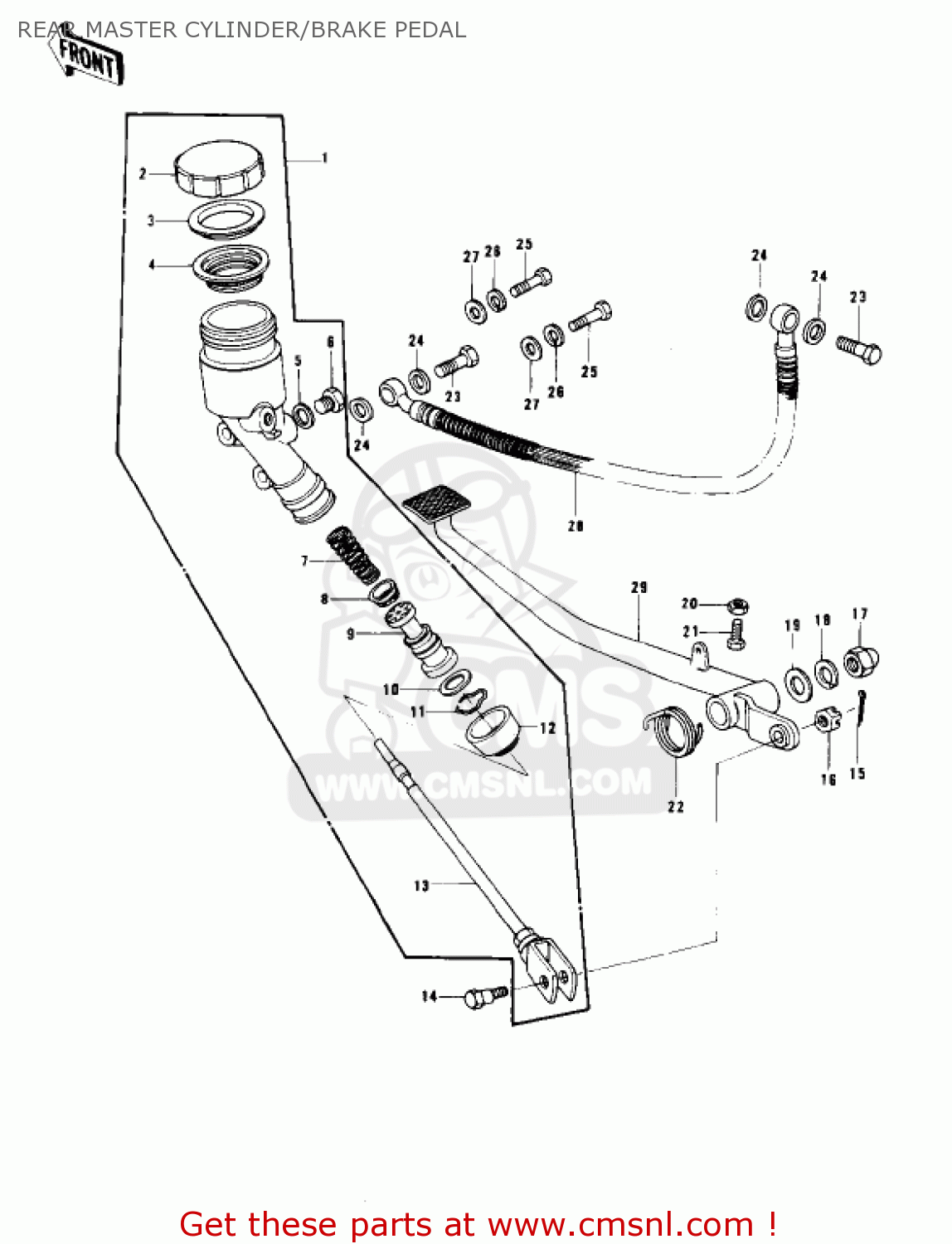

Rear master cylinder/brake pedal diagram KZ1000B3 KZ1000 LTD 1979 USA CANADA

REAR MASTER CYLINDER/BRAKE PEDAL KZ1000B3 KZ1000 LTD 1979 USA CANADA

REAR MASTER CYLINDER/BRAKE PEDAL KZ1000B3 KZ1000 LTD 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

430151029
ref: 1

MASTER CYLINDER ASSEMBLY,FRONT

€ 152.00

2

43026004
ref: 2

CAP, OIL CUP

€ 20.50

3

43027001
ref: 3

PLATE-MASTER CYLINDER

€ 4.50

4

43028003
ref: 4

DIAPHRAGM

€ 14.00

5

43079002
ref: 5

GASKET

€ 6.00

6

43070003
ref: 6

BOLT

€ 4.50

7

43018002
ref: 7

SPRING ASSY-RETURN

€ 22.50

8

43019002
ref: 8

CUP-BRAKE

€ 15.50

9

43072004
ref: 9

PISTON-COMP-BRAKE

€ 65.00

10

43022002
ref: 10

STOPPER-BRAKE

€ 5.50

11

43058004
ref: 11

RING,ROD STOPPER

€ 4.50

12

43024003
ref: 12

COVER-SEAL

€ 15.00

13

43010021
ref: 13

ROD,BRAKE

€ 61.00

14

92003198
ref: 14

BOLT

€ 10.50

15

550D2020
ref: 15

PIN-COTTER,2.0X20

€ 0.50

16

321B0800
ref: 16

NUT-CASTLE,8MM

€ 3.00

17

92019013
ref: 17

NUT,CAP,LOCK,8MM

€ 5.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

920221561
ref: 19

WASHER,8.5X20X1.6

€ 2.50

20

311B0600
ref: 20

NUT,6MM

€ 0.50

21

112G0620
ref: 21

BOLT 6X20

€ 1.00

22

43005041
ref: 22

SPRING, BRAKE PEDAL

€ 11.50

23

920021888
ref: 23

BOLT,OIL,L=23

€ 3.50

24

43067001
ref: 24

WASHER,10.5X15X1.5

€ 1.50

25

920011182
ref: 25

BOLT,10X45

€ 6.00

26

461F0800
ref: 26

WASHER-SPRING,8MM

€ 0.50

27

410B0800
ref: 27

WASHER-PLAIN-SMALL,8M

€ 0.50

28

43059031
ref: 28

HOSE, REAR MASTER

€ 98.00

29

430011030
ref: 29

PEDAL,BRAKE

€ 149.00
