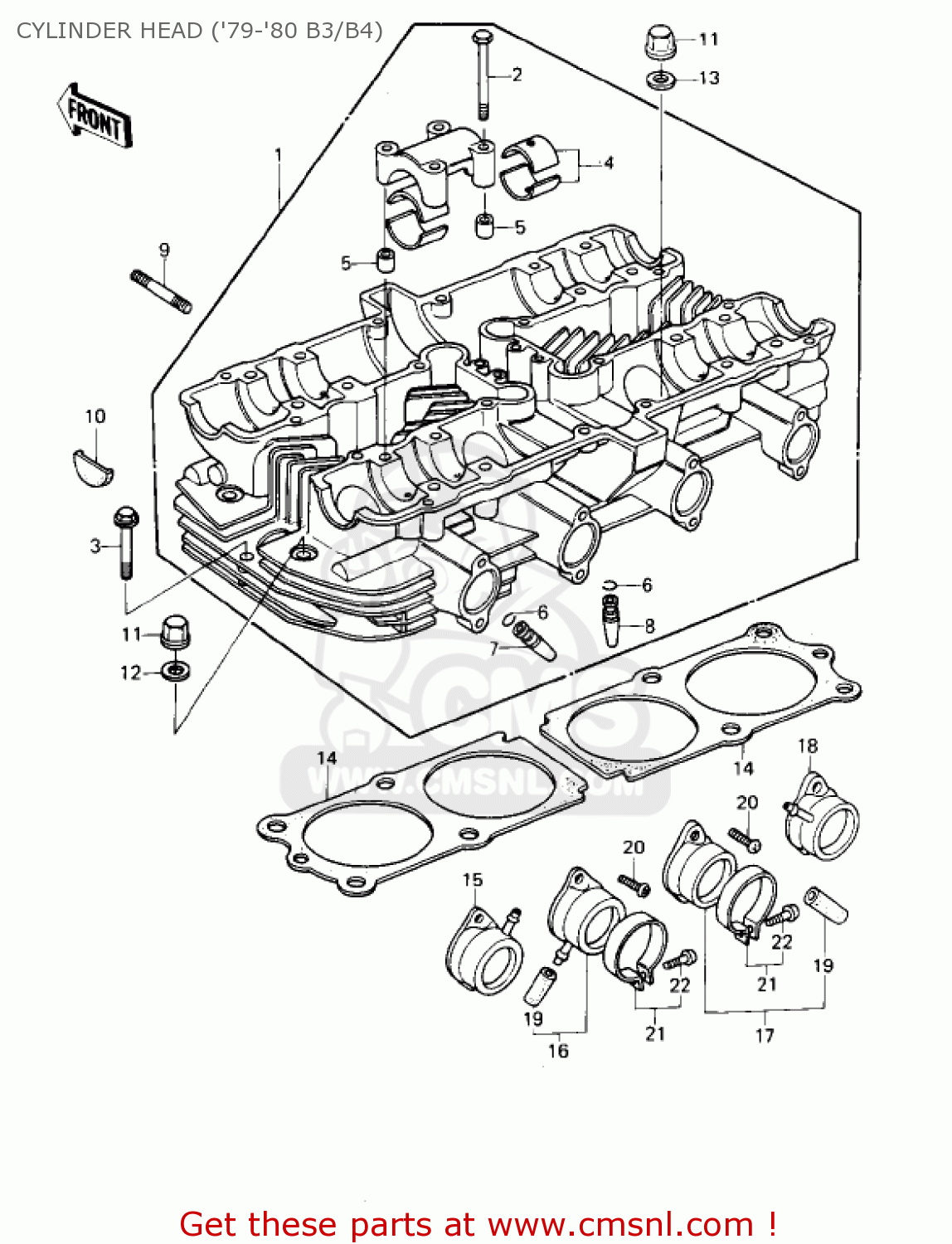

CYLINDER HEAD ('79-'80 B3/B4)

KZ1000B3 KZ1000 LTD 1979 USA CANADA

Cylinder head ('79-'80 b3/b4) diagram KZ1000B3 KZ1000 LTD 1979 USA CANADA

CYLINDER HEAD ('79-'80 B3/B4) KZ1000B3 KZ1000 LTD 1979 USA CANADA

CYLINDER HEAD ('79-'80 B3/B4) KZ1000B3 KZ1000 LTD 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

110021019
ref: 1

CYLINDER HEAD,BARREL FINISH

€ 1,279.50

2

920021881
ref: 2

BOLT, 6X43

€ 4.50

3

92003092
ref: 3

BOLT-HEX HEAD,6X45

€ 4.50

4

13034030
ref: 4

BUSHING,CAMSHAFT

€ 15.00

5

92042007
ref: 5

PIN-DOWEL

€ 4.00

6

92036023
ref: 6

CIRCLIP,VALVE GUIDE

€ 0.50

7

12013009
ref: 7

GUIDE-VALVE,INTAKE

€ 18.00

8

490021002
ref: 8

GUIDE,EXHAUST VALVE

€ 16.00

9

920041069
ref: 9

STUD,8X30

€ 4.50

10

92066017
ref: 10

PLUG,CAMSHAFT,14X7

€ 15.00

11

92015076
ref: 11

NUT,FLANGED CAP,10MM

€ 9.00

12

92022215
ref: 12
COPPER

WASHER,10.5X22X1.6

€ 6.00

13

411B1000
ref: 13
STEEL

WASHER-PLAIN,10MM

€ 0.50

14

11004076
ref: 14

GASKET, CYLINDER HEAD (MCA)

€ 58.50

15

16065029
ref: 15

HOLDER,CARBURETOR,LH

€ 67.00

16

16065029
ref: 16

HOLDER,CARBURETOR,LH

€ 67.00

17

16065028
ref: 17

HOLDER,CARBURETOR,RH

€ 67.00

18

16065028
ref: 18

HOLDER,CARBURETOR,RH

€ 67.00

19

92068006
ref: 19

RUBBER PLUG

€ 2.50

20

220B0618
ref: 20

SCREW-PAN HEAD,6X18

€ 2.50

21

92037077
ref: 21

CLAMP,HOLDER

€ 7.00

22

92011037
ref: 22

SCREW,PAN HEAD 5X25

€ 2.50
