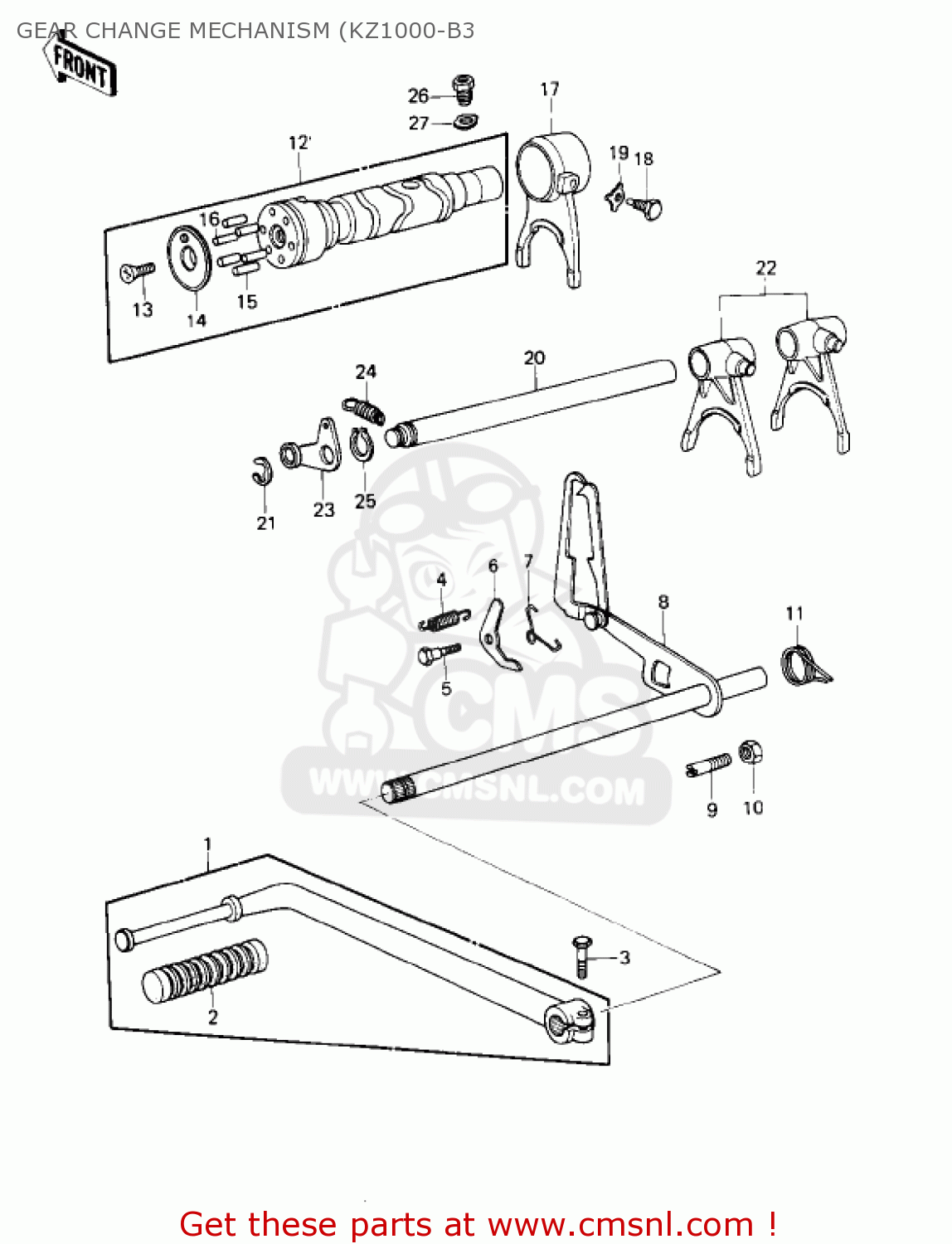

GEAR CHANGE MECHANISM (KZ1000-B3

KZ1000B3 KZ1000 LTD 1979 USA CANADA

Gear change mechanism (kz1000-b3 diagram KZ1000B3 KZ1000 LTD 1979 USA CANADA

GEAR CHANGE MECHANISM (KZ1000-B3 KZ1000B3 KZ1000 LTD 1979 USA CANADA

GEAR CHANGE MECHANISM (KZ1000-B3 KZ1000B3 KZ1000 LTD 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

13242006
ref: 1

LEVER-ASSY-CHANGE,PED

€ 28.50

2

13157004
ref: 2

RUBBER-CHANGE PEDAL

€ 4.00

3

112N0620
ref: 3

BOLT-UPSET

€ 1.00

4

92081051
ref: 4

SPRING-CHNG DRUM LEV

€ 2.50

5

921501450
ref: 5

BOLT,CHANGE DRUM LEVE

€ 2.50

6

13168024
ref: 6

LEVER-GEAR CHNG DRUM

€ 5.50

7

92083018
ref: 7

SPRING-KICK PAWL

€ 6.00

8

13161029
ref: 8

LEVER-COMP-CHANGE SHA

€ 79.00

9

92043057
ref: 9

PIN-CHANGE PEDAL SPRG

€ 6.00

10

312B0800
ref: 10

NUT,8MM

€ 0.50

11

92083028
ref: 11

SPRING,CHG PEDL RTRN

€ 9.50

12

132391015
ref: 12

DRUM ASSY,GEAR CHANGE

€ 388.50

13

221B0620
ref: 13

SCREW-CNTSNK HD,6X20

€ 0.50

14

130911088
ref: 14

HOLDER,CHANGE DRUM PI

€ 18.50

15

92042014
ref: 15
L = 158M/M

PIN-GEAR CHANGE DRUM

€ 0.50

16

92042020
ref: 16
L = 178M/M

PIN-GEAR CHANGE DRUM

€ 3.00

17

13140046
ref: 17

FORK-SHIFT,3RD

€ 124.50

18

92043016
ref: 18

PIN,SELECT FORK GUIDE

€ 12.50

19

92031001
ref: 19

WASHER,LOCK,10MM

€ 7.00

20

490471006
ref: 20

ROD,SHIFT

€ 20.00

21

480J1200
ref: 21

CIRCLIP-TYPE-C,12MM

€ 0.50

22

13140045
ref: 22

FORK-SHIFT,4TH&TOP

€ 190.00

23

132361005
ref: 23

LEVER ASSY,CHANGE DRU

€ 7.50

24

92081051
ref: 24

SPRING-CHNG DRUM LEV

€ 2.50

25

482J6000
ref: 25

CIRCLIP-TYPE-E,6MM

€ 0.50

26

92001112
ref: 26

BOLT-CHG DRUM POSITN

€ 36.50

27

92024047
ref: 27

WASHER-LOCK

€ 2.50
