IGNITION ('77-'78 B1/B2)

KZ1000B3 KZ1000 LTD 1979 USA CANADA

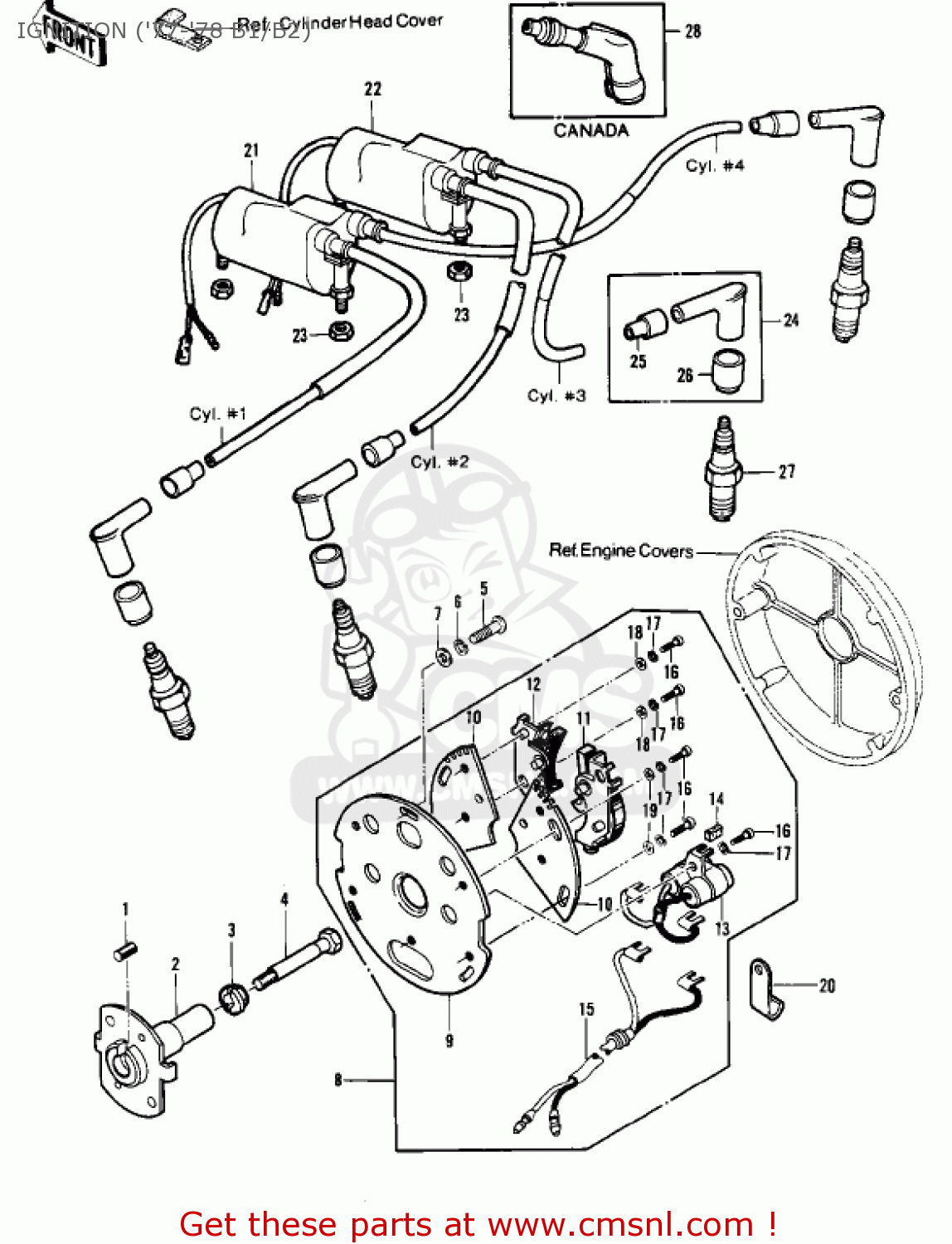

Ignition ('77-'78 b1/b2) diagram KZ1000B3 KZ1000 LTD 1979 USA CANADA

IGNITION ('77-'78 B1/B2) KZ1000B3 KZ1000 LTD 1979 USA CANADA

IGNITION ('77-'78 B1/B2) KZ1000B3 KZ1000 LTD 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

555A0408
ref: 1

PIN-SPRING,4X8

€ 2.50

2

21148010
ref: 2
KZ1000-B1

GOVERNOR-BREAKER

€ 132.00

2

211481003
ref: 2
KZ1000-B2

GOVERNOR-BREAKER

€ 141.50

3

92022244
ref: 3

WASHER,BREAKER GOVERN

€ 9.50

4

92001113
ref: 4

BOLT,SPARK ADVANCER

€ 19.50

5

220B0512
ref: 5

SCREW-PAN-CROS

€ 0.50

6

461F0500
ref: 6

WASHER-SPRING,5MM

€ 0.50

7

411B0500
ref: 7

WASHER-PLAIN,5MM

€ 0.50

8

21135011
ref: 8

BREAKER,CONTACT

€ 182.50

9

21021004
ref: 9

PLATE,CONTACT BREAKER

€ 39.50

10

21156010
ref: 10

PLATE,CONTACT BREAKER

€ 12.00

11

21008027
ref: 11
"L" MARK

BREAKER,CONTACT

€ 43.00

12

21008028
ref: 12
"R" MARK

BREAKER,CONTACT

€ 43.00

13

21013035
ref: 13

CONDENSER

€ 41.50

14

21019005
ref: 14

BRUSH,OIL

€ 3.00

15

21029037
ref: 15

WIRING HARNESS,MAIN

€ 34.50

16

220B0408
ref: 16

SCREW-PAN-CROS

€ 0.50

17

461F0400
ref: 17

WASHER-SPRING,4MM

€ 0.50

18

410B0400
ref: 18

WASHER-PLAIN-SMALL,4M

€ 0.50

19

410B0400
ref: 19

WASHER-PLAIN-SMALL,4M

€ 0.50

19

410B0400
ref: 19

WASHER-PLAIN-SMALL,4M

€ 0.50

20

21120008
ref: 20

UNAVAILABLE IN PRICE BOOK

€ 0.00

21

211211003
ref: 21
CYL NOS 1 & 4

COIL-IGNITION,#1&4

€ 229.50

22

211211004
ref: 22
CYL NOS 2 & 3

COIL-IGNITION,#2&3

€ 221.50

23

92017014
ref: 23

NUT,LOCK,6MM

€ 4.00

24

211601014
ref: 24
USA

CAP-ASSY-PLUG

€ 27.00

25

21132005
ref: 25
USA

GROMMET,SPARK PLUG CP

€ 2.50

26

21131004
ref: 26
USA

GROMMET,PLUG CAP

€ 7.00

27

B8ESA
ref: 27

NGK SPARK-PLUG B8ES

€ 3.00

27

B8ESA
ref: 27

NGK SPARK-PLUG B8ES

€ 3.00

27

W24ESUA
ref: 27

SPARK PLUG,W24ES-U

€ 1.50

28

21160005
ref: 28
CANADA

CAP-ASSY-PLUG

€ 29.00
