CHASSIS ELECTRICAL EQUIPMENT ('7

KZ1000B3 KZ1000 LTD 1979 USA CANADA

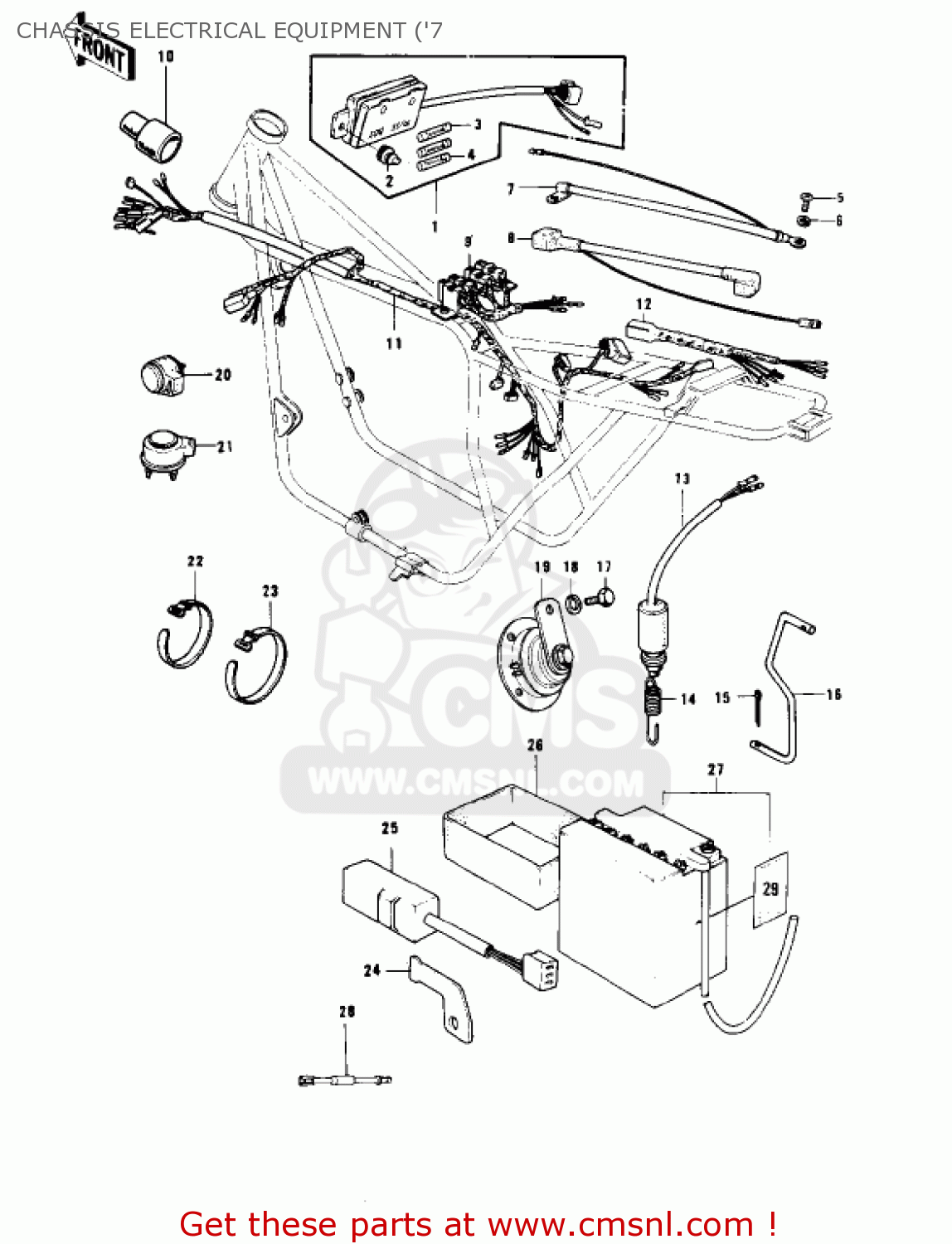

Chassis electrical equipment ('7 diagram KZ1000B3 KZ1000 LTD 1979 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000B3 KZ1000 LTD 1979 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000B3 KZ1000 LTD 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

26004035
ref: 1

FUSE-ASSY

€ 53.50

2

92075279
ref: 2

DAMPER,FUSE

€ 3.50

3

26006005
ref: 3

FUSE 20A

€ 3.50

4

26006003
ref: 4

FUSE 10A

€ 3.00

5

9200137
ref: 5

UNAVAILABLE IN PRICE BOOK

€ 0.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

26010054
ref: 7

WIRE-LEAD,BATTERY GRO

€ 17.00

8

26010053
ref: 8

WIRE-LEAD,STARTER MOT

€ 18.50

9

26002057
ref: 9

WIRING HARNESS,CENTER

€ 101.50

10

26009003
ref: 10

COVER-WIRING HARNESS

€ 2.00

11

260011003
ref: 11

WIRING HARNESS,MAIN

€ 230.00

12

26002031
ref: 12

HARNESS,RR

€ 36.50

13

27010017
ref: 13

SWITCH,BRAKE LAMP

€ 23.50

14

27011009
ref: 14

SPRING-BRAKE LAMP SW

€ 4.50

15

550D1610
ref: 15

PIN-COTTER,1.6X10

€ 2.00

16

27012010
ref: 16

HOOK,BRAKE LAMP SWITC

€ 9.00

17

115G0816
ref: 17

BOLT-HEX,HEAD 8X16

€ 0.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

270031006
ref: 19

HORN

€ 99.00

20

27002011
ref: 20

RELAY-ASSY,TURN SIGNA

€ 69.50

21

27002016
ref: 21

RELAY-ASSY,HAZARD

€ 26.50

22

92072030
ref: 22
L = 123 M/M

BAND,SHORT

€ 3.00

23

92072056
ref: 23
L = 186 M/M

BAND,RUBBER

€ 3.00

24

32060014
ref: 24

BRACKET,OUTAGE SWITCH

€ 7.50

25

28019001
ref: 25

SWITCH,OUTAGE INDICTR

€ 46.00

26

32099015
ref: 26

CASE,BATTERY

€ 9.00

27

26012043
ref: 27
YB 14

BATTERY, 12V 13AH

€ 101.50

27

26012049
ref: 27
FOR CANADIAN

BATTERY, 12V 13AH

€ 101.50

28

21066026
ref: 28

REGULATOR-VOLTAGE

€ 13.00

29

560401036
ref: 29

WARNING, BATTERY

€ 2.00
