CRANKCASE BOLT & STUD PATTERN ('

KZ1000B3 KZ1000 LTD 1979 USA CANADA

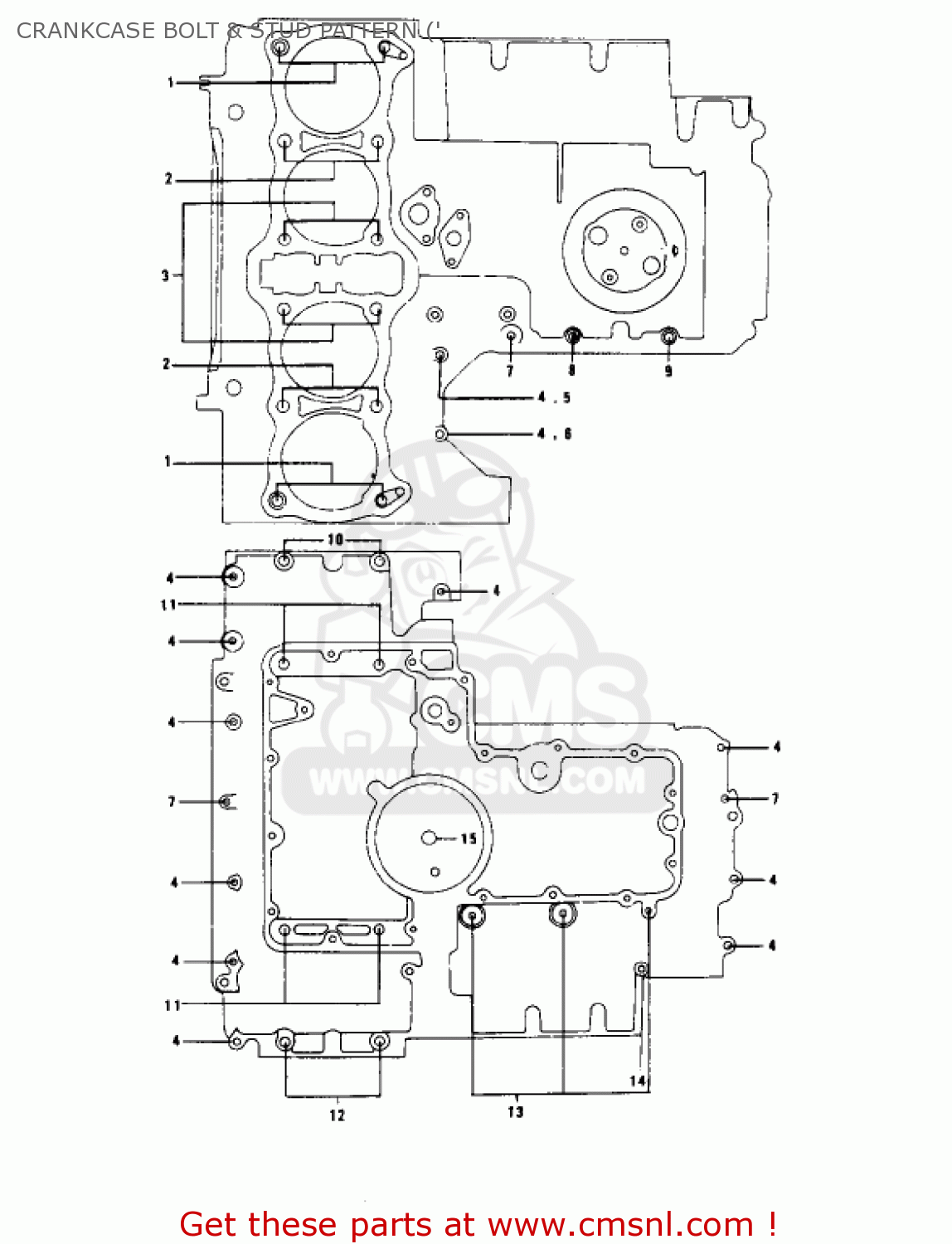

Crankcase bolt & stud pattern (' diagram KZ1000B3 KZ1000 LTD 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

920041003
ref: 1

STUD, 10X158

€ 10.50

920041004
ref: 2

STUD, 10X133

€ 11.50

920041002
ref: 3

STUD, 10X167

€ 10.50

92003109
ref: 4

BOLT-HEX HEAD,6X41

€ 5.50

21126008
ref: 5

CLAMP,WIRING HARNESS

€ 3.00

410B0600
ref: 6

WASHER-PLAIN-SMALL,6M

€ 0.50

92003110
ref: 7

BOLT-HEX HEAD,6X54

€ 1.50

92003111
ref: 8

BOLT-HEX HEAD,6X99

€ 2.00

92003113
ref: 9

BOLT-HEX HEAD,6X116

€ 3.00

130P0895
ref: 10

BOLT-FLANGED,8X95

€ 7.00

92003107
ref: 11

BOLT-HEX HEAD,8X72

€ 10.00

92003108
ref: 12

BOLT-HEX HEAD,8X81

€ 4.50

130G0695
ref: 13

BOLT-FLANGED,6X95

€ 3.50

130G0670
ref: 14

BOLT-FLANGED,6X70

€ 0.50

92055048
ref: 15

RING-O,OD=18

€ 3.00
