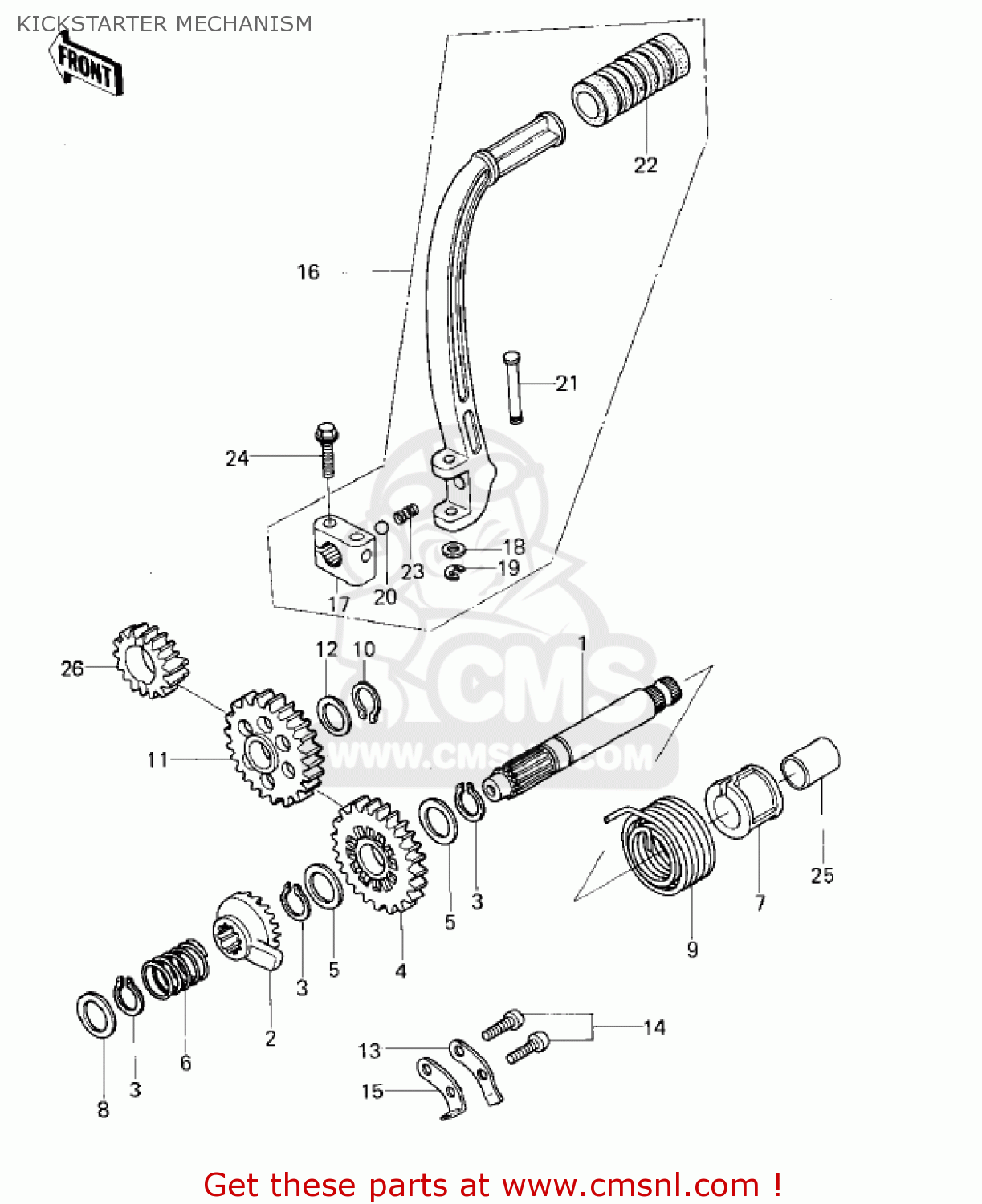

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

130661008
ref: 1

SHAFT,KICK

€ 49.00

2

130781001
ref: 2

RATCHET

€ 44.50

3

480J1600
ref: 3

CIRCLIP-TYPE-C,16MM

€ 2.50

4

590511015
ref: 4

GEAR,KICK,31T

€ 26.00

5

92022315
ref: 5

WASHER, 16.8X22X0.5

€ 4.00

6

92081122
ref: 6

SPRING,RATCHET

€ 6.00

7

130701018
ref: 7

GUIDE,KICK

€ 3.50

8

92022269
ref: 8

WASHER,PLAIN

€ 1.00

9

920811108
ref: 9

SPRING,KICK

€ 8.50

10

480J1400
ref: 10
KX80-A1

CIRCLIP-TYPE-C,14MM

€ 3.00

10

480J1500
ref: 10
KX80-A2~

CIRCLIP-TYPE-C,15MM

€ 1.00

11

590511014
ref: 11

GEAR,IDLE,31T

€ 31.50

12

920261035
ref: 12

SPACER,15X21X0.5

€ 2.00

13

132061002
ref: 13

GUIDE-KICK

€ 5.50

14

220B0616
ref: 14

SCREW-PAN HEAD,6X16

€ 2.50

15

320851027
ref: 15

STOPPER,KICKSTARTER

€ 5.50

16

130641010
ref: 16

PEDAL ASSY,KICK

€ 248.50

17

130611021
ref: 17

BOSS,KICK PEDAL

€ 31.50

18

410B0600
ref: 18

WASHER-PLAIN-SMALL,6M

€ 0.50

19

482K5000
ref: 19

CIRCLIP,5MM

€ 2.00

20

600A0800
ref: 20

BALL-STEEL,1/4

€ 0.50

21

920431050
ref: 21

PIN,6X36

€ 8.50

22

920751021
ref: 22

RUBBER,KICK PEDAL

€ 7.50

23

92081020
ref: 23

SPRING-KICK PEDAL

€ 2.50

24

920011352
ref: 24

BOLT,FLANGED,6X22

€ 2.50

25

490061023
ref: 25

BOOT,KICK SHAFT

€ 2.00

26

590511013
ref: 26

GEAR,KICK PINION,18T

€ 26.00
