CARBURETOR (KX80-A1)
KX80-A1 KX80 1979

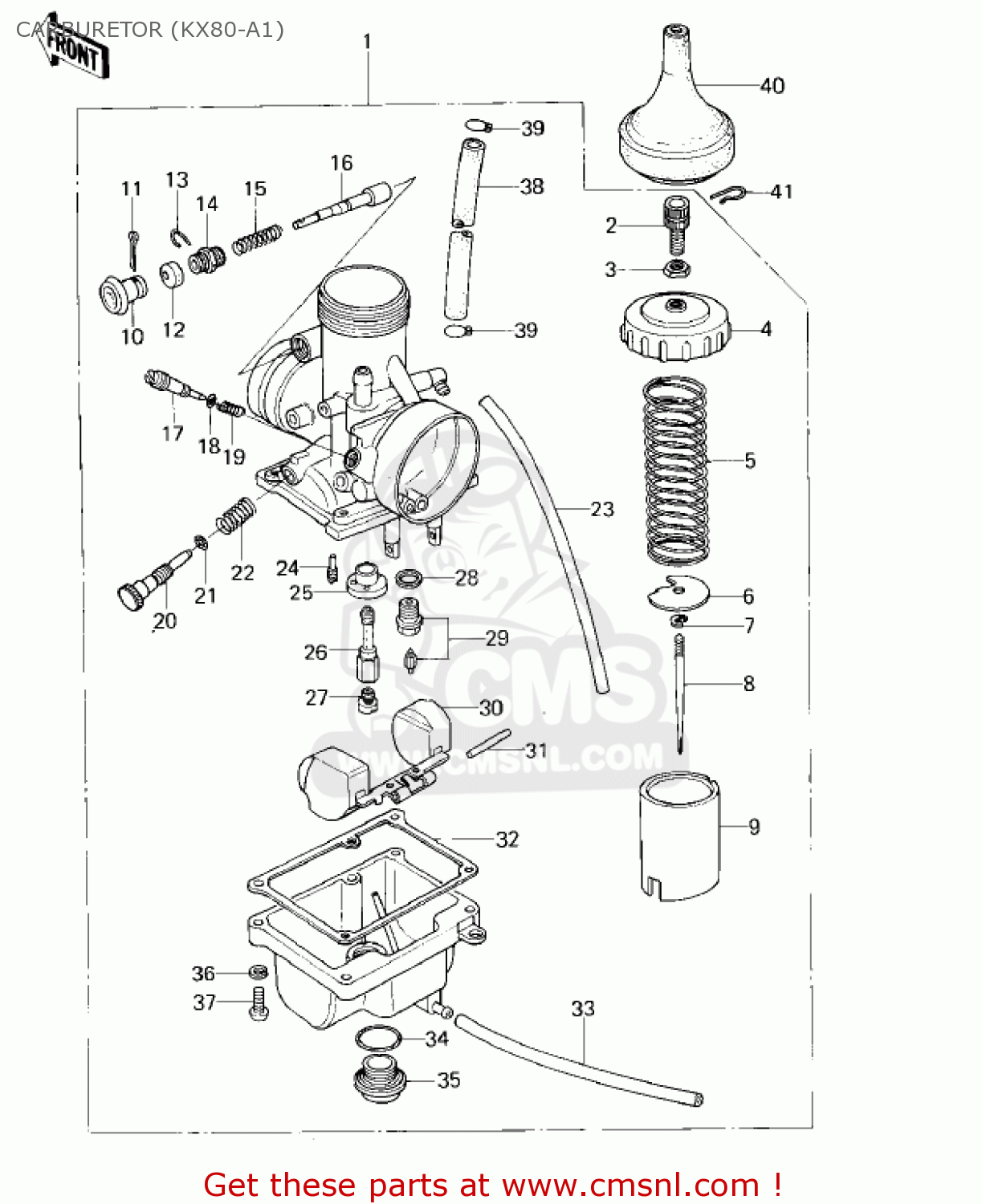

Carburetor (kx80-a1) diagram KX80-A1 KX80 1979
CARBURETOR (KX80-A1) KX80-A1 KX80 1979
×
prices are in EUR
ref
part #
description
quantity
1
160011096
ref: 1
CARBURETOR ASSY
€ 182.00
2
16002011
ref: 2
CABLE ADJUSTER
€ 9.50
3
16003006
ref: 3
NUT-CABLE ADJUST LOCK
€ 4.50
4
16004025
ref: 4
CAP,MIXING CHAMBER
€ 23.50
5
16006023
ref: 5
SPRING,THROTTLE VALV
€ 10.00
6
16007023
ref: 6
SPRING SEAT,THRTL VL
€ 7.00
7
16008010
ref: 7
CLAMP,E-TYPE
€ 5.00
8
160091034
ref: 8
JET NEEDLE,4J28
€ 24.00
9
160251028
ref: 9
VALVE-THROTTLE,CA1.5
€ 77.50
10
920771009
ref: 10
KNOB,STARTER PLUNGER
€ 6.00
11
550D1615
ref: 11
PIN-COTTER,1.6X15
€ 1.50
12
16036012
ref: 12
BOOT,STARTER PLUNGER
€ 4.50
13
920371077
ref: 13
CLAMP
€ 3.00
14
16012021
ref: 14
CAP-STARTER PLUNGER
€ 11.50
15
16013011
ref: 15
SPRING,STARTER PLUNGR
€ 6.00
16
160161004
ref: 16
PLUNGER,STARTER
€ 32.50
17
160141013
ref: 17
SCREW-PILOT AIR
€ 9.00
18
16038022
ref: 18
GASKET,O-RING
€ 4.50
19
920811153
ref: 19
SPRING,AIR SCREW
€ 3.00
20
160211012
ref: 20
SCREW-THROTTLE STOP
€ 10.50
21
92055044
ref: 21
'O' RING
€ 7.00
22
920811152
ref: 22
SPRING,THROTTLE ADJST
€ 4.00
23
920591755
ref: 23
TUBE,3X5X300
€ 6.00
24
920641023
ref: 24
JET-PILOT,#35
€ 12.50
25
160651020
ref: 25
HOLDER,NEEDLE JET
€ 12.50
26
160171037
ref: 26
NEEDLE JET,O-0
€ 21.00
27
92063103
ref: 27
MAIN JET,#132.5R
€ 8.50
27
920631100
ref: 27
OPTION
JET-MAIN,#A127.5
€ 9.50
27
92063057
ref: 27
OPTION
MAIN JET,#130R
€ 9.50
27
92063104
ref: 27
OPTION
JET-MAIN,#135R
€ 8.50
27
920631087
ref: 27
OPTION
JET-MAIN,#A137.5
€ 11.50
28
16029004
ref: 28
WASHER-FLOAT VLV SEAT
€ 2.50
29
160301004
ref: 29
VALVE-FLOAT,#2.6
€ 30.50
30
160311005
ref: 30
FLOAT
€ 39.00
31
16032003
ref: 31
FLOAT PIN
€ 4.00
32
110091147
ref: 32
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
33
920591755
ref: 33
TUBE,3X5X300
€ 6.00
34
920551061
ref: 34
ORING,MAIN JET COVR
€ 5.50
35
160491001
ref: 35
COVER,MAIN JET
€ 18.00
36
461F0400
ref: 36
WASHER-SPRING,4MM
€ 0.50
37
220B0416
ref: 37
SCREW-PAN-CROS
€ 2.00
38
920591080
ref: 38
TUBE,5.3X10.5X155
€ 15.50
39
92037072
ref: 39
CLAMP,TUBE
€ 4.00
40
490061024
ref: 40
BOOT,CARBURETOR
€ 4.50
41
92036018
ref: 41
CIRCLIP
€ 2.50
