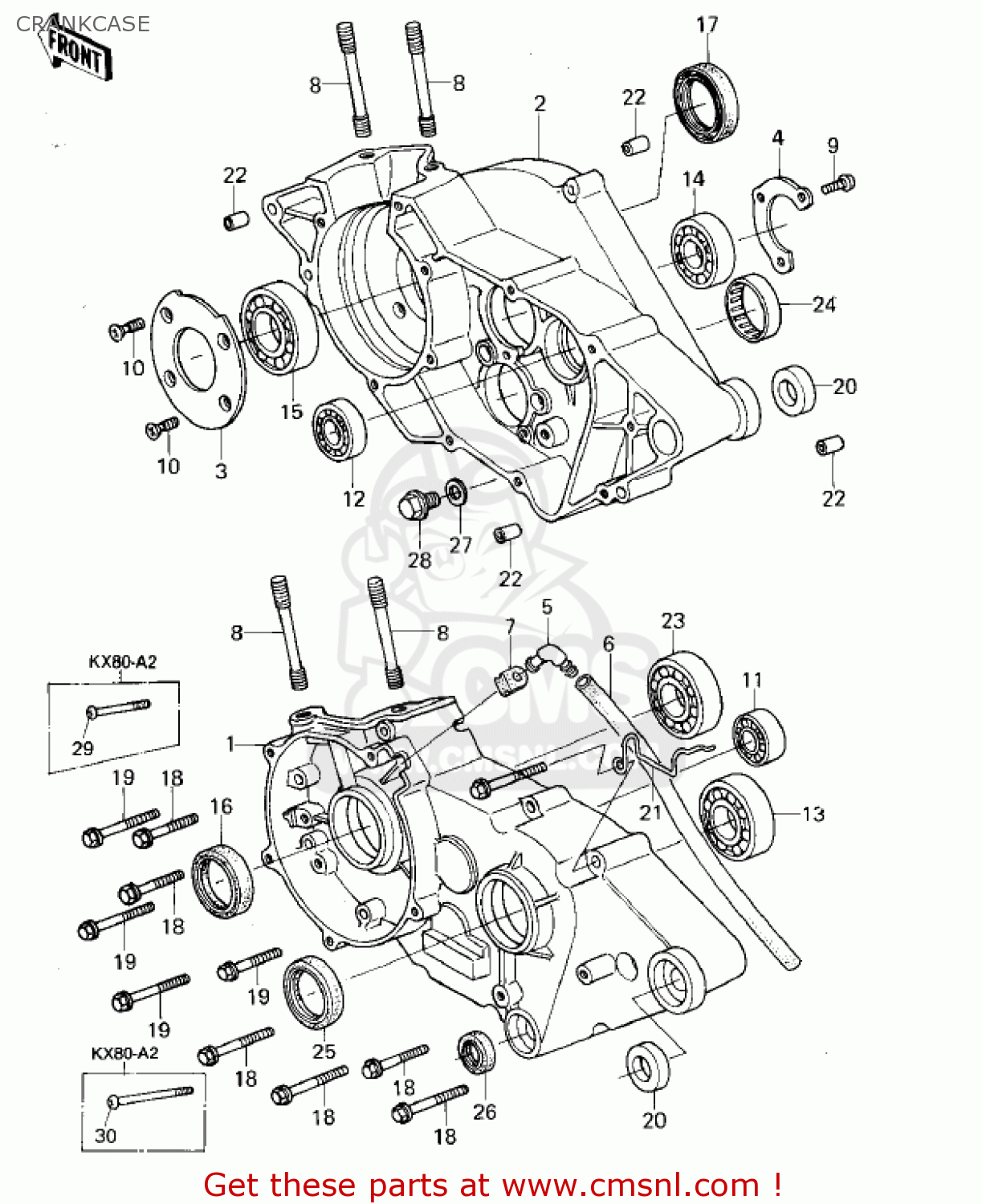

CRANKCASE

ref

part #

description

quantity

1

140021059
ref: 1
KX80-A1

CRANKCASE,L.H.

€ 121.50

1

140021067
ref: 1
KX80-A2~

CRANKCASE,L.H,F.BLACK

€ 121.50

2

140021060
ref: 2
KX80-A1

CRANKCASE,R.H.

€ 115.50

2

140021068
ref: 2
KX80-A2~

CRANKCASE,R.H,F.BLACK

€ 121.50

3

14014017
ref: 3
KX80-A1

PLATE-POSITION

€ 3.50

4

140141010
ref: 4

PLATE,POSITION,DRIVE

€ 1.00

5

140691001
ref: 5

BREATHER

€ 17.50

6

920591372
ref: 6

TUBE,6X9X750

€ 9.00

7

92071042
ref: 7

GROMMET

€ 2.50

8

172G08105
ref: 8
KX80-A1

STUD,8X105

€ 5.50

8

172G08110
ref: 8
KX80-A2~

STUD,8X110

€ 8.50

9

220B0614
ref: 9

SCREW-PAN HEAD,6X14

€ 2.00

10

221B0616
ref: 10
KX80-A1

SCREW-CNTSNK HD,6X16

€ 0.50

11

920451235
ref: 11

BEARING-BALL,6001C3ML

€ 15.50

12

601B6002
ref: 12

BEARING-BALL,#6002C3

€ 16.00

13

601B6004
ref: 13

BEARING-BALL,#6004C3

€ 10.50

14

601B6203
ref: 14

BEARING-BALL,#6203C3

€ 10.50

15

601B6204
ref: 15
KX80-A1

BEARING-BALL,#6204C3

€ 8.00

15

601B6205
ref: 15
KX80-A2~

BEARING-BALL,#6205C3

€ 14.00

16

920491250
ref: 16
KX80-A2

SEAL-OIL

€ 12.00

16

920491240
ref: 16
KX80-A1

SEAL-OIL

€ 10.50

17

653B284008
ref: 17
KX80-A1

OIL SEAL,28X40X8

€ 12.50

17

920491250
ref: 17
KX80-A2~

SEAL-OIL

€ 12.00

18

92001164
ref: 18
KX80-A1

BOLT,6X35

€ 3.50

19

92001165
ref: 19
KX80-A1

BOLT,HEX HEAD,6X45

€ 3.00

20

920271147
ref: 20

COLLAR,12.6X26X7

€ 6.50

21

920371128
ref: 21

CLAMP,TUBE

€ 5.50

22

92042007
ref: 22

PIN-DOWEL

€ 4.00

23

920451026
ref: 23
KX80-A1

BEARING,B,EC-6204C3

€ 22.50

23

601B6205
ref: 23
KX80-A2~

BEARING-BALL,#6205C3

€ 14.00

24

92046051
ref: 24
KX80-A1

BEARING-NEEDLE,37BTM4

€ 23.00

25

92050013
ref: 25

OIL SEAL SC25376

€ 9.50

26

92051005A
ref: 26

OIL SEAL,TB13225.5

€ 5.50

27

92065058
ref: 27

GASKET, 10,5X16X1 (NAS)

€ 2.50

28

920661241
ref: 28

PLUG

€ 4.00

29

220C0645
ref: 29
KX80-A2~

SCREW-PAN-CROS,6X45,B

€ 2.50

30

220C0635
ref: 30
KX80-A2~

SCREW-PAN-CROS,6X35,B

€ 3.50
