FRONT FORK
KX80-A1 KX80 1979

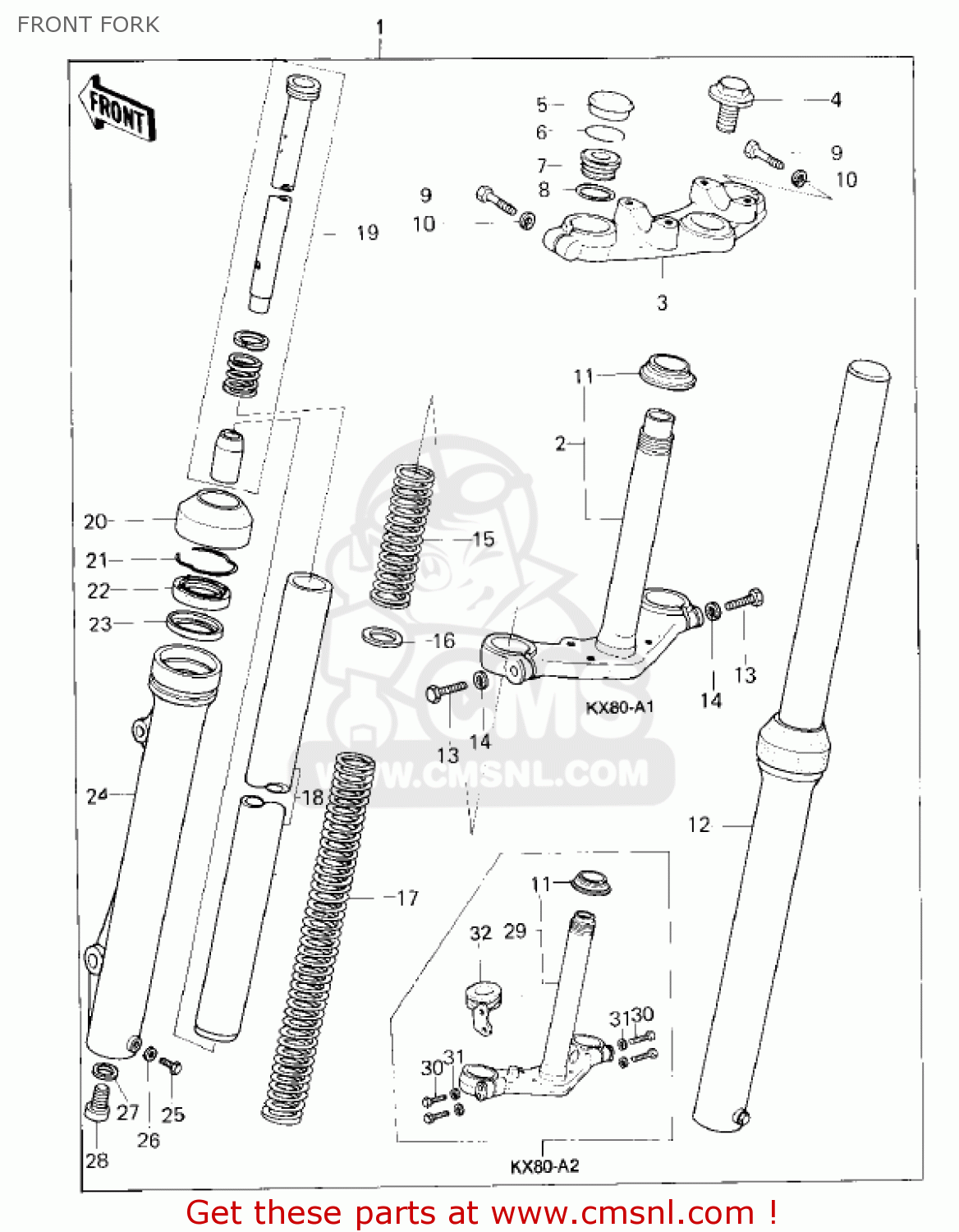

Front fork diagram KX80-A1 KX80 1979
FRONT FORK KX80-A1 KX80 1979
×
prices are in EUR
ref
part #
description
quantity
1
440011043
ref: 1
KX80-A1
FRONT FORK ASSY
€ 653.00
1
440011122
ref: 1
KX80-A2~
FRONT FORK ASSY
€ 561.50
2
440371011
ref: 2
KX80-A1
STEM,STEERING
€ 80.00
3
440391016
ref: 3
HEAD,STEERING STEM
€ 72.50
4
920011318
ref: 4
BOLT,STEERING STEM
€ 15.50
5
110121067
ref: 5
CAP,RUBBER,FORK TOP
€ 4.00
6
44044023
ref: 6
CIRCLIP
€ 3.50
7
44029022
ref: 7
GUIDE, FORK SPRING
€ 8.00
8
44046025
ref: 8
'O' RING, FORK
€ 4.00
9
920011063
ref: 9
BOLT,HEX HEAD,8X40
€ 6.50
10
461F0800
ref: 10
WASHER-SPRING,8MM
€ 0.50
11
92047010
ref: 11
CONE-STERNG BERG LOW
€ 10.00
12
440061019
ref: 12
KX80-A1
TUBE,R.H,FORK OUTER
€ 66.50
12
440061040
ref: 12
KX80-A2~
TUBE,R.H.FORK OUTER
€ 60.50
13
920011252
ref: 13
BOLT,HEX HEAD,10X35
€ 3.50
14
461F1000
ref: 14
KX80-A1
WASHER-SPRING,10MM
€ 0.50
15
440261025
ref: 15
SPRING,FORK INNER,UPP
€ 5.50
15
440261047
ref: 15
KX80-A2~
SPRING,FORK INNER,UP
€ 5.50
16
440281002
ref: 16
GUIDE,FORK SPRING
€ 2.50
17
440261023
ref: 17
KX80-A1
SPRING,FORK INNER,LOW
€ 14.00
17
440261046
ref: 17
KX80-A2~
SPRING,FORK INNER,LOW
€ 10.50
18
440131016
ref: 18
KX80-A1
TUBE,FORK INNER
€ 83.50
18
440131031
ref: 18
KX80-A2~
TUBE,FORK INNER
€ 56.00
19
440221017
ref: 19
KX80-A1
CYLINDER,FORK
€ 18.50
19
440221035
ref: 19
KX80-A2~
CYLINDER,FORK
€ 18.00
20
920931019
ref: 20
DUST SHIELD,FORK OUT
€ 11.50
21
920331028
ref: 21
CIRCLIP,FORK OUTER
€ 3.00
22
920491069
ref: 22
OIL SEAL
€ 13.00
23
920261041
ref: 23
SPACER,FORK OUTER
€ 3.00
24
440051019
ref: 24
KX80-A1
TUBE,L.H,FORK OUTER
€ 72.50
24
440051040
ref: 24
KX80-A2~
TUBE,L.H.FORK OUTER
€ 77.50
25
110B0608
ref: 25
BOLT-HEX HEAD,6X8
€ 0.50
26
44045047
ref: 26
GASKET,DRAIN PLUG (NAS)
€ 6.00
27
44045051
ref: 27
GASKET,FORK CYLINDER (NAS)
€ 4.00
28
44041078
ref: 28
BOLT, FORK CYLINDER
€ 6.50
29
440371037
ref: 29
KX80-A2~
STEM,STEERING
€ 79.00
30
920011063
ref: 30
KX80-A2~
BOLT,HEX HEAD,8X40
€ 6.50
31
461F0800
ref: 31
KX80-A2~
WASHER-SPRING,8MM
€ 0.50
32
920721039
ref: 32
KX80-A2~
BAND,CABLE
€ 10.00
