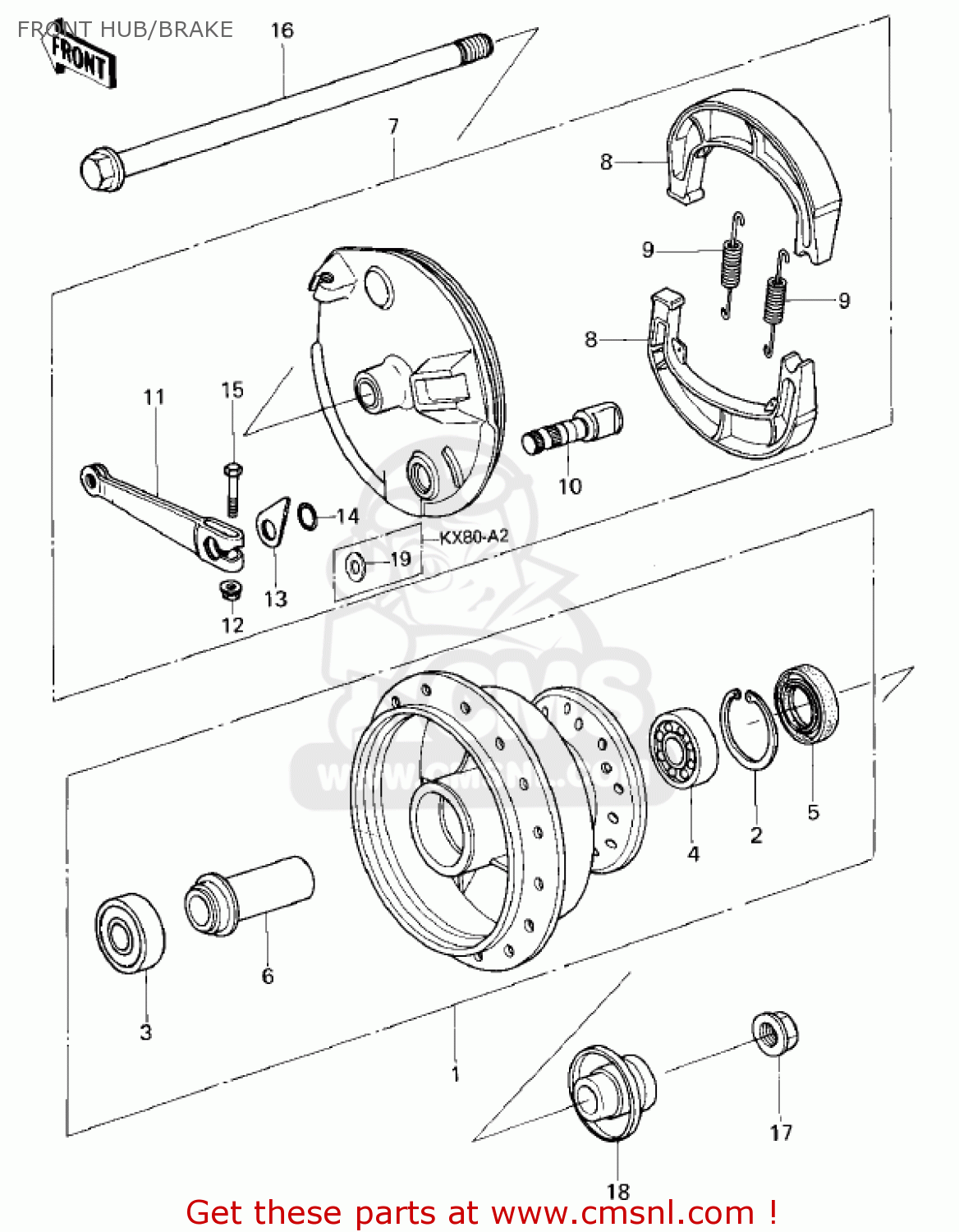

FRONT HUB/BRAKE

ref

part #

description

quantity

1

410341013
ref: 1

DRUM ASSY,FRONT BRAKE

€ 107.50

2

481J3500
ref: 2

CIRCLIP-TYPE-C,35MM

€ 1.00

3

601B6200U
ref: 3

BEARING-BALL,6200LUC3

€ 16.50

4

601B6300
ref: 4

BEARING-BALL,#6300C3

€ 13.00

5

654A203507
ref: 5

OIL SEAL,20X35X7

€ 7.50

6

920271093
ref: 6

COLLAR,FR BRKE DRUM

€ 7.50

7

410351037
ref: 7
KX80-A1

PANEL ASSY,FLONT BRAK

€ 158.50

7

410351037
ref: 7
KX80-A2~

PANEL ASSY,FLONT BRAK

€ 158.50

8

410481021
ref: 8

SHOE,BRAKE (MCA)

€ 12.50

9

920811766
ref: 9

SPRING,BRAKE SHOE

€ 5.50

10

410501009
ref: 10

CAM,BRAKE,FRONT

€ 11.50

11

410531011
ref: 11

LEVER,BRAKE CAM,FRONT

€ 36.00

12

41072007
ref: 12

NUT,6MM

€ 2.50

13

410851002
ref: 13
KX80-A1

INDICATOR,BRAKE SHOE

€ 3.50

14

670B2012
ref: 14

O RING,12MM

€ 1.00

15

920011135
ref: 15

BOLT,HEX HEAD,6X30

€ 3.00

16

410681011
ref: 16

AXLE,FR,10X191

€ 23.50

17

920151415
ref: 17
KX80-A1

NUT,10MM

€ 3.00

17

920151415
ref: 17
KX80-A2~

NUT,10MM

€ 3.00

18

920271094
ref: 18

COLLAR,FRONT AXLE

€ 12.00

19

92022257
ref: 19
KX80-A2~

WASHER

€ 9.00
